TASK 72-00-40-020-005-B00 HP System Module - Remove The Partial HP System Module (Vertical), Removal-006

DMC:V2500-A5-72-00-4000-05C-520A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Common Information

TASK 72-00-40-020-005-B00 HP System Module - Remove The Partial HP System Module (Vertical), Removal-006

General

This TASK gives the procedure to remove the partial HP system module in the vertical position. Other related TASKS are:

TASK 72-00-40-560-001 (REMOVAL-005) Turn the LP compressor/intermediate case module and the partial HP system module from the horizontal to the vertical.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Apply the approved CoMat 10-058 PENETRATING OIL before the removal of threaded parts or parts with an interference fit. Let the parts soak before removal.

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
IAE 1F10052 Two cables sling0AM53IAE 1F100521
IAE 1P16043 Lift and turn fixture0AM53IAE 1P160431
IAE 1P16284 Hand wrench0AM53IAE 1P162841
IAE 1R18673 Dummy stub shaft0AM53IAE 1R186731
IAE 1R18075 Support pedestal0AM53IAE 1R180751
IAE 1R18090 Safety support stand0AM53IAE 1R180901
IAE 1R18214 Build stand0AM53IAE 1R182141
IAE 1R18222 Support rod0AM53IAE 1R182222
IAE 1R18230 Wrench0AM53IAE 1R182301
IAE 1R18234 Support rod0AM53IAE 1R182343
IAE 1R18247 Rigging pin0AM53IAE 1R182471
IAE 1R18423 Rigging pin0AM53IAE 1R184231
IAE 1R18893 Riggingpin0AM53IAE 1R188931

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-002 SOLVENT, DELETED.0AM53CoMat 01-002
CoMat 04-005 JOINTING COMPOUND, MEDIUM GRADELOCALCoMat 04-005
CoMat 10-058 PENETRATING OIL0AM53CoMat 10-058

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-40-020-146 Install the Lift and Turn Fixture on to the Rear of the Diffuser Case Assembly

    1. Refer to Figure.

      2. Put the sleeve (part of IAE 1P16043 Lift and turn fixture 1 off) on to the HP compressor shaft.

      1. Put the sleeve on to the HP compressor shaft. Make sure the slots in the end of the sleeve are at the rear.

      2. Push the sleeve down the HP compressor shaft until it touches the No. 4 bearing seal spacer.

      3. Engage the fixture nut on to the thread on the end of the HP compressor shaft and tighten the nut. Use IAE 1P16284 Hand wrench 1 off.

      3. Install the Fixture assembly on to the Diffuser case rear flange.

      1. Make sure the eight thumb screws are below the surface of the fixture assembly bore.

      2. Attach the hoist to the lift eye on IAE 1F10052 Two cables sling 1 off.

      3. Lift the sling. Make sure the lift brackets are in the inner position of the sling.

      4. Attach the hook and bolt plate to the fixture assembly trunnions. Insert the safety clip to safety the fixture assembly.

      5. Lift the fixture assembly. Make sure the fixture flange is at the bottom.

      6. Carefully lower the fixture assembly on to the sleeve. Align the trunnions of the fixture assembly with the HP compressor front cases splitline.

      7. Lower the fixture assembly on to the diffuser case rear flange.

      8. Install the 10 caphead screws and the 10 washers.

      9. Release the hold on the fixture assembly. Do not remove the sling.

      10. Tighten the 10 caphead screws to safety the fixture assembly to the diffuser case rear flange. Tighten the thumb screws.

    2. SUBTASK 72-00-40-020-147 Install the HP Compressor Support Rods

    1. Refer to Figure.

    2. Make sure the variable stator vanes are in the low speed position.

    3. Install IAE 1R18247 Rigging pin 1 off or IAE 1R18423 Rigging pin 1 off or IAE 1R18893 Riggingpin 1 off through the bracket and in to the HP compressor cases to lock the variable stator vanes.

    4. Remove the six bolts and three blanks from the HP compressor front cases.

      1. Turn the adjustment handle to retract the blade of the tool.

      2. Carefully install the support rods through the holes in the HP compressor front case. Make sure the blades are rearwards.

      3. Safety the support rods to the HP compressor front case with the six tool bolts.

      4. Turn the adjustment handle until the blades touch the HP compressor stage 3 disk and lightly tighten.

    3. SUBTASK 72-00-40-020-148 Remove the Bolts from the HP Compressor Stage 3 Disk Curvic Coupling

    1. Refer to Figure.

    2. Use IAE 1R18230 Wrench 1 off to release and remove the curvic bolts from the No. 3 bearing rotor center.

    4. SUBTASK 72-00-40-020-215 Remove the Parts that Attach the LP Compressor/Intermediate Case Module and the HP System Module Joint Flanges (SBE 72-0290)

    1. Refer to Figure.

    2. NOTE

      There is no countersunk hole in the head of the bolts.

      Remove the 37 nuts, the 37 bolts from the joint flange. Do not remove the nuts and the bolts from the positions Y.

    3. Remove the four nuts, the four bolts from the joint flange at the positions Y.

    4. Use an applicable parallel punch to remove the four pins and the four lock plates from the joint flange at the positions Y.

    5. SUBTASK 72-00-40-020-149 Remove the Parts that Attach the LP Compressor/Intermediate Case Module and the HP System Module Joint Flanges (Pre SBE 72-0290)

    1. Refer to Figure.

    2. NOTE

      There is a countersunk hole in the head of the bolts.

      Remove the 37 nuts and the 37 bolts from the joint flange. Do not remove the nuts and the bolts from the positions Y.

    3. Remove the four nuts, the four bolts from the joint flange at the positions Y.

    4. Use an applicable parallel punch to remove the four pins and the four lock plates from the joint flange at the positions Y.

    6. SUBTASK 72-00-40-020-150 Remove the Partial HP System Module from the LP Compressor/Intermediate Case Module

    1. Refer to Figure.

    2. Use the hoist and carefully lift the partial HP system module.

    7. SUBTASK 72-00-40-020-151 Prepare the Partial HP System Module for Interface Inspection

    1. Refer to Figure.

    2. Lower the partial HP system module on to IAE 1R18090 Safety support stand 1 off. The HP compressor front flange must touch the safety support stand pads. Do not release the lift sling hold.

    8. SUBTASK 72-00-40-220-105 Visually Examine the Interfaces

    1. Visually examine the partial HP system module and the LP compressor/intermediate case module at interfaces C-32 and C-41. Refer to TASK 72-00-00-200-002.

    9. SUBTASK 72-00-40-020-152 Install the Dummy Stub Shaft on to the Partial HP System Module

    1. Refer to Figure.

    2. Install the IAE 1R18673 Dummy stub shaft 1 off in to the IAE 1R18075 Support pedestal 1 off. Make sure the curvic protector is at the rear.

      3. Remove the curvic protector from the dummy stub shaft.

      1. NOTE

        The bolts remain with the dummy stub shaft.

        Release the bolts and the nuts from the curvic protector.

      2. Remove the curvic protector.

      4. Clean the curvic teeth on the dummy stub shaft and the HP compressor stage 3 disk.

      1. WARNING

        WHEN YOU USE COMAT 01-002 INHIBITED AND STABLIZED TRICHLOROETHANE YOU MUST USE THE NECESSARY PROTECTIVE CLOTHING. DO NOT GET THE SOLVENT ON YOUR SKIN OR IN YOUR EYES. YOU MUST NOT SMOKE WHEN YOU USE THE SOLVENT AS THE VAPOR CHANGES AND BECOMES TOXIC.

        Use a soft brush and apply CoMat 01-002 SOLVENT, DELETED. to the curvic teeth.

      2. Dry the curvic teeth with a clean dry air blast.

      5. Install the dummy stub shaft on to the partial HP system module.

      1. Align the four tool location pins on the dummy stub shaft with the applicable location hole on the curvic coupling.

      2. Lift the partial HP system module from the safety support stand and position over the build pedestal.

      3. Carefully lower the partial HP system module onto the dummy stub shaft and hold in position.

      4. Safety the dummy stub shaft with the 20 curvic coupling tool bolts.

    10. SUBTASK 72-00-40-020-153 Install the Partial HP System Module on to the Build Stand

    1. Refer to Figure.

      2. Install IAE 1R18222 Support rod 2 off on to the IAE 1R18214 Build stand 1 off.

      1. Align the support ring end faces so that they are adjacent to the two location pins on the build stand.

      2. Secure the support rings with the six build stand/support ring bolts.

    3. Lift the partial HP system module off the pedestal build stand and carefully lower on to the build stand. Make sure the support ring splitline is aligned with the HP compressor front cases splitline. Also align the support ring location pins with the applicable hole in the HP compressor front flange.

    4. Secure the HP compressor front flange to the support ring. Use the six HP compressor/support ring bolts.

    5. Release the hold on the lift sling.

    11. SUBTASK 72-00-40-020-154 Remove the Hoist, the Lift and Turn Fixture and the HP Compressor Support Rods

    1. Refer to Figure and Figure.

      2. Remove the support rods.

      1. Turn the adjustment handles to retract the blade.

      2. Release the six support rod tool bolts.

      3. Remove the support rods.

        4. Install one of the blanks HP COMPRESSOR SPLIT CASE (72-41-31, 01-120), the bracket HP COMPRESSOR SPLIT CASE (72-41-31, 01-118) and two of the bolts HP COMPRESSOR SPLIT CASE (72-41-31, 01-122) in to the HP compressor at location C.

        1. Put a thin layer of CoMat 04-005 JOINTING COMPOUND, MEDIUM GRADE on to the bracket where it touches the blank.

        2. Install the blank, the bracket and the bolts.

        3. Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).

        5. Install one of the blanks HP COMPRESSOR SPLIT CASE (72-41-31, 01-120), the bracket HP COMPRESSOR SPLIT CASE (72-41-31, 01-115) and two of the bolts HP COMPRESSOR SPLIT CASE (72-41-31, 01-122) in the HP compressor at location A.

        1. Put a thin layer of CoMat 04-005 JOINTING COMPOUND, MEDIUM GRADE on the bracket where it touches the blank.

        2. Install the blank, the bracket and the bolts.

        3. Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).

      6. Install the other blank HP COMPRESSOR SPLIT CASE (72-41-31, 01-120) and the other bolts HP COMPRESSOR SPLIT CASE (72-41-31, 01-122) in to the HP compressor at location B. Torque the bolts to 85 to 105 lbf.in (10 to 12 Nm).

      7. Remove the rigging pin.

      3. Remove the lift and turn fixture from the rear of the diffuser case assembly.

      1. Release the thumb screws.

      2. Remove the 10 caphead screws and the 10 washers.

      3. Lift and remove the fixture assembly.

      4. Remove the fixture nut. Use IAE 1P16284 Hand wrench 1 off.

      5. Remove the sleeve.

      6. Put the lift and turn fixture on to a suitable work surface and remove the sling.

      7. Remove the sling from the hoist.

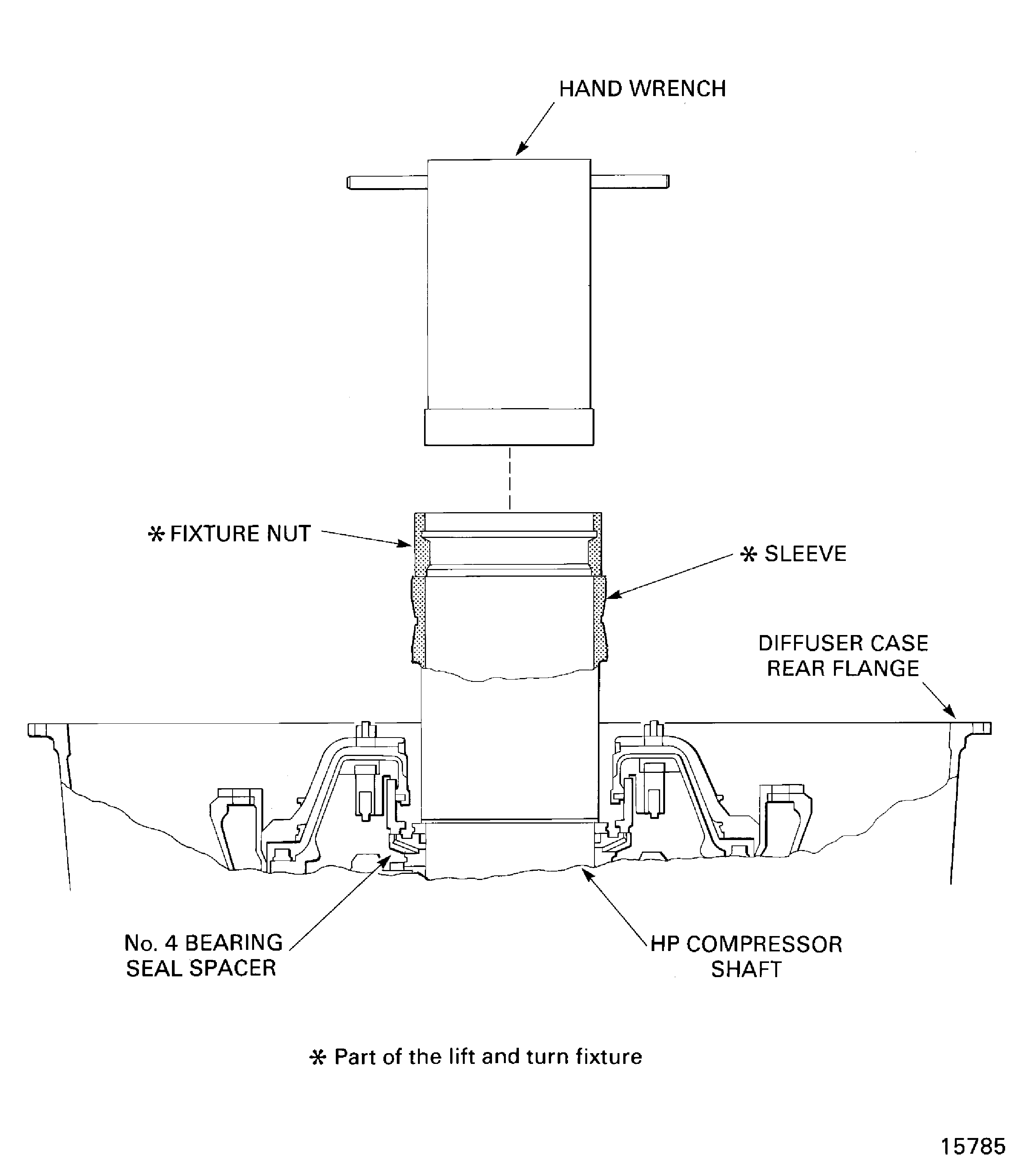

    12. Figure: Install the lift and turn fixture on to the partial HP system module

    Sheet 1

    Legend
    Install the lift and turn fixture on to the partial HP system module

    Sheet 1

    Close

    Figure: Install the lift and turn fixture on to the partial HP system module

    Sheet 2

    Legend
    Install the lift and turn fixture on to the partial HP system module

    Sheet 2

    Close

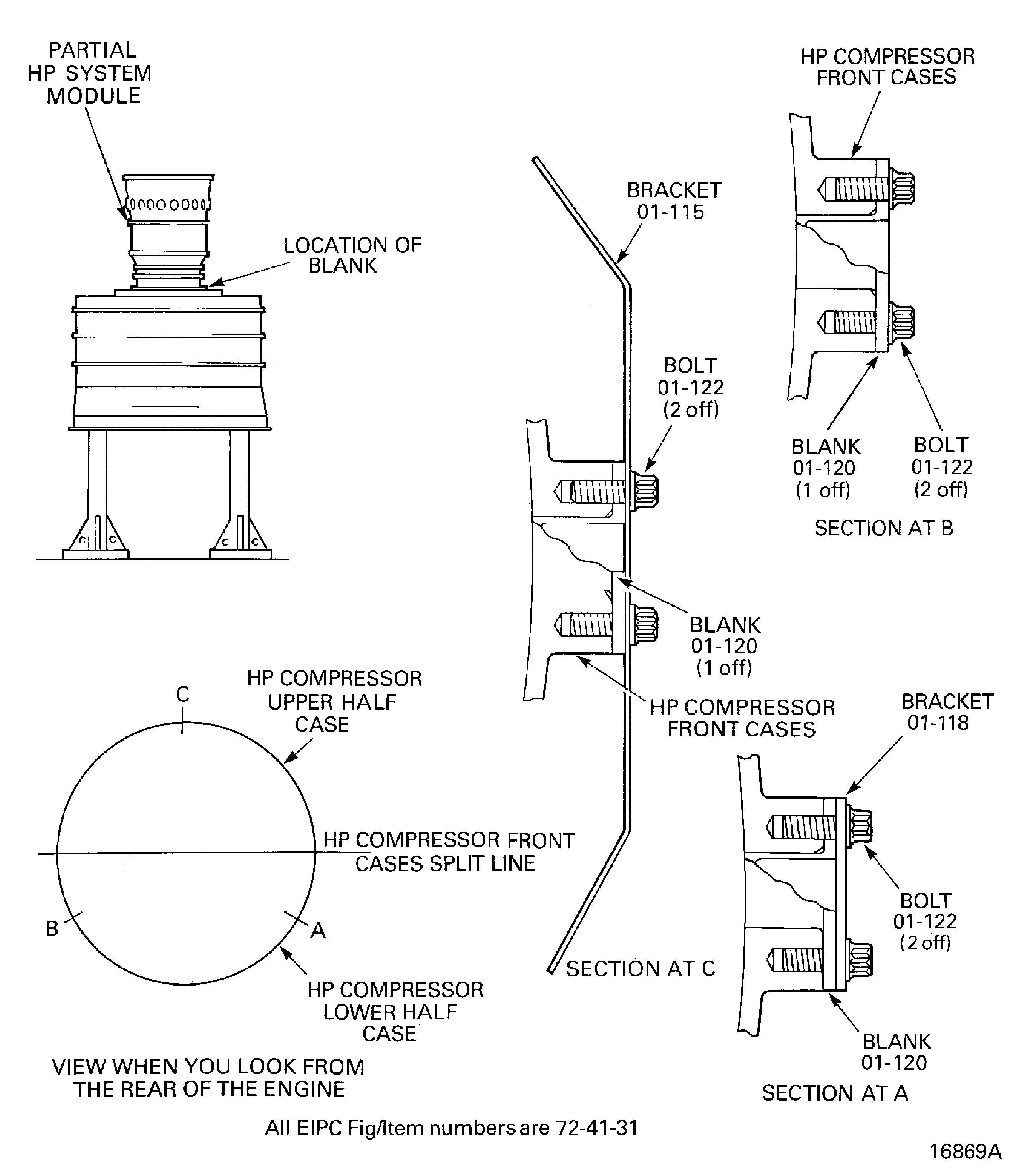

    Figure: Install the support rods in to the HP compressor

    Install the support rods in to the HP compressor

    Figure: Install the support rods in to the HP compressor

    Sheet 2

    Legend
    Install the support rods in to the HP compressor

    Sheet 2

    Close

    Figure: Remove the stage 3 HP compressor curvic bolts

    Remove the stage 3 HP compressor curvic bolts

    Figure: LP compressor/intermediate case module to HP system module joint flange hole positions

    LP compressor/intermediate case module to HP system module joint flange hole positions

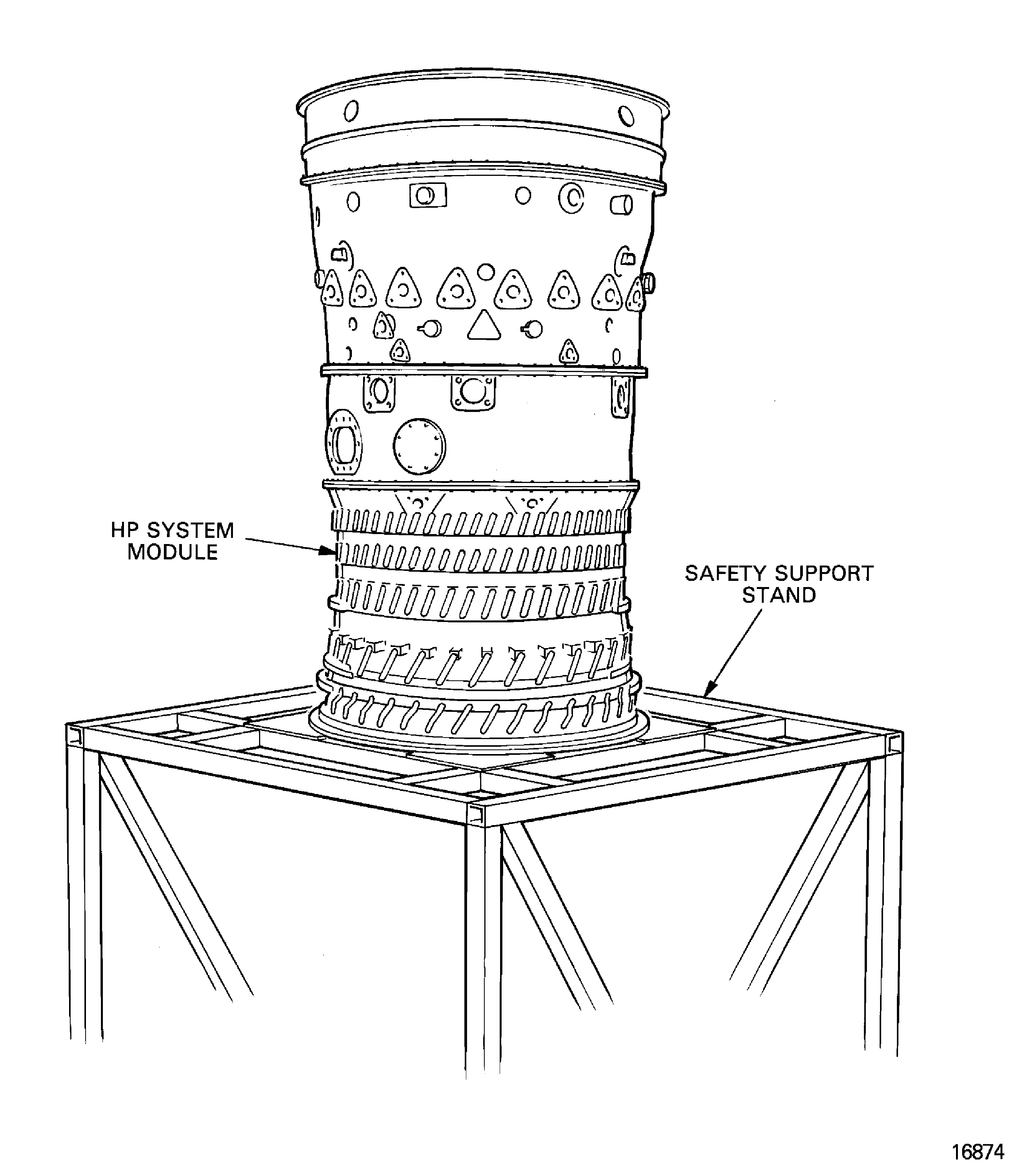

    Figure: Install the partial HP system module on to the safety support stand
