| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72310001 | ENGINE - LP COMPRESSOR (FAN) MODULE | aa | ||
| 001 | 5W0134 | LP COMPRESSOR FAN ROTOR, ASSEMBLY | aa | 1 |
| -100 | 72-31-13 | RING - RETAINING, ASSEMLBY | aa | REF |
| 120 | AS24125 | • BOLT - .3125 DIA X 1.562 U1653 | aa | 36 |
| 140 | AS21114 | • BOLT - MACHINE, DOUBLE HEXAGON - 0.3125 DIA X .875 U1653 | aa | 22 |
| 164 | 5A0136 | • WEIGHT - BALANCE TRIM, 0.106 | aa | 1 |
| 165 | 5A0137 | • WEIGHT - BALANCE TRIM, 0.317 | aa | 1 |
| 166 | 5A0138 | • WEIGHT - BALANCE TRIM, 0.529 | aa | 1 |
| 167 | 5A0139 | • WEIGHT - BALANCE TRIM, 0.882 | aa | 1 |
| 200 | 5A0110 | • WEIGHT - REAR FAN | aa | 1 |
| 201 | 5A0132 | • WEIGHT, BALANCE REAR FAN, .245 OZ | aa | 1 |
| 202 | 5A0133 | • WEIGHT, BALANCE REAR FAN, .460 OZ | aa | 1 |
| 203 | 5A0134 | • WEIGHT, BALANCE REAR FAN, .705 OZ | aa | 1 |
| 250 | 5A0106 | • WEIGHT - BALANCE TRIM, 0.035 | aa | 1 |
| 251 | 5A0107 | • WEIGHT, BALANCE TRIM, .280 OZ | aa | 1 |
| 252 | 5A0127 | • WEIGHT - BALANCE TRIM, 0.705 | aa | 1 |
| 253 | 5A0105 | • WEIGHT, BALANCE TRIM, 2.645 OZ | aa | 1 |
| 254 | 5A0104 | • WEIGHT, BALANCE TRIM, 5.290 OZ | aa | 1 |
| 255 | 5A0103 | • WEIGHT, BALANCE TRIM, 7.935 OZ | aa | 1 |
| 270 | 4W0002 | • NUT , .250 DIA | aa | 1 |
| 275 | AS21014 | • BOLT , .250 DIA X .875 U1653 | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

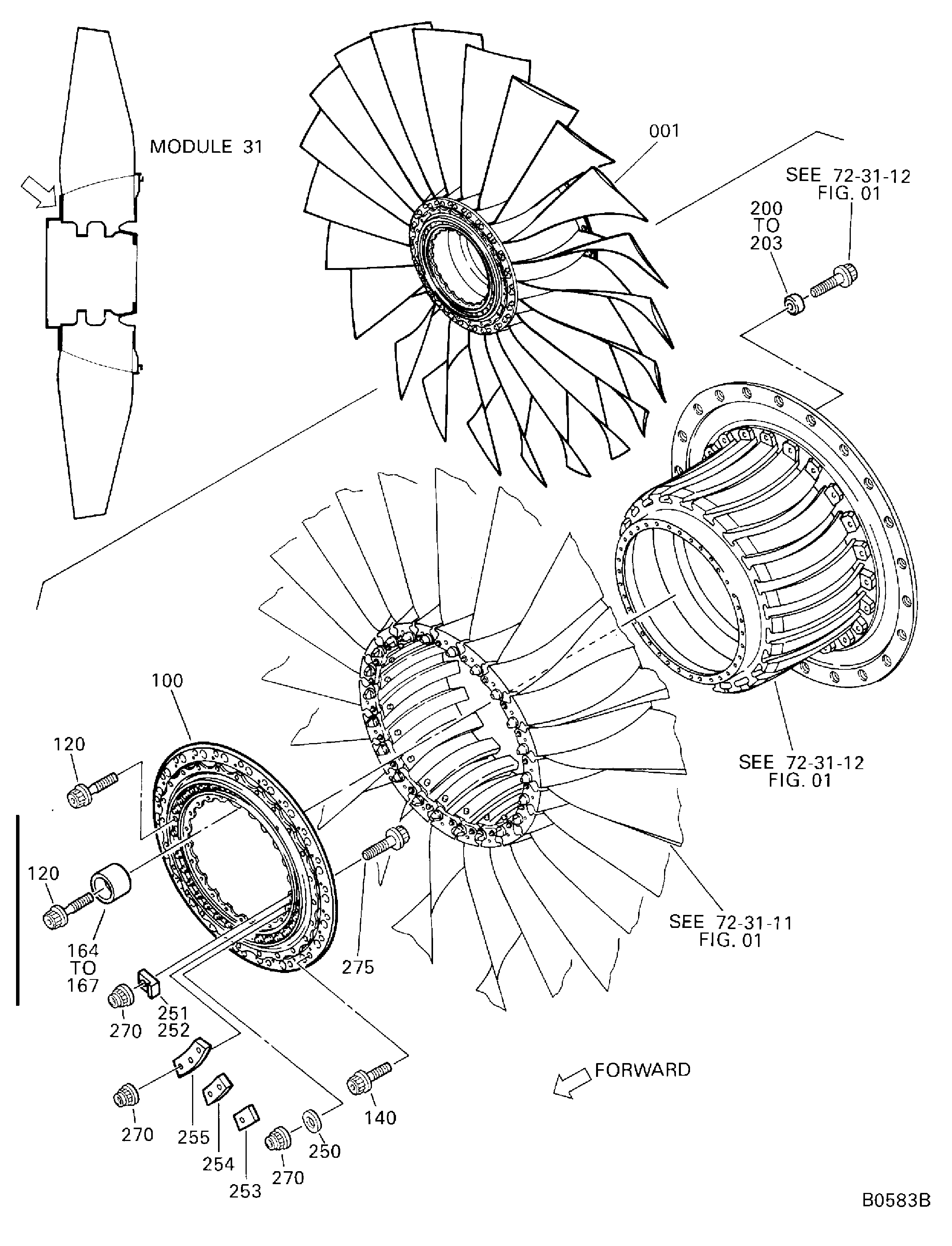

Figure: ENGINE-LP COMPRESSOR (FAN) MODULE
ENGINE-LP COMPRESSOR (FAN) MODULE
