DMC:V2500-A5-72-31-12-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72311201 | ENGINE-LP COMPRESSOR DISC AND LOCATION RINGS, PRE SBE70-0712 | aa | |
| - | SBE0712-01 | ENGINE-LP COMPRESSOR DISC AND LOCATION RINGS, PRE SBE70-0999 | ab | |
| - | SBE0999-01 | ENGINE-LP COMPRESSOR DISC AND LOCATION RINGS, PRE SBE70-1001 | ac | |
| - | SBE1001-01 | ENGINE-LP COMPRESSOR DISC AND LOCATION RINGS | ad | |
| 100 | 5A0897 | • RING - RETAINING BLADE REAR | aa-ad/01 | 1 |
| 120 | AS21118 | • BOLT, 0.3125 DIA X 1.125 U1653 | aa-ad/01 | 22 |
| 200 | 5A0337 | • DISC - FAN, STAGE 1, ASSEMBLY OF PRE SBE70–0712 | aa-ad/01 | 1 |
| 200A | 5A1757 | • DISC - FAN, STAGE 1, ASSEMBLY OF POST SBE70–0712 PRE SBE70–1001 | aa-ad/01 | 1 |
| 200B | 5A1757 | • DISC - FAN, STAGE 1, ASSEMBLY OF ALT 5A1948 POST SBE70–1001 | aa-ad/01 | 1 |
| -200C | 5A1948 | • DISC - FAN, STAGE 1, ASSEMBLY OF ALT 5A1757 POST SBE70–1001 | aa-ad/01 | REF |
| 220 | 5A0118 | • • WASHER, PLATE | aa-ad/01 | 3 |
| 225 | 5A0119 | • • RAMP - REAR PRE SBE70–0999 | aa-ad/01 | 22 |
| 225A | 5A0119 | • • RAMP - REAR ALT 5A1947 POST SBE70–0999 | aa-ad/01 | 22 |
| -225B | 5A1947 | • • PLATE, RAMP REAR ALT 5A0119 POST SBE70–0999 | aa-ad/01 | REF |
| 250 | 5A0095 | • • PIN, JACKING PAD PRE SBE70–0712 | aa/01 | 10 |
| 250A | 5A1823 | • • PIN, JACKING PAD POST SBE70–0712 | ab-ad/01 | 10 |
| 260 | AS27870 | • • NUT, SELF LOCKING SHANK, .3125 DIA U1653 PRE SBE70–0712 | aa/01 | 36 |
| 260A | AS27870 | • • NUT, SELF LOCKING SHANK, .3125 DIA U1653 POST SBE70–0712 | ab-ad/01 | 36 |
| 262 | AS55202-2 | • • NUT, SELF LOCKING, 2.05 U1653 POST SBE70–0712 | ab-ad/01 | 36 |
| 264 | AS55202-5 | • • NUT, SELF LOCKING, 2.71 U1653 POST SBE70–0712 | ab-ad/01 | 36 |
| 266 | AS55202-8 | • • NUT, SELF LOCKING, 3.37 U1653 POST SBE70–0712 | ab-ad/01 | 36 |
| 270 | AS27870 | • • NUT, SELF LOCKING SHANK, .3125 DIA U1653 PRE SBE70–0712 | aa/01 | 22 |
| 270A | AS27870 | • • NUT, SELF LOCKING SHANK, .3125 DIA U1653 POST SBE70–0712 | ab-ad/01 | 22 |
| 272 | AS55202-2 | • • NUT, SELF LOCKING, 2.05 U1653 POST SBE70–0712 | ab-ad/01 | 22 |
| 274 | AS55202-5 | • • NUT, SELF LOCKING, 2.71 U1653 POST SBE70–0712 | ab-ad/01 | 22 |
| 276 | AS55202-8 | • • NUT, SELF LOCKING, 3.37 U1653 POST SBE70–0712 | ab-ad/01 | 22 |
| 280 | AS44809 | • • PIN, SHOULDER, HEADLESS U1653 PRE SBE70–0712 | aa/01 | 7 |
| 280A | 5A1822 | • • PIN, SHOULDER, HEADLESS POST SBE70–0712 | ab-ad/01 | 7 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

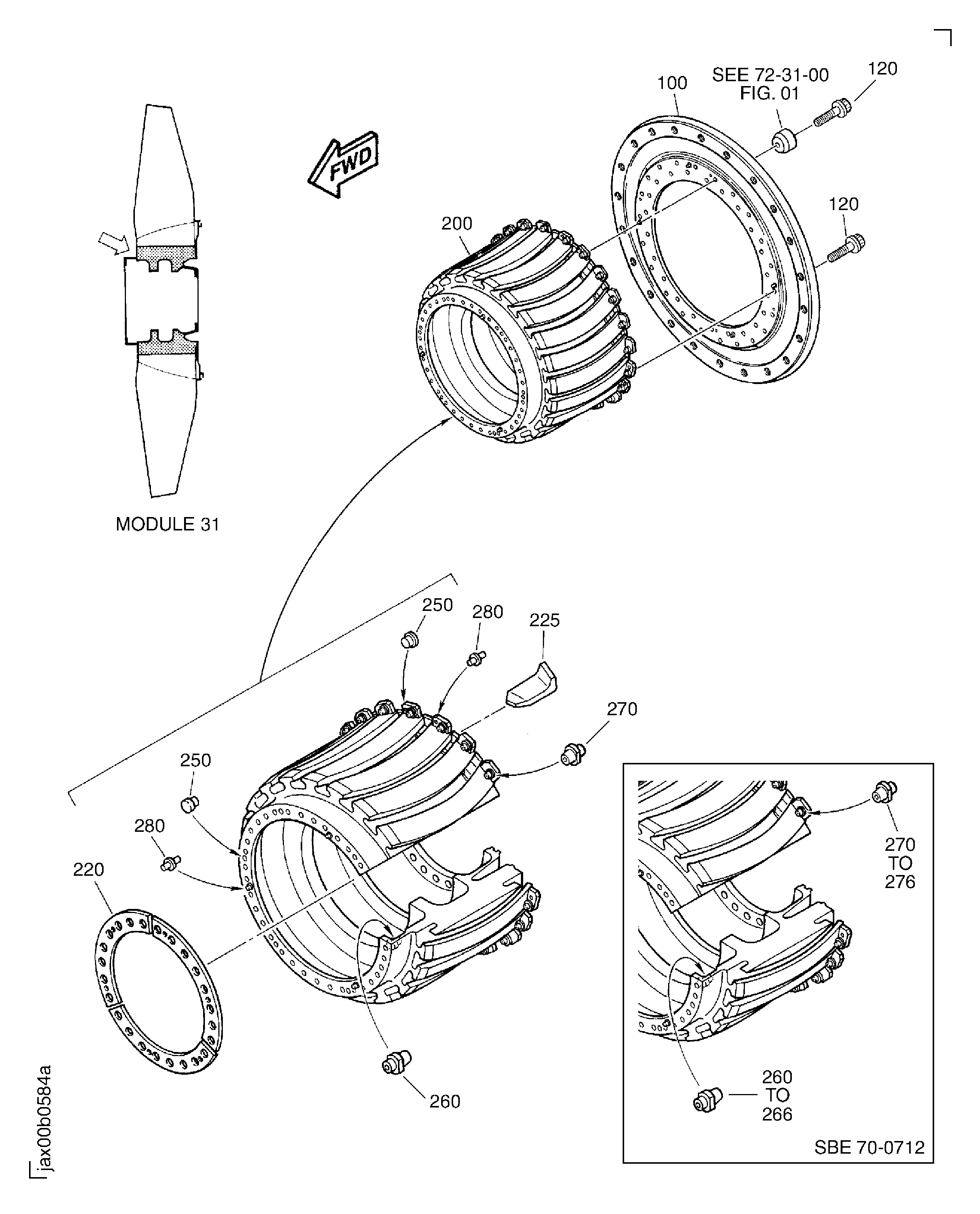

Figure: LPC Fan Disk And Fan Blade Rear Retaining Ring
LPC Fan Disk And Fan Blade Rear Retaining Ring
