| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B72320003 | ENGINE-LP COMP/INTERMEDIATE CASE MODULE, PRE SBE70-0283 | aa | ||
| SBE0283-01 | ENGINE-LP COMP/INTERMEDIATE CASE MODULE | ab | ||
| 200 | 5A1613 | • PRESS - FAN, EXIT BOSS WITH POST SBE70-0283 | ab | 1 |
| 210 | 4W0107 | • BOLT - .190 DIA X .750 Optional Part AS21412 | aa-ab | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

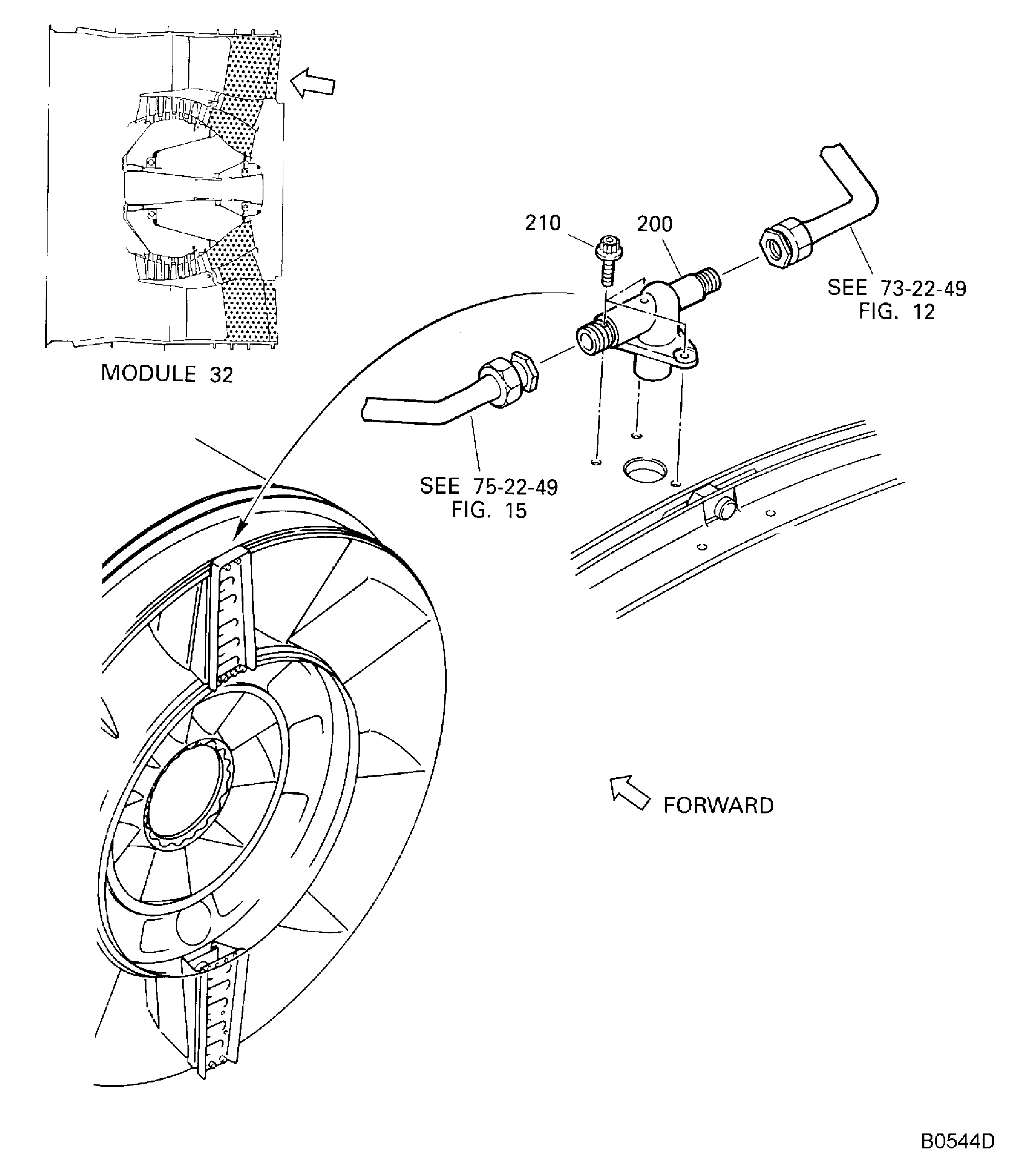

Figure: ENGINE-LP COMP/INTERMEDIATE CASE MODULE
LP COMPRESSOR/INTERMEDIATE CASE MODULE
