DMC:V2500-A5-72-32-05-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72320501 | ENGINE-PTO DRIVE SHAFT BEARING AND SUPPORT, PRE SBE72-0214 | aa | ||
| SBE0214-01 | ENGINE-PTO DRIVE SHAFT BEARING AND SUPPORT | ab | ||
| 100 | 5A1274 | • WASHER - ADJUSTING CENTRE BRG, 0.020INS (0.50 MM) | aa-ab/03 | 1 |
| 101 | 5A1275 | • WASHER - ADJUSTING CENTRE BRG, 0.022INS (0.55 MM) | aa-ab/03 | 1 |
| 102 | 5A1276 | • WASHER - ADJUSTING CENTRE BRG, 0.024INS (0.60 MM) | aa-ab/03 | 1 |
| 103 | 5A1277 | • WASHER - ADJUSTING CENTRE BRG, 0.026INS (0.65 MM) | aa-ab/03 | 1 |
| 104 | 5A1278 | • WASHER - ADJUSTING CENTRE BRG, 0.028INS (0.70 MM) | aa-ab/03 | 1 |
| 105 | 5A1279 | • WASHER - ADJUSTING CENTRE BRG, 0.030INS (0.75 MM) | aa-ab/03 | 1 |
| 106 | 5A1280 | • WASHER - ADJUSTING CENTRE BRG, THK .031 IN | aa-ab/03 | 1 |
| 107 | 5A1281 | • WASHER - ADJUSTING CENTRE BRG, THK .033 IN | aa-ab/03 | 1 |
| 108 | 5A1282 | • WASHER - ADJUSTING CENTRE BRG, 0.035INS (0.90 MM) | aa-ab/03 | 1 |
| 109 | 5A1283 | • WASHER - ADJUSTING CENTRE BRG, 0.037INS (0.95 MM) | aa-ab/03 | 1 |
| 110 | 5A1284 | • WASHER - ADJUSTING CENTRE BRG, THK .039 IN | aa-ab/03 | 1 |
| 111 | 5A1285 | • WASHER - ADJUSTING CENTRE BRG, 0.041INS (1.05 MM) | aa-ab/03 | 1 |
| 112 | 5A1286 | • WASHER - ADJUSTING CENTRE BRG, 0.043INS (1.10 MM) | aa-ab/03 | 1 |
| 113 | 5A1287 | • WASHER - ADJUSTING CENTRE BRG, 0.045INS (1.15 MM) | aa-ab/03 | 1 |
| 114 | 5A1288 | • WASHER - ADJUSTING CENTRE BRG, 0.047INS (1.20 MM) | aa-ab/03 | 1 |
| 115 | 5A1289 | • WASHER - ADJUSTING CENTRE BRG, 0.049INS (1.25 MM) | aa-ab/03 | 1 |
| 116 | 5A1290 | • WASHER - ADJUSTING CENTRE BRG, 0.051INS (1.30 MM) | aa-ab/03 | 1 |
| 117 | 5A1291 | • WASHER - ADJUSTING CENTRE BRG, 0.053INS (1.35 MM) | aa-ab/03 | 1 |
| 118 | 5A1292 | • WASHER - ADJUSTING CENTRE BRG, 0.055INS (1.40 MM) | aa-ab/03 | 1 |
| 119 | 5A1293 | • WASHER - ADJUSTING CENTRE BRG, 0.057INS (1.45 MM) | aa-ab/03 | 1 |
| 120 | 5A1294 | • WASHER - ADJUSTING CENTRE BRG, 0.059INS (1.50 MM) | aa-ab/03 | 1 |
| 170 | 5A0427 | • SEAL - CARRIER PTO | aa-ab/03 | 1 |
| 180 | AS43013-137 | • RING U1653 | aa-ab/03 | 1 |
| 230 | RR216 | • RING - RETAINING INT 80756 | aa-ab/03 | 1 |
| 250 | 5A0913 | • BEARING - ROLLER OUTER | aa-ab/03 | 1 |
| 270 | 5A1428 | • BEARING - ROLLER INNER PRE SBE72-0214 | aa/02 | 1 |
| 270A | 5A1605 | • BEARING - ROLLER, INNER POST SBE72-0214 | aa-ab/02 | 1 |
| 275 | 5A1430 | • RING - RETAINING PRE SBE72-0214 | aa/02 | 1 |
| 275A | 5A1505 | • RING - RETAINING POST SBE72-0214 | ab/02 | 1 |
| 275B | 5A1505 | • RING - RETAINING | aa-ab/01 | 1 |
| 300 | 5A1433 | • HOUSING - A/O CENTER BRG | aa-ab/03 | 1 |
| 310 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ab/03 | 3 |
| 320 | 5A1222 | • • PIN - SHOULDER HOLLOW | aa-ab/03 | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

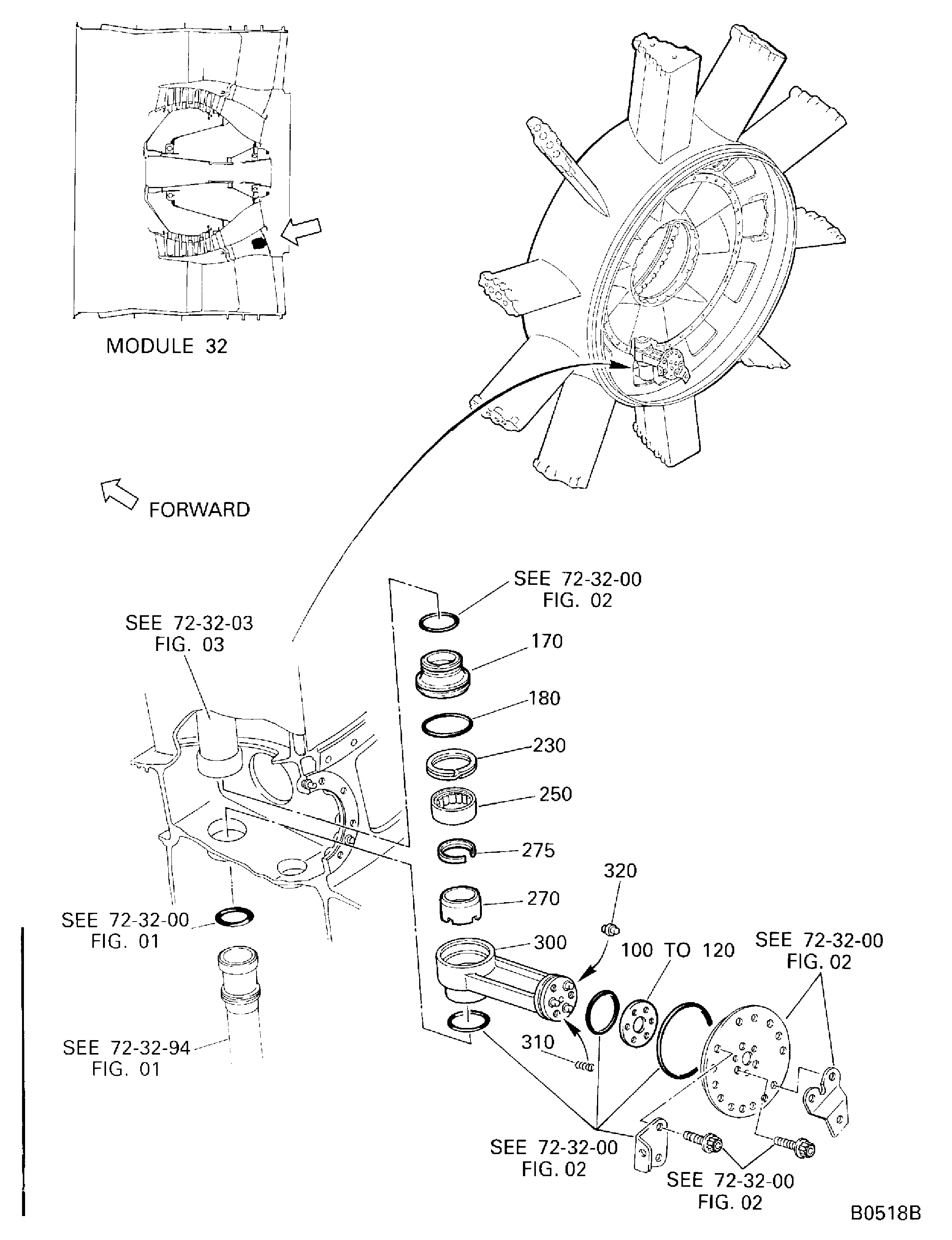

Figure: ENGINE-PTO DRIVE SHAFT BEARING AND SUPPORT
PTO DRIVE SHAFT BEARING AND SUPPORT
