V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72321801 | ENGINE-FAN SPEED/TRIM BALANCE PROBES, PRE SBE70-0325 | aa | ||
| SBE0325-01 | ENGINE-FAN SPEED/TRIM BALANCE PROBES, PRE SBE72-0508 | ab | ||
| SBE0508-01 | ENGINE-FAN SPEED/TRIM BALANCE PROBES, PRE SBE72-0553 | ac | ||
| SBE0553-01 | ENGINE-FAN SPEED/TRIM BALANCE PROBES | ad | ||
| 100 | 788-1-12 | • PROBE - LP SPEED 0ABG5 (REF NO 5L0010) PRE SBE70-0325 | aa/01 | 1 |
| 100A | 788-1-13 | • PROBE - FAN SPEED (REF NO 5L0052) POST SBE70-0325 PRE SBE72-0508 | aa-ab/01 | 1 |
| 100B | 788-1-13 | • PROBE - FAN SPEED (REF NO 5L0052) PRE SBE72-0508 | aa-ab/03 | 1 |
| 100C | 1020-2-12 | • PROBE - SPEED POST SBE72-0508 | ac-ad/02 | 1 |
| 200 | 788-1-12 | • PROBE - LP SPEED 0ABG5 (REF NO 5L0010) PRE SBE70-0325 | aa/01 | 1 |
| 200A | 788-1-13 | • PROBE - FAN SPEED (REF NO 5L0052) PRE SBE72-0508 | aa-ab/01 | 1 |
| 200B | 788-1-13 | • PROBE - FAN SPEED (REF NO 5L0052) POST SBE70-0325 PRE SBE72-0508 | ab/03 | 1 |
| 200C | 1020-2-12 | • PROBE - SPEED POST SBE72-0508 | ac-ad/02 | 1 |
| 300 | 789-1-12 | • PROBE - TRIM BALANCE 0ABG5 (REF NO 5L0011) PRE SBE70-0325 | aa/01 | 1 |
| 300A | 789-1-13 | • PROBE - TRIM BALANCE (REF NO 5L0053) PRE SBE72-0508 | aa-ab/01 | 1 |
| 300B | 789-1-13 | • PROBE - TRIM BALANCE (REF NO 5L0053) POST SBE70-0325 PRE SBE72-0508 | ab/03 | 1 |
| 300C | 1021-2-12 | • PROBE - TRIM BALANCE POST SBE72-0508 PRE SBE72-0553 | ac/02 | 1 |
| 300D | 1021-3-13 | • PROBE - TRIM BALANCE POST SBE72-0553 | ad/02 | 1 |
| 400 | 788-1-12 | • PROBE - LP SPEED 0ABG5 (REF NO 5L0010) PRE SBE70-0325 | aa/01 | 1 |
| 400A | 788-1-13 | • PROBE - FAN SPEED (REF NO 5L0052) POST SBE70-0325 PRE SBE72-0508 | ab/02 | 1 |
| 400B | 1020-2-12 | • PROBE - SPEED POST SBE72-0508 | ac-ad/02 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

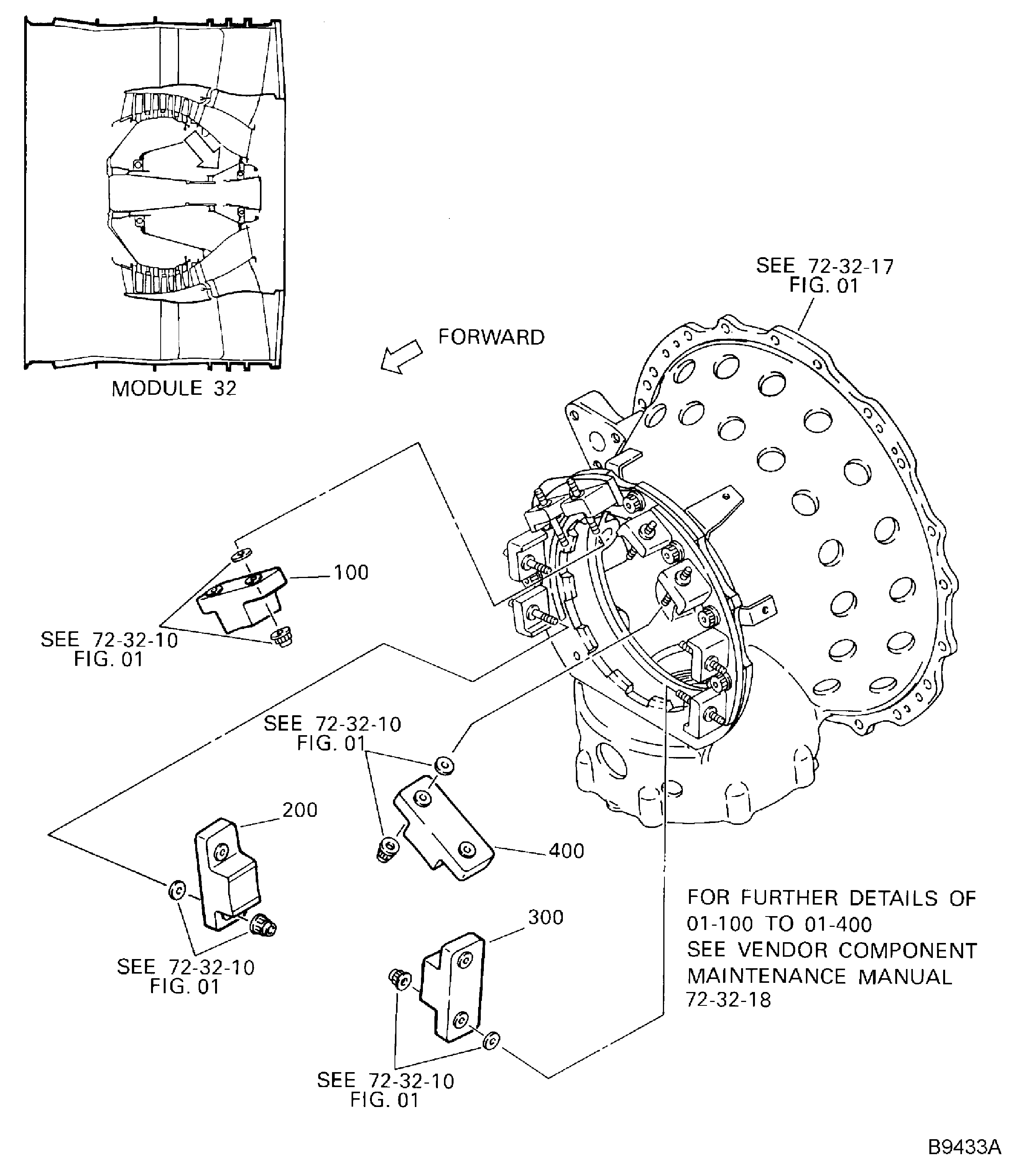

Figure: ENGINE-FAN SPEED/TRIM BALANCE PROBES
FAN SPEED/TRIM BALANCE PROBES
