V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72322001 | NO.3 BEARING, ROTOR CENTRE AND SUPPORT ASSEMBLY, PRE SBE70-0857 | aa | ||
| SBE0857-01 | NO.3 BEARING, ROTOR CENTRE AND SUPPORT ASSEMBLY | ab | ||
| SBE0698-01 | NO.3 BEARING, ROTOR CENTRE AND SUPPORT ASSEMBLY | ac | ||
| 100 | AS3209-276 | • PACKING - PREFORMED U1653 PRE SBE70-0857 | aa-ab | 1 |
| 100A | ST1946-276 | • PACKING - PREFORMED 77445 POST SBE70-0857 PRE SBE72-0698 | ab | 1 |
| 100B | ST1946-275 | • PACKING - PREFORMED 77445 POST SBE72-0698 | ac | 1 |
| 140 | AS21008 | • BOLT - 0.25 DIA X 0.500 U1653 | aa-ab | 9 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

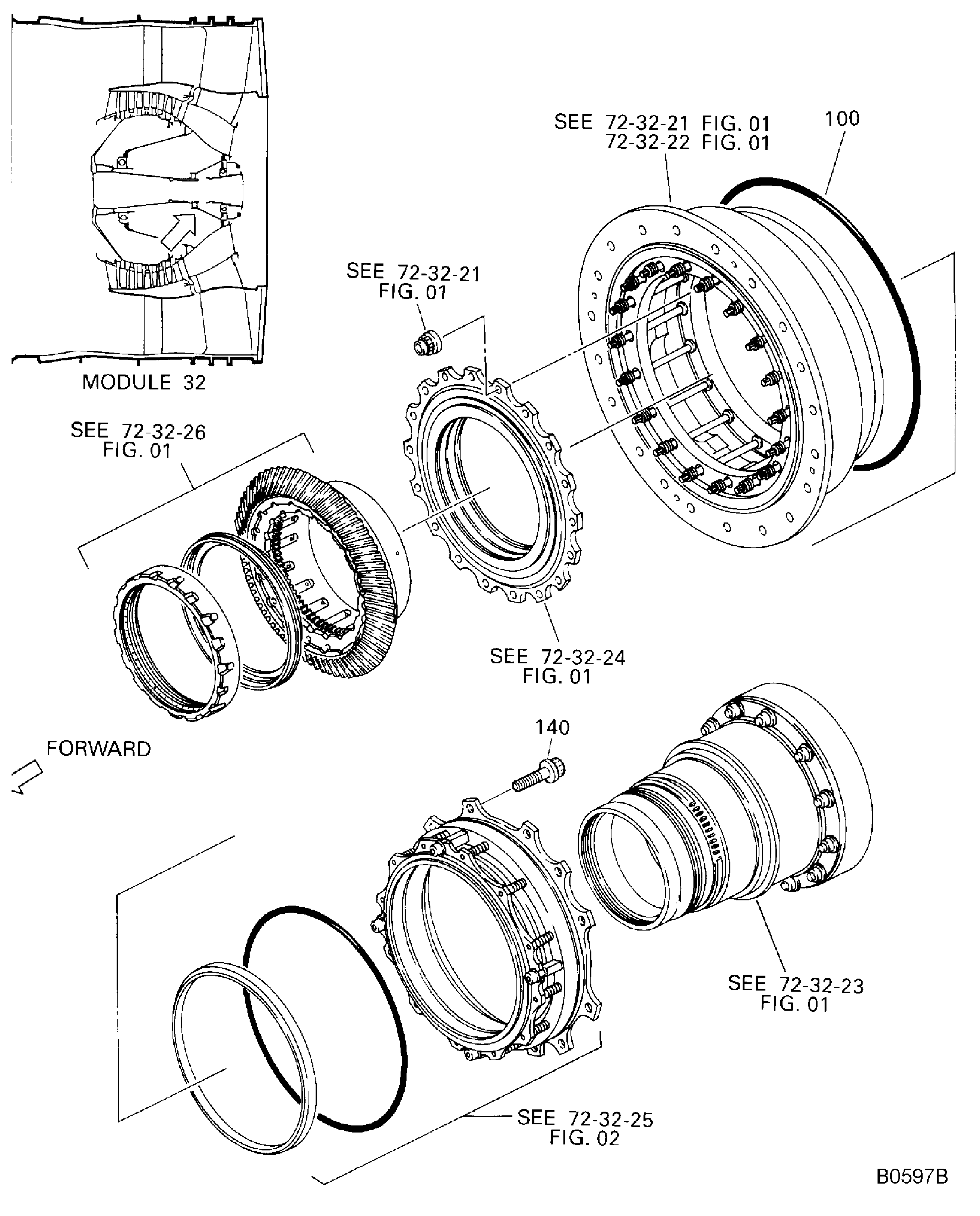

Figure: "NO.3 BEARING,ROTOR CENTRE & SUPPORT ASSY
NO.3 BEARING ROTOR CENTER AND SUPPORT ASSEMBLY
