| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72322401 | ENGINE - NO.3 BEARING, PRE SBE70-0830 (ALL) | aa | |
| - | SBE0830-01 | ENGINE - NO.3 BEARING, PRE SBE70-0926 (ALL) | ab | |
| - | SBE0926-01 | ENGINE - NO.3 BEARING, PRE SBE72-0569 (ALL) | ac | |
| - | SBE0569-01 | ENGINE - NO.3 BEARING, PRE SBE72-0581 | ad | |
| - | SBE0581-01 | ENGINE-NO.3 BEARING, PRE SBE72-0693 | ae | |
| - | SBE0693-01 | ENGINE-NO.3 BEARING | af | |
| 100 | 2A1250 | • BEARING OPTION ALT 2A1165 PRE SBE70-0830 | aa/01 | 1 |
| -100A | 2A1165 | • BEARING - BALL, ANNULAR ALT 2A1170 PRE SBE70-0830 | aa/04 | REF |
| -100B | 2A1170 | • BEARING - BALL, ANNULAR ALT 2A1170 PRE SBE70-0830 | aa/04 | REF |
| 100C | 2A1250 | • BEARING OPTION PRE SBE70-0830 | aa/02 | 1 |
| 100D | 2A1170 | • BEARING - BALL, ANNULAR ALT 2A3851 POST SBE70-0926 | ac-ad/03 | 1 |
| 100E | 2A3851 | • BEARING - BALL 77445 ALT 2A1170 POST SBE72-0569 PRE SBE72-0581 | ad/03 | 1 |
| 100F | 2A1170 | • BEARING - BALL, ANNULAR POST SBE70-0830 PRE SBE72-0569 | ab-ac/03 | 1 |
| 100G | 2A3851 | • BEARING - BALL 77445 ALT 2A1170 POST SBE72-0569 PRE SBE72-0581 | ad/03 | 1 |
| 100H | 2A1170 | • BEARING - BALL, ANNULAR ALT 2A1250 POST SBE72-0569 | ad/03 | 1 |
| 100I | 2A4022 | • BEARING - BALL POST SBE70-0926 | ac-ad/03 | 1 |
| 100J | 2A4235 | • BEARING OPTION 77445 ALT 2A4170 POST SBE72-0581 PRE SBE72-0693 | ae/03 | 1 |
| -100K | 2A4170 | • BEARING - INNER, ROLLER 77445 ALT 2A3851 POST SBE72-0581 PRE SBE72-0673 REF SBE72-0674 | ae/03 | REF |
| -100L | 2A3851 | • BEARING - BALL 77445 ALT 2A4235 POST SBE72-0581 PRE SBE72-0673 REF SBE72-0674 | ae/03 | REF |
| 100M | 2A4585 | • BEARING OPTION 77445 ALT 2A4586 POST SBE72-0693 | ae/03 | 1 |
| -100N | 2A4586 | • BEARING - BALL 77445 ALT 2A4587 POST SBE72-0693 | ae/03 | REF |
| -100O | 2A4587 | • BEARING 77445 ALT 2A4585 POST SBE72-0693 | ae/03 | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

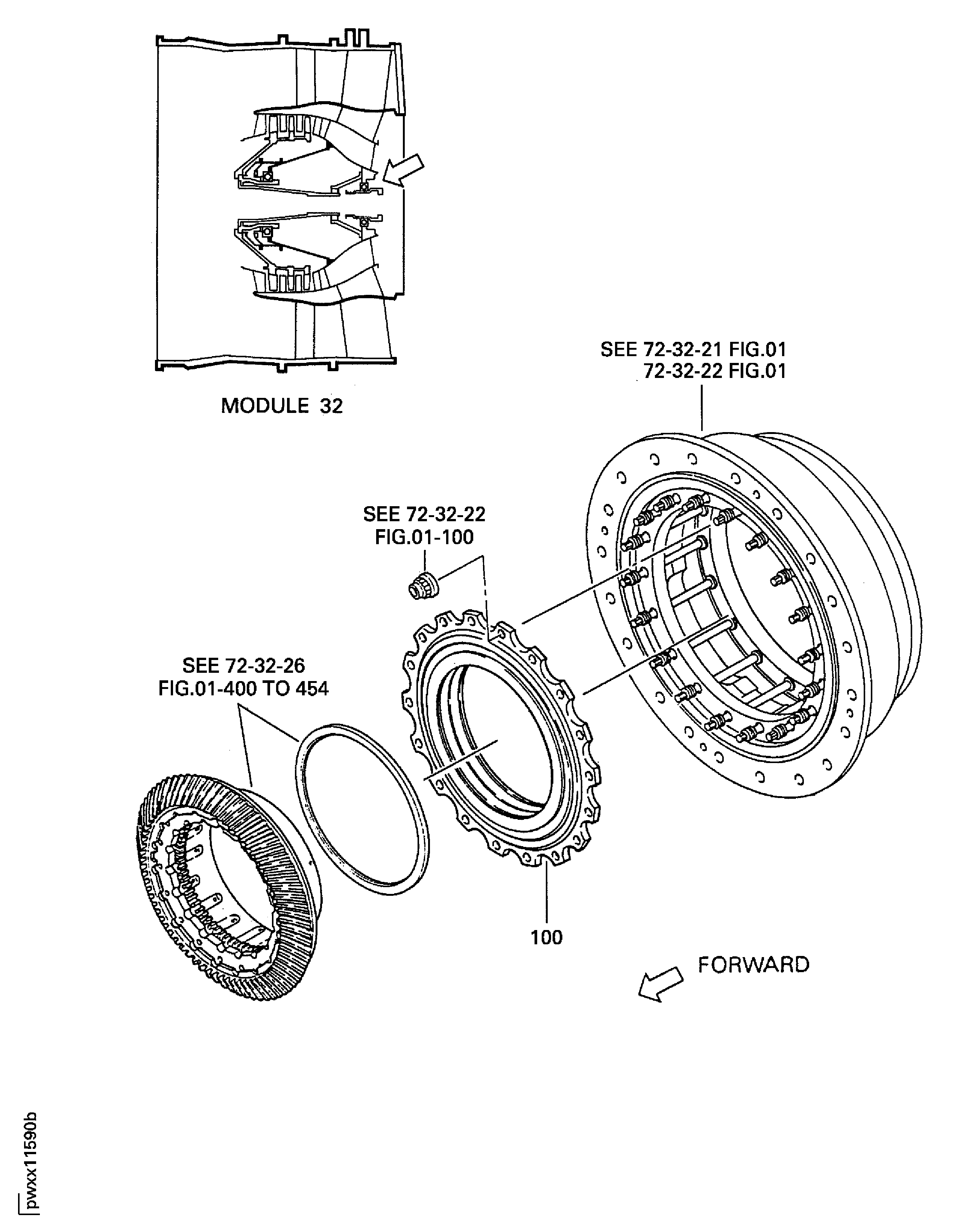

Figure: No. 3 Bearing
No. 3 Bearing
