DMC:V2500-A5-72-32-36-01A-941A-DIssue No:003.00Issue Date:2019-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72323601 | NO. 2 AND NO. 3 BEARING OIL DISTRIBUTOR AND TUBES, PRE SBE72-0701 | aa | |
| - | SBE0701-01 | NO. 2 AND NO. 3 BEARING OIL DISTRIBUTOR AND TUBES | ab | |
| 100 | 5A1270 | • HOUSING - OIL FILTER | aa/01 | 1 |
| 110 | 4W0001 | • NUT, OPTION - .190 DIA | aa/01 | 2 |
| 120 | 4W0105 | • BOLT - MACHINE DOUBLE HEX, .190 DIA X .625 | aa/01 | 2 |
| 130 | AS43013-119 | • RING - SEALING, TOROIDAL U1653 PRE SBE72-0701 | aa/01 | 1 |
| 130A | M83485-1-119 | • O-RING 96906 POST SBE72-0701 | ab/01 | 1 |
| 140 | 5A1346 | • STRAINER - ELEMENT, ASSEMBLY OF | aa/01 | 1 |
| 160 | 5A1269 | • TUBE - OIL FEED, NO. 3 BEARING, ASSEMBLY OF | aa/01 | 1 |
| 170 | 4W0168 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .875 | aa/01 | 2 |
| 180 | AS43013-114 | • RING - SEALING, TOROIDAL U1653 | aa/01 | 1 |
| 235 | 5A1342 | • TUBE - OIL, FEED, ASSEMBLY OF | aa/01 | 1 |
| 240 | AS43013-117 | • RING U1653 | aa/01 | 2 |
| 245 | AS43013-119 | • RING - SEALING, TOROIDAL U1653 PRE SBE72-0701 | aa/01 | 1 |
| 245A | M83485-1-119 | • O-RING 96906 POST SBE72-0701 | ab/01 | 1 |
| 300 | 5A1268 | • TUBE - OIL FEED, NO. 2 BEARING, ASSEMBLY OF | aa/01 | 1 |
| 305 | AS43013-114 | • RING - SEALING, TOROIDAL U1653 | aa/01 | 2 |
| 400 | 5A0944 | • DISTRIBUTOR - OIL, ASSEMBLY OF | aa/02 | 1 |
| 400A | 5A0944 | • DISTRIBUTOR - OIL, ASSEMBLY OF | aa/03 | 1 |
| 405 | 4W0002 | • NUT - SELF LOCKING, DOUBLE HEXAGON, .250 DIA | aa/01 | 3 |
| 410 | 4W2622 | • WASHER OPTION | aa/01 | 3 |
| 415 | 4W0168 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .875 | aa/01 | 3 |
| 420 | 4W2622 | • WASHER OPTION | aa/01 | 3 |
| 425 | AS43013-123 | • RING U1653 | aa/01 | 1 |
| 440 | AS44806 | • • PIN - SHOULDER, HEADLESS U1653 | aa/01 | 1 |
| 500 | 5A1451 | • RESTRICTOR - OIL | aa/01 | 1 |
| 505 | AS43013-114 | • RING - SEALING, TOROIDAL U1653 | aa/01 | 1 |
| 550 | 5A0943 | • DISTRIBUTOR - OIL, ASSEMBLY OF | aa/02 | 1 |
| 550A | 5A0943 | • DISTRIBUTOR - OIL, ASSEMBLY OF | aa/03 | 1 |
| 560 | AS44806 | • PIN - SHOULDER, HEADLESS U1653 | aa/01 | 1 |
| 565 | AS27857 | • • NUT - SELF LOCKING, SHANK U1653 | aa/01 | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

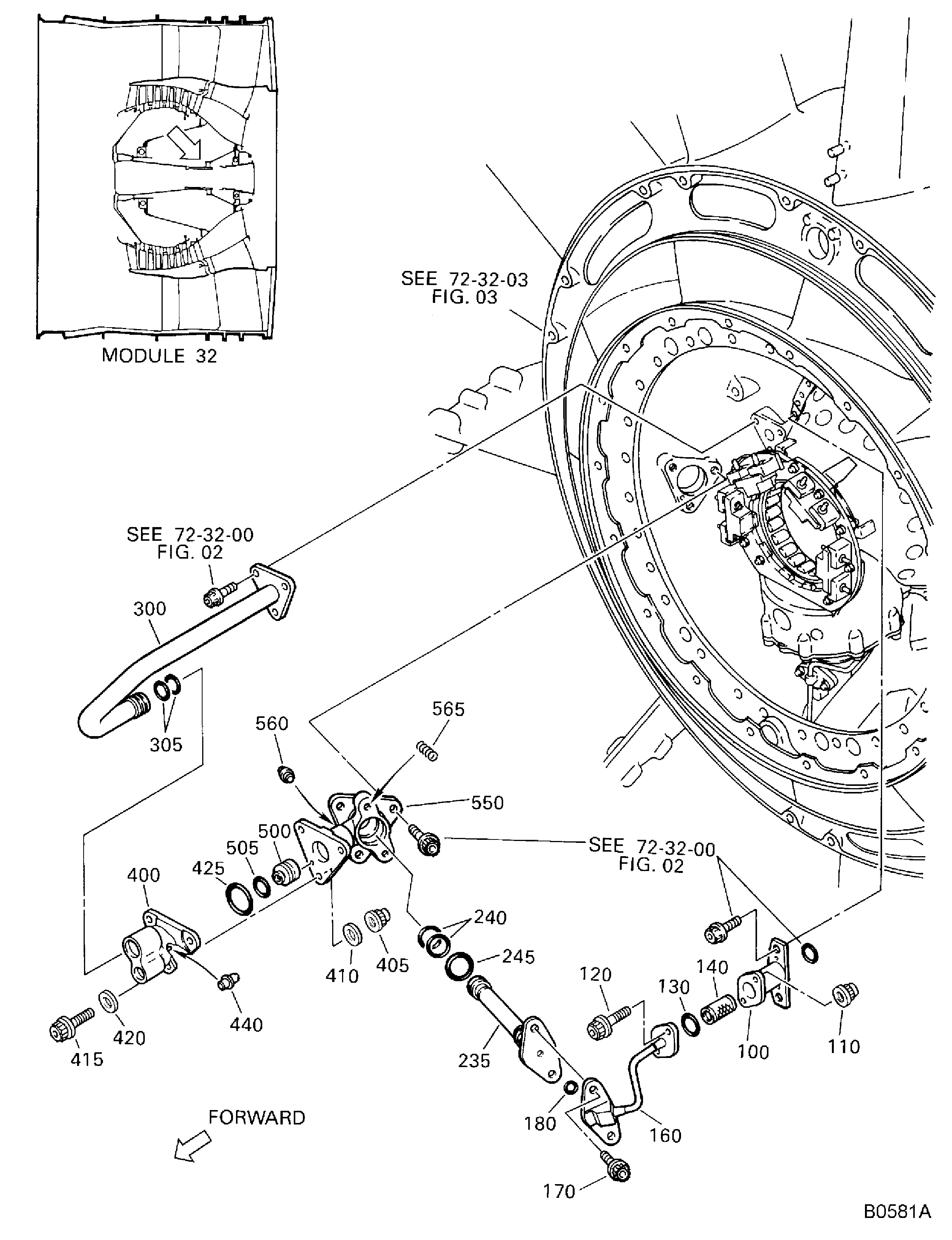

Figure: No. 2 And No. 3 Bearing Oil Distributor And Tubes
No. 2 And No. 3 Bearing Oil Distributor And Tubes
