V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72324201 | ENGINE-OIL JET AND OIL SUPPLY TUBE, PRE SBE70-0503 | aa | ||
| SBE0503-01 | ENGINE-OIL JET AND OIL SUPPLY TUBE | ab | ||
| 100 | 5A0995 | • TUBE - A/O OIL FEED | aa-ab | 1 |
| 110 | AS43013-110 | • RING - 9.19MM I/D X 2.62MM U1653 | aa-ab | 2 |
| 200 | 5A5428 | • OILJET - A/O NO.1 BEARING PRE SBE70-0503 | aa-ab | 1 |
| 200A | 5A1712 | • JET - OIL,A/O NO.1 BRG POST SBE70-0503 | aa-ab | 1 |
| 210 | 4W0002 | • NUT - .250 DIA | aa-ab | 2 |
| 212 | MS9321-10 | • WASHER 96906 | aa-ab | 2 |
| 220 | 4W0167 | • BOLT - .250 DIA X .812 | aa-ab | 2 |
| 250 | 5R0572 | • STRAINER - A/O OILJET | aa-ab | 1 |
| 450 | 5A1155 | • HOUSING - STRAINER | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

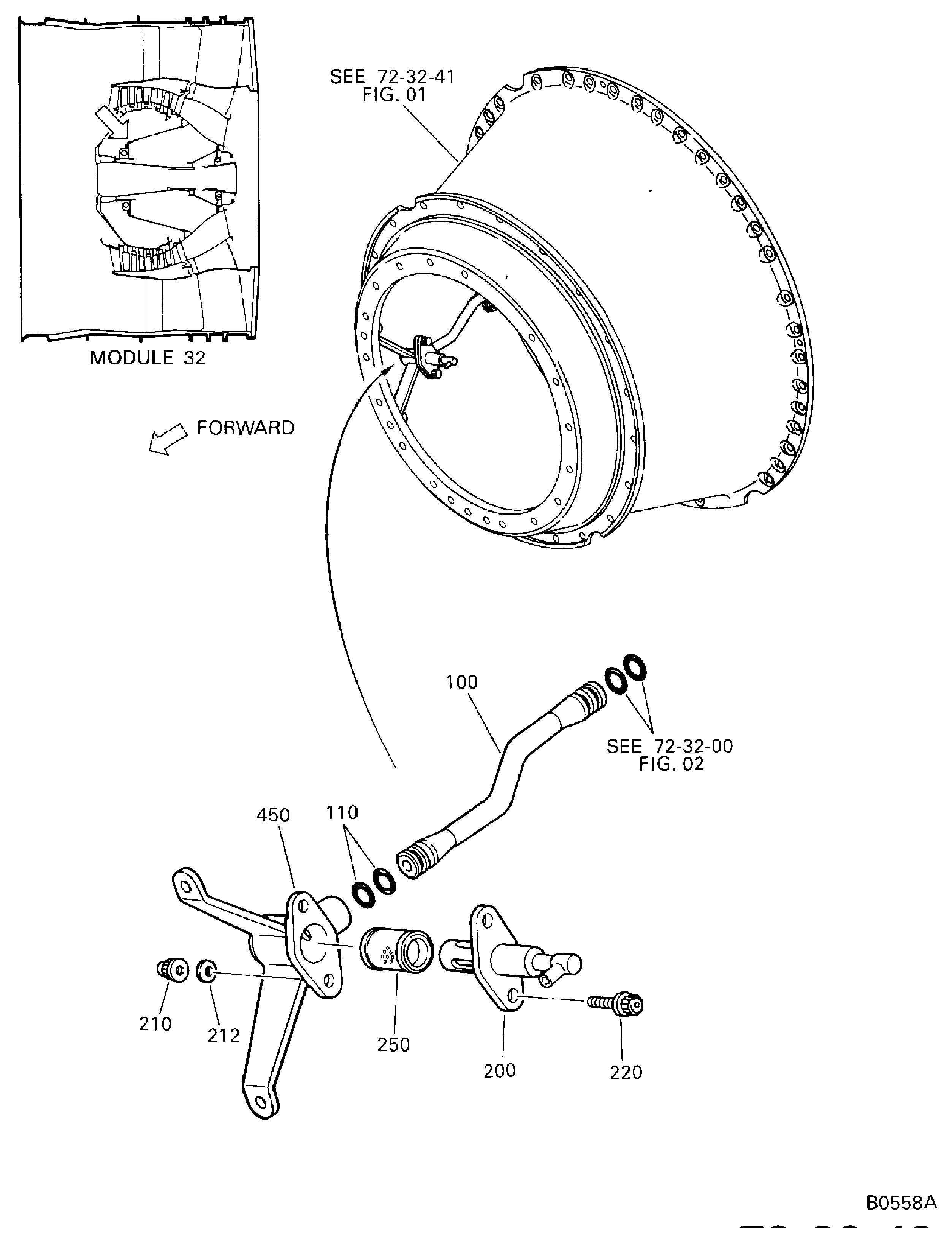

Figure: ENGINE-OIL JET AND OIL SUPPLY TUBE
OIL JET AND OIL SUPPLY TUBE
