V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72325001 | ENGINE-LP SHAFT NO.1 AND NO.2 BEARING ASSEMBLY | aa | ||
| 001 | 5W0132 | DRAWING - LP,STB SHFT&1, | aa | 1 |
| 100 | 72-32-53 | SEAL - OIL FRONT BEARING NO.1 | aa | REF |
| 130 | 72-32-54 | BEARING - NO.1 | aa | REF |
| 150 | 72-32-52 | BEARING - NO.2 | aa | REF |
| 190 | 72-32-51 | SHAFT - LP.STUB ROTOR CENTRE | aa | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

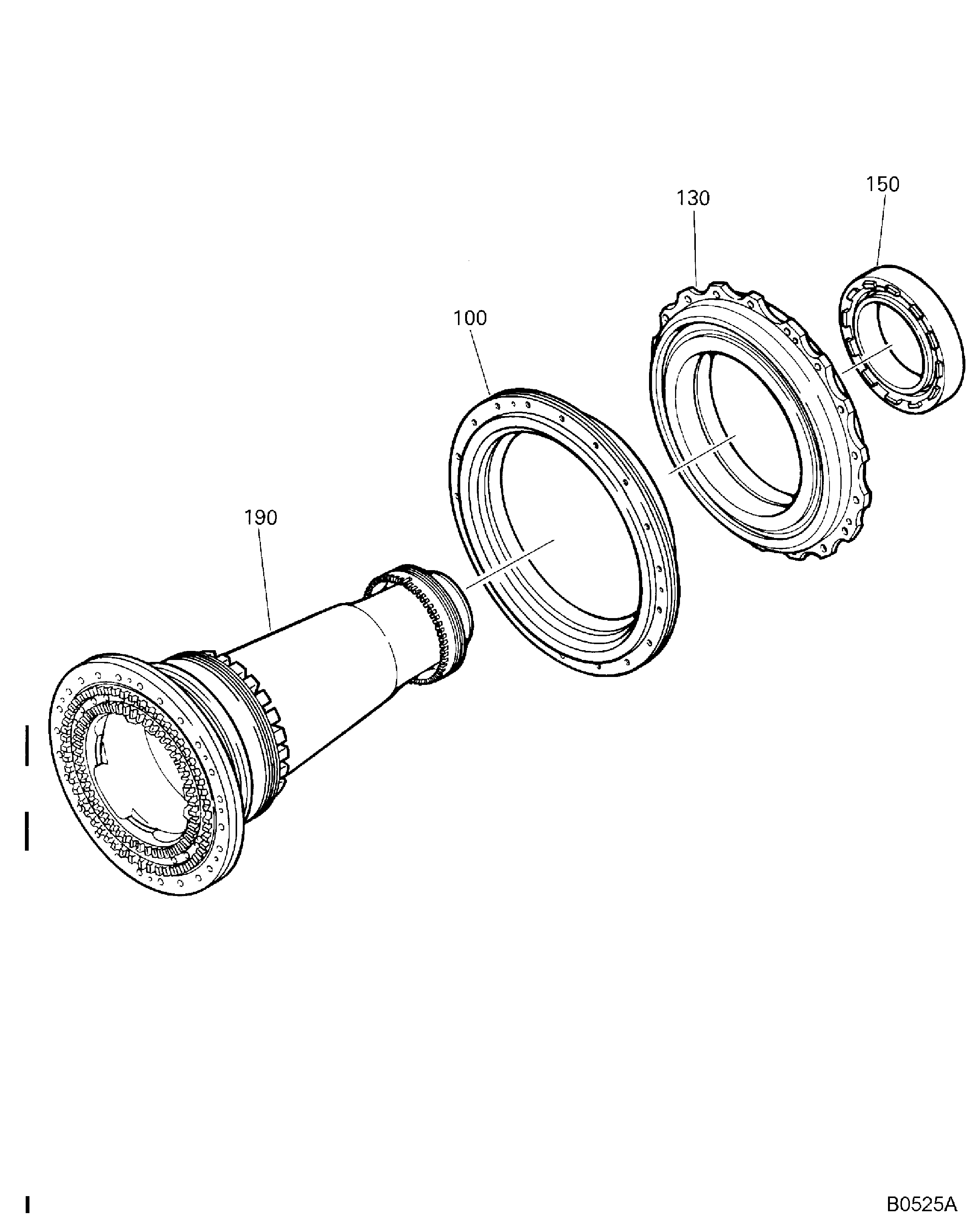

Figure: ENGINE-LP SHAFT NO.1 AND NO.2 BEARING ASSEMBLY

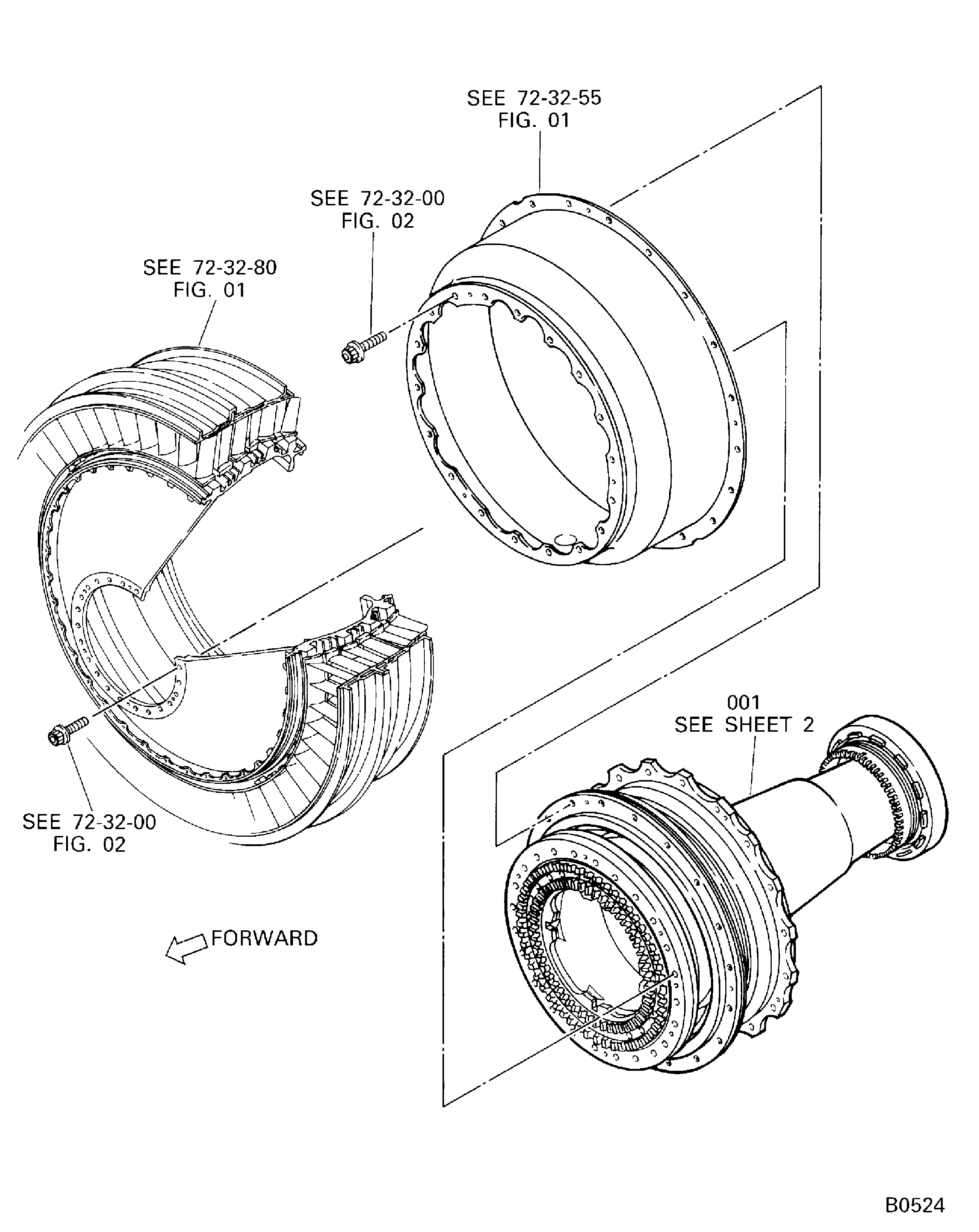

LP SHAFT NO.1 AND NO.2 BEARING ASSEMBLY
LP SHAFT NO.1 AND NO.2 BEARING ASSEMBLY
