DMC:V2500-A5-72-32-70-02A-941A-DIssue No:002.00Issue Date:2019-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72327002 | BOOSTER STAGE BLEED VALVE ACTUATING MECHANISM, PRE SBE72-0279 | aa | ||
| SBE0279-01 | BOOSTER STAGE BLEED VALVE ACTUATING MECHANISM, PRE SBE72-0305 | ab | ||
| SBE0305-01 | BOOSTER STAGE BLEED VALVE ACTUATING MECHANISM, PRE SBE72-0704 | ac | ||
| SBE0704-01 | BOOSTER STAGE BLEED VALVE ACTUATING MECHANISM | ad | ||
| -100 | 72-32-72 | VALVE - BLEED | aa-ac | REF |
| -150 | 72-32-71 | SUPPORT - BLEED VALVE AND ARMS | aa-ac | REF |
| 220 | MS3215-2031 | • RING - RETAINING 96906 | aa-ac | 2 |
| 240 | 5A0473 | • PIN PRE SBE72-0279 | aa | 2 |
| 240A | 5A1793 | • PIN POST SBE72-0279 PRE SBE72-0305 | ab | 2 |
| 240B | 5A1820 | • PIN POST SBE72-0305 PRE SBE72-0704 | ac | 2 |
| 240C | 5A2229 | • PIN POST SBE72-0704 | ad | 2 |
| 270 | 5A0478 | • PIN PRE SBE72-0279 | aa-ab | 8 |
| 270A | 5A1794 | • PIN POST SBE72-0279 PRE SBE72-0305 | aa-ab | 8 |
| 270B | 5A1821 | • PIN POST SBE72-0305 PRE SBE72-0704 | ac | 8 |
| 270C | 5A2230 | • PIN POST SBE72-0704 | ad | 8 |
| 275 | MS3215-2025 | • RING - RETAINING 96906 | aa-ac | 8 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

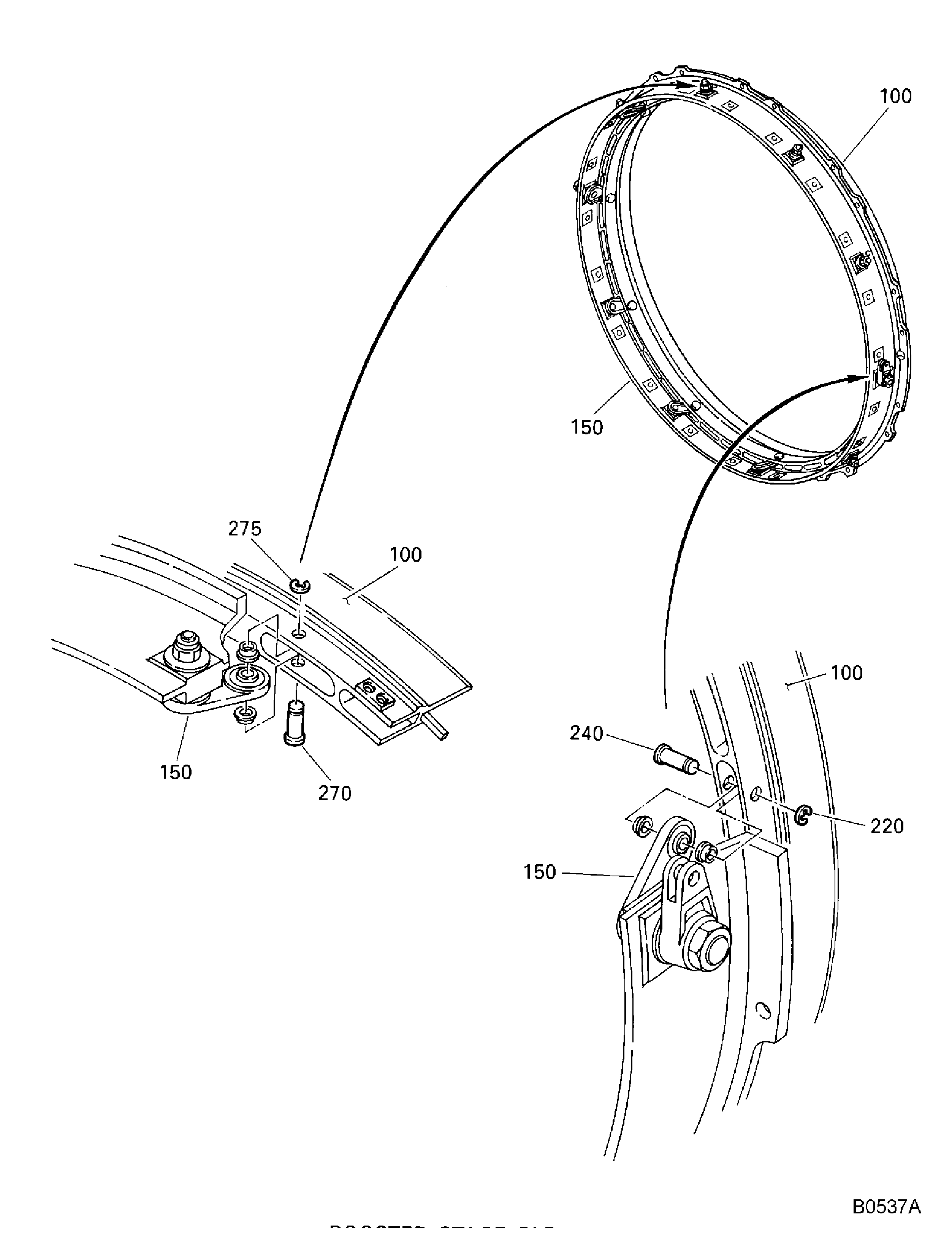

Figure: BOOSTER STAGE BLEED VALVE ACTUATING MECHANISM
BOOSTER STAGE BLEED VALVE AND ACTUATING MECHANISM
