| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72327102 | ENGINE-BLEED VALVE SUPPORT AND ARMS, PRE SBE70-0264 | aa | ||
| SBE0264-01 | ENGINE-BLEED VALVE SUPPORT AND ARMS, PRE SBE72-0155 | ab | ||
| SBE0155-01 | ENGINE-BLEED VALVE SUPPORT AND ARMS, PRE SBE70-0383 | ac | ||
| SBE0383-01 | ENGINE-BLEED VALVE SUPPORT AND ARMS | ad | ||
| 089 | 5A0788 | • BRG - SLV FLANGED TFE LINED | aa-ad | 8 |
| 091 | 5A0787 | • BRG - SLV FLANGED TFE LINED | aa-ad | 8 |
| 093 | 5A0786 | • BRG - SLV FLANGED TFE LINED | aa-ad | 8 |
| 095 | 5A0785 | • BRG - SLV FLANGED TFE LINED | aa-ad | 8 |
| 097 | 5A0784 | • BRG - SLV FLANGED TFE LINED | aa-ad | 8 |
| 099 | 5A0783 | • BRG - SLV FLANGED TFE LINED | aa-ad | 8 |
| 100 | 5A0476 | • ARM - A/O MID | aa-ad | 8 |
| 101 | 5A0782 | • BRG - SLV FLANGED TFE LINED | aa-ad | 8 |
| 103 | 5A0781 | • BRG - SLV FLANGED TFE LINED | aa-ad | 8 |
| 105 | 5A0780 | • BRG - SLV FLANGED TFE LINED | aa-ad | 8 |
| 108 | 5A0780 | • BRG - SLV FLANGED TFE LINED POST SBE70-0264 | ab-ad | 8 |
| 109 | 5A0783 | • BRG - SLV FLANGED TFE LINED PRE SBE70-0264 | aa-ad | 8 |
| 109A | 5A0783 | • BRG - SLV FLANGED TFE LINED POST SBE70-0264 | aa-ad | 8 |
| 110 | MS24665-302 | • PIN - COTTER 96906 ALT MS24665-336 | aa-ad | 8 |
| -110A | MS24665-336 | • PIN - COTTER,SPLIT 96906 ALT MS24665-302 | aa-ad | REF |
| 115 | MS9358-12 | • NUT - CASTELLATED 96906 | aa-ad | 8 |
| 120 | 5A0481 | • WASHER | aa-ad | 8 |
| 140 | MS14101-4 | • • BEARING 96906 | aa-ad | 1 |
| 279 | 5A0493 | • BRG - SLV FLANGED TFE LINED | aa-ad | 2 |
| 281 | 5A0492 | • BRG - SLV FLANGED TFE LINED | aa-ad | 2 |
| 283 | 5A0491 | • BRG - SLV FLANGED TFE LINED | aa-ad | 2 |
| 285 | 5A0490 | • BRG - SLV FLANGED TFE LINED | aa-ad | 2 |
| 287 | 5A0489 | • BRG - SLV FLANGED TFE LINED | aa-ad | 2 |
| 289 | 5A0488 | • BRG - SLV FLANGED TFE LINED | aa-ad | 2 |
| 291 | 5A0487 | • BRG - SLV FLANGED TFE LINED | aa-ad | 2 |
| 293 | 5A0486 | • BRG - SLV FLANGED TFE LINED | aa-ad | 2 |
| 295 | 5A0485 | • BRG - SLV FLANGED TFE LINED | aa-ad | 2 |
| 297 | 5A0485 | • BRG - SLV FLANGED TFE LINED POST SBE70-0264 | ab-ad | 2 |
| 298 | 5A0488 | • BRG - SLV FLANGED TFE LINED PRE SBE70-0264 | aa-ad | 2 |
| 298A | 5A0488 | • BRG - SLV FLANGED TFE LINED POST SBE70-0264 | aa-ad | 2 |
| 300 | 5A0474 | • ARM - POWER-UPPER | aa-ad | 2 |
| 320 | MS9362-16 | • NUT - PLAIN HEX 96906 | aa-ad | 2 |
| 330 | MS9581-16 | • WASHER - KEY-90 DEGREE 96906 | aa-ad | 2 |
| 455 | 5A0471 | • ARM - A/O POWER LOWER | aa-ad | 2 |
| 485 | 5A0497 | • • BEARING - ASSY SPHERICAL | aa-ad | 1 |
| 600 | 5A0463 | • RING - A/O SUPPORT PRE SBE72-0155 | aa-ab | 1 |
| 600A | 5A1497 | • RING - A/O SUPPORT POST SBE72-0155 PRE SBE70-0383 | ac-ad | 1 |
| 600B | 5A1639 | • RING - SUPPORT A/O POST SBE70-0383 | ac-ad | 1 |
| 635 | 5A0496 | • • PIN | aa-ad | 10 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

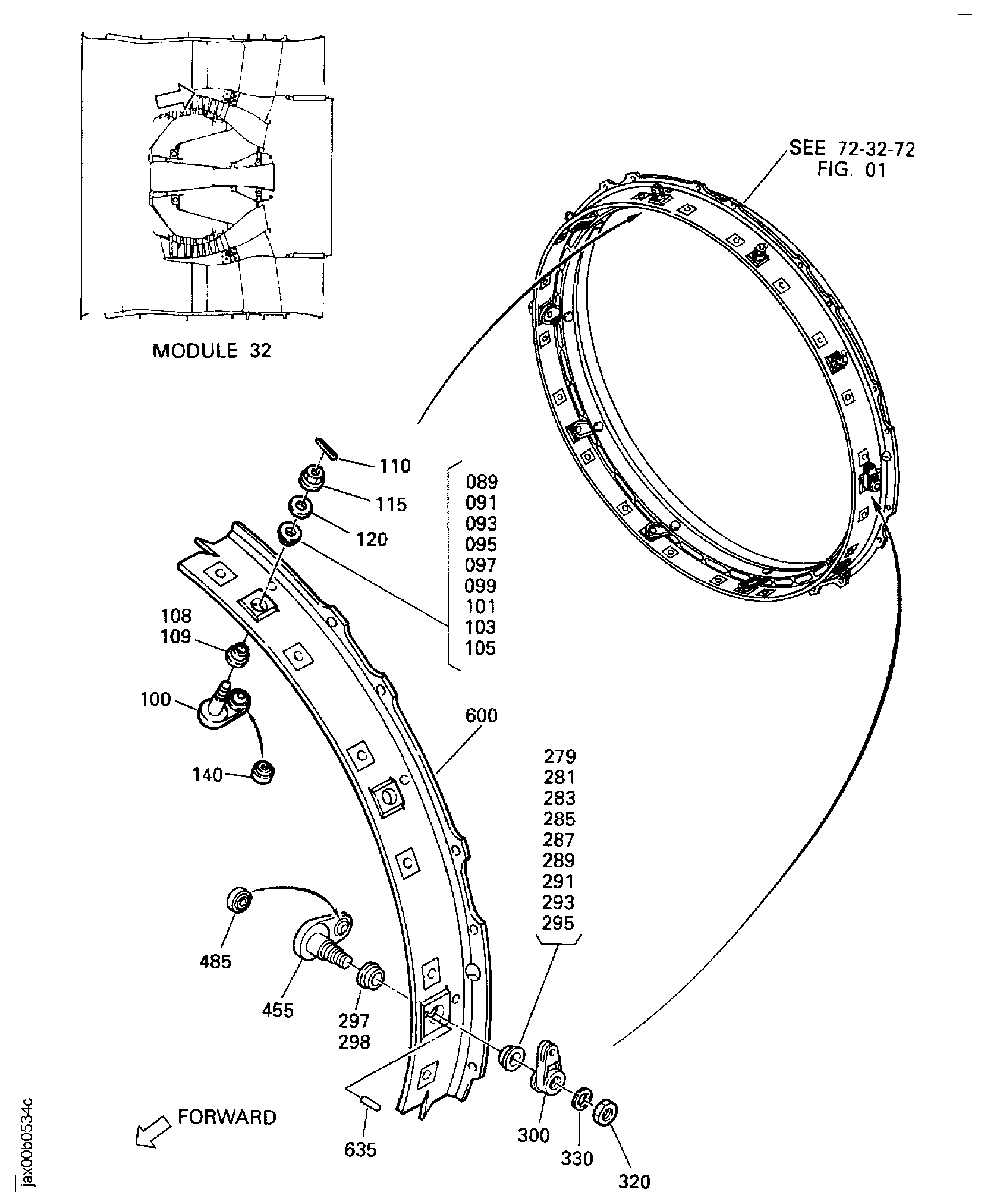

Figure: ENGINE-BLEED VALVE SUPPORT AND ARMS
BLEED VALVE SUPPORT AND ARMS
