DMC:V2500-A5-72-32-76-01A-941A-DIssue No:003.00Issue Date:2021-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72327601 | ENGINE - STAGE 2.5 LP COMPRESSOR VANES, PRE SBE72-0144 | aa | ||
| SBE0144-01 | ENGINE - STAGE 2.5 LP COMPRESSOR VANES | ab | ||
| 400 | 5R0097 | • VANE - LPC STAOR STAGE 2.5 PRE SBE72-0144 | aa/01 | 1 |
| 400A | 5R0189 | • VANE - LPC STAOR, STAGE 2.5 POST SBE72-0144 | ab/02 | 1 |
| 420 | 5R0255 | • • SEALING - STRIP | aa-ab/02 | AR |
| 425 | RPNF250-28SM | • • NUT 83324 | aa-ab/02 | 8 |
| 427 | 5R0099 | • • PIN - SHOULDER | aa-ab/02 | 1 |
| 447 | CCR264CS3-5 | • • RIVET - BLIND, COUNTERSUNK, HEAD 05693 | aa-ab/02 | 40 |
| 449 | MS21060L4 | • • NUT - ANCHOR 96906 | aa-ab/01 | 20 |
| 490 | 5R0144 | • • RING - INNER, ASSEMBLY OF PRE SBE72-0144 | aa/01 | 1 |
| -490A | 5R0190 | • • RING - INNER, ASSEMBLY OF POST SBE72-0144 | ab/02 | REF |
| 492 | 4W2621 | • • WASHER | aa-ab/02 | 120 |
| 493 | 4W1185 | • • BOLT - 0.190 DIA X 0.625 | aa-ab/02 | 120 |
| 520 | RPNF250-28SM | • • • NUT 83324 | aa-ab/02 | 3 |
| 550 | 5R0145 | • • VANE - 2.5 STAGE, ASSEMBLY OF (O/C) PRE SBE72-0144 | aa/01 | 40 |
| 550A | 5R0191 | • • VANE - 2.5 STAGE, ASSEMBLY OF (O/C) POST SBE72-0144 | ab/02 | 40 |
| 551 | CCR264CS3-3 | • • • RIVET 11815 | aa-ab/02 | 2 |
| 552 | MS21087L3 | • • • NUT - PLATE, SELF LOCKING 96906 | aa-ab/02 | 1 |
| 565 | 5R0147 | • • VANE - 2.5 STAGE, ASSEMBLY OF (NOM) PRE SBE72-0144 | aa/01 | 40 |
| 565A | 5R0192 | • • VANE - 2.5 STAGE, ASSEMBLY OF (NOM) POST SBE72-0144 | ab/02 | 40 |
| 566 | CCR264CS3-3 | • • • RIVET 11815 | aa-ab/02 | 2 |
| 567 | MS21087L3 | • • • NUT - PLATE, SELF LOCKING 96906 | aa-ab/02 | 1 |
| 580 | 5R0149 | • • VANE - 2.5 STAGE, ASSEMBLY OF (U/C) PRE SBE72-0144 | aa/01 | 40 |
| 580A | 5R0193 | • • VANE - 2.5 STAGE, ASSEMBLY OF (U/C) POST SBE72-0144 | ab/02 | 40 |
| 581 | CCR264CS3-3 | • • • RIVET 11815 | aa-ab/02 | 2 |
| 582 | MS21087L3 | • • • NUT - PLATE, SELF LOCKING 96906 | aa-ab/02 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

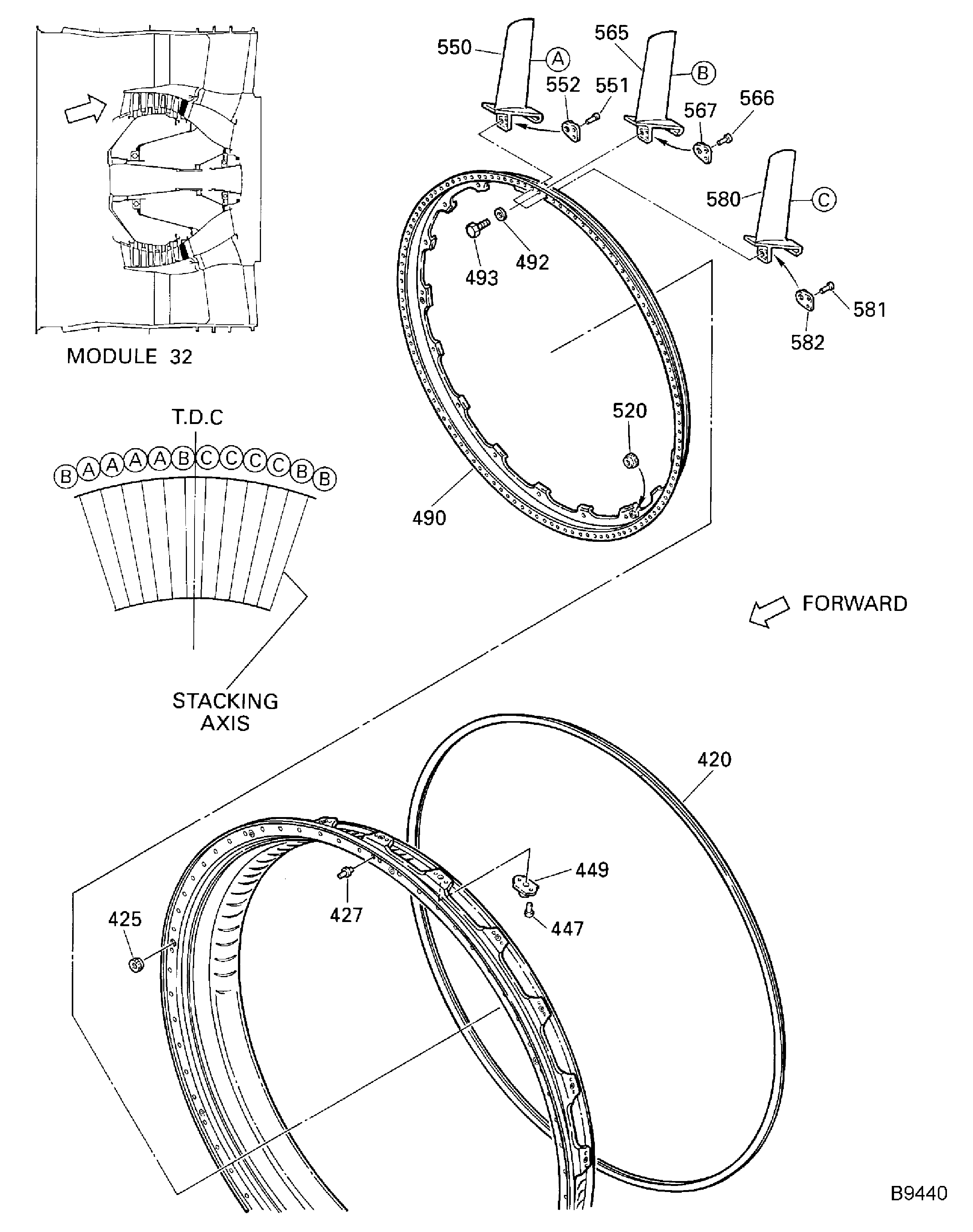

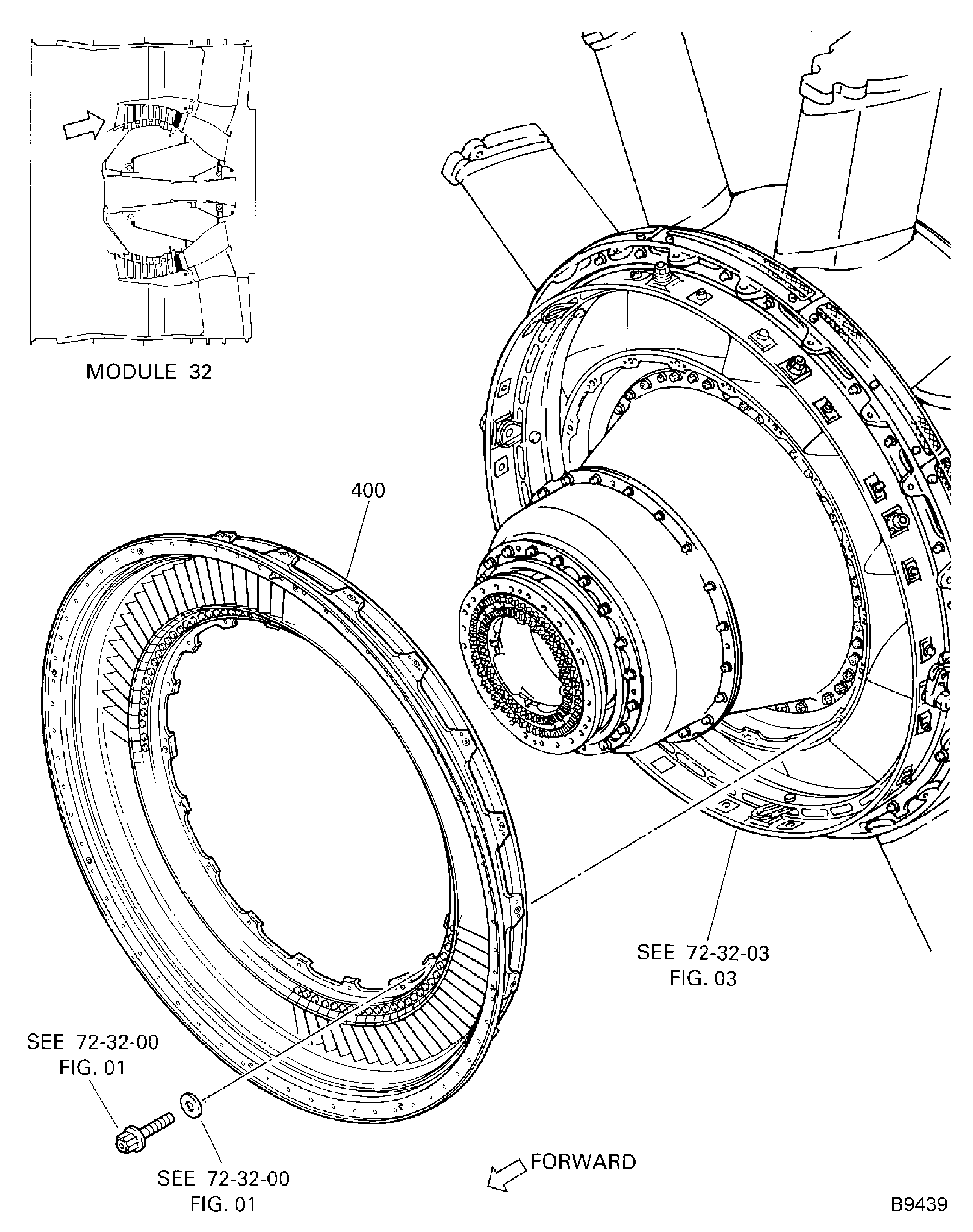

Figure: ENGINE-STAGE 2.5 LP COMPRESSOR VANES
LP COMPRESSOR STAGE 2.5 VANES
LP COMPRESSOR STAGE 2.5 VANES
