| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| - | B72328003 | ENGINE-LP COMPRESSOR STAGE 1.5,2 AND 2.5 ASSY | aa | |
| 210 | 5R0152 | • PLATE, LOCK | aa/01 | 2 |
| 210A | 5R0152 | • PLATE, LOCK | aa/02 | 2 |
| 220 | 5R0151 | • PLATE, RETAINING | aa/01 | 8 |
| 220A | 5R0151 | • PLATE, RETAINING | aa/02 | 8 |
| 225 | 5R0154 | • PLATE, LOCK | aa/01 | 2 |
| 225A | 5R0154 | • PLATE, LOCK | aa/02 | 2 |
| 235 | 5R0153 | • PLATE, RETAINING | aa/01 | 8 |
| 235A | 5R0153 | • PLATE, RETAINING | aa/02 | 8 |
| 240 | 5R0158 | • PLATE, LOCK | aa/01 | 2 |
| 240A | 5R0158 | • PLATE, LOCK | aa/02 | 2 |
| 250 | 5R0157 | • PLATE, RETAINING | aa/01 | 8 |
| 250A | 5R0157 | • PLATE, RETAINING | aa/02 | 8 |
| 260 | 5R0156 | • PLATE, LOCK | aa/01 | 2 |
| 260A | 5R0156 | • PLATE, LOCK | aa/02 | 2 |
| 265 | 5R0155 | • PLATE, RETAINING | aa/01 | 8 |
| 265A | 5R0155 | • PLATE, RETAINING | aa/02 | 8 |
| 500 | 5R0350 | • RIVET, TUBLAR | aa/03 | 1 |
| 510 | 5R0351 | • WEIGHT, COUNTER BALANCE | aa/03 | 1 |
| 512 | 5R0363 | • WEIGHT, COUNTER BALANCE | aa/03 | 1 |
| 514 | 5R0364 | • WEIGHT, COUNTER BALANCE | aa/03 | 1 |
| 516 | 5R0365 | • WEIGHT, COUNTER BALANCE | aa/03 | 1 |
| 550 | 5R0350 | • RIVET, TUBLAR | aa/03 | 1 |
| 560 | 5R0351 | • WEIGHT, COUNTER BALANCE | aa/03 | 1 |
| 562 | 5R0364 | • WEIGHT, COUNTER BALANCE | aa/03 | 1 |
| 564 | 5R0364 | • WEIGHT, COUNTER BALANCE | aa/03 | 1 |
| 566 | 5R0365 | • WEIGHT, COUNTER BALANCE | aa/03 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

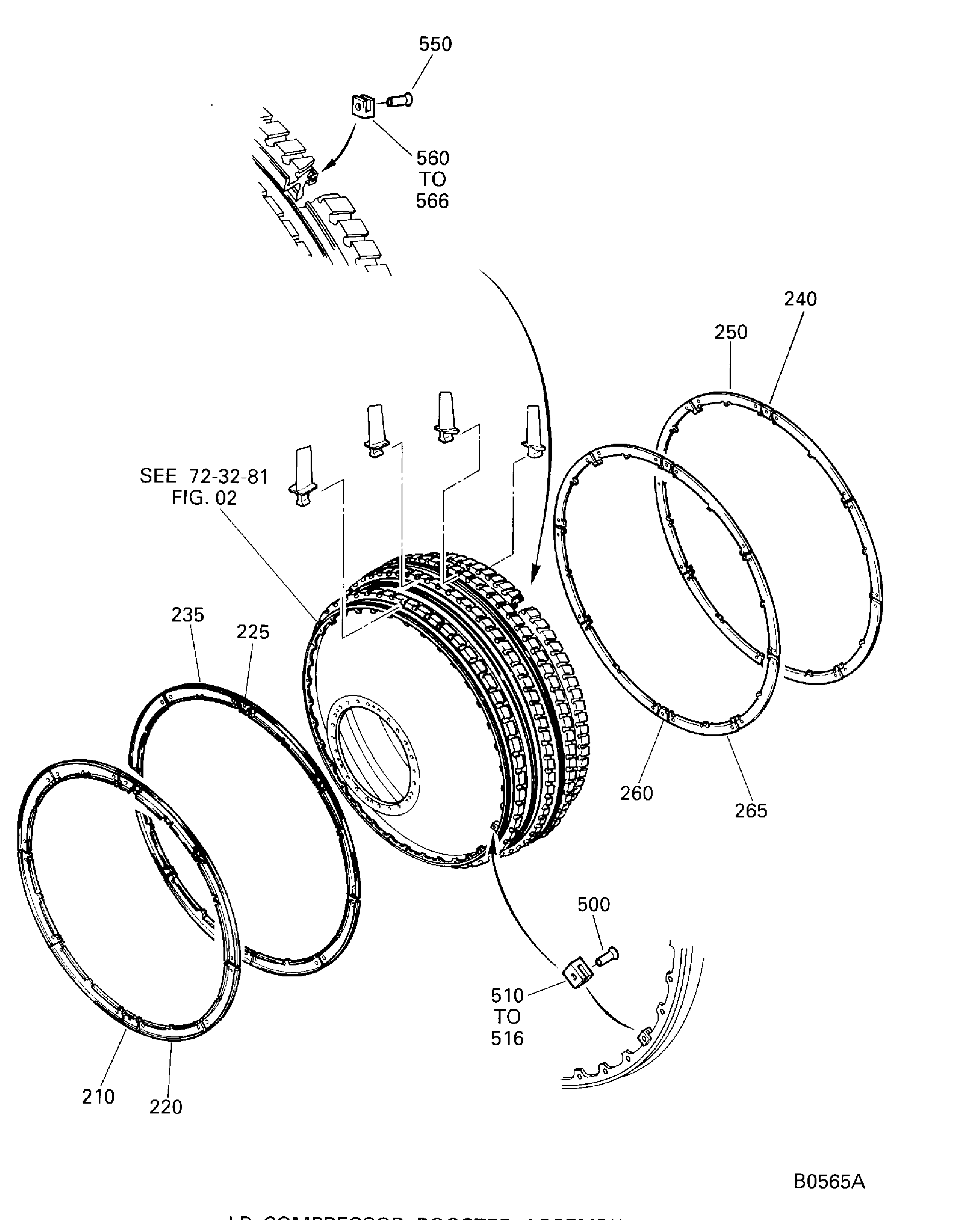

Figure: LPC Assembly
LPC Assembly
