DMC:V2500-A5-72-38-11-01A-941A-DIssue No:002.00Issue Date:2015-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72381101 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, INLET CONE, PRE SBE70-0484 | aa | |
| - | SBE0484-01 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, INLET CONE, PRE SBE70-0505 | ab | |
| - | SBE0505-01 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, INLET CONE, PRE SBE72-0318 | ac | |
| - | SBE0318-01 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, INLET CONE, PRE SBE70-0786 | ad | |
| - | SBE0786-01 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, INLET CONE, PRE SBE70-0787 | ae | |
| - | SBE0787-01 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, INLET CONE | af | |
| 100 | 5A0017 | • FAIRING - INLET CONE PRE SBE72-0318 | aa-af/01 | 1 |
| 100A | 5A0017 | • FAIRING - INLET CONE | aa-af/02 | 1 |
| 100B | 5A1833 | • FAIRING - ASSY INLET CONE POST SBE72-0318 PRE SBE70-0787 | ad-ae/03 | 1 |
| 100C | 5A1834 | • FAIRING - ASSY INLET CONE POST SBE70-0787 | af/03 | 1 |
| 110 | 5A1255 | • • SEAL, STRIP POST SBE72-0318 PRE SBE70-0786 | ad-af/03 | 1 |
| 110A | 5A1837 | • • SEAL - STRIP POST SBE70-0786 | ae-af/03 | 1 |
| 130 | AS24120 | • BOLT, .3125 DIA X 1.250 U1653 PRE SBE70-0505 | aa-ab/01 | 6 |
| 130A | AS24120 | • BOLT, .3125 DIA X 1.250 U1653 | aa-af/02 | 6 |
| 130B | AS24120 | • BOLT, .3125 DIA X 1.250 U1653 POST SBE70-0505 | ac-af/03 | 6 |
| 200 | 5A1452 | • CONE - ASSY INLET PRE SBE70-0484 | aa/01 | 1 |
| 200A | 5A1733 | • CONE - ASSY POST SBE70-0484 | ab-af/01 | 1 |
| 200B | 5A1733 | • CONE - ASSY | aa-af/02 | 1 |
| 215 | 4W2623 | • WASHER | aa-af/01 | 18 |
| 215A | 4W2623 | • WASHER | aa-af/02 | 18 |
| 220 | AS24120 | • BOLT, .3125 DIA X 1.250 U1653 PRE SBE70-0505 | aa-ab/01 | 18 |
| 220A | AS24120 | • BOLT, .3125 DIA X 1.250 U1653 | aa-af/02 | 18 |
| 220B | AS21120 | • BOLT, .3125 DIA X 1.250 U1653 POST SBE70-0505 | ac-af/03 | 18 |
| 230 | 5A0005 | • • HOLDER - TIP INLET CONE | aa-af/03 | 1 |
| 240 | 5A0016 | • • TIP - INLET CONE | aa-af/03 | 1 |
| -270 | 5A1453 | • • CONE - A/O INLET | aa-af/02 | REF |
| -270A | 5A1734 | • • CONE - A/O INLET | aa-af/03 | REF |
| 280 | 5A0013 | • • • PIN - DOWEL | aa-af/03 | 6 |
| 290 | AS20763 | • • • RING - RETAINING U1653 | aa-af/03 | 6 |
| 300 | 5A1416 | • • • SEGMENT - LOCATING | aa-af/03 | 6 |
| 400 | 5A0018 | • WEIGHT - BALANCING TRIM 2.5, .088 OZ | aa-af/03 | 1 |
| 405 | 5A0019 | • WEIGHT - BALANCING TRIM 5, .176 OZ | aa-af/03 | 1 |
| 410 | 5A0020 | • WEIGHT - BALANCING TRIM 7.5, .265 OZ | aa-af/03 | 1 |
| 415 | 5A0021 | • WEIGHT - BALANCING TRIM 10, .353 OZ | aa-af/03 | 1 |
| 420 | 5A0014 | • WEIGHT - BALANCING TRIM 12.5, .441 OZ | aa-af/03 | 1 |
| 440 | 5A0018 | • WEIGHT - BALANCING TRIM 2.5, .088 OZ | aa-af/03 | 1 |
| 445 | 5A0019 | • WEIGHT - BALANCING TRIM 5, .176 OZ | aa-af/03 | 1 |
| 450 | 5A0020 | • WEIGHT - BALANCING TRIM 7.5, .265 OZ | aa-af/03 | 1 |
| 455 | 5A0021 | • WEIGHT - BALANCING TRIM 10, .353 OZ | aa-af/03 | 1 |
| 460 | 5A0014 | • WEIGHT - BALANCING TRIM 12.5, .441 OZ | aa-af/03 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

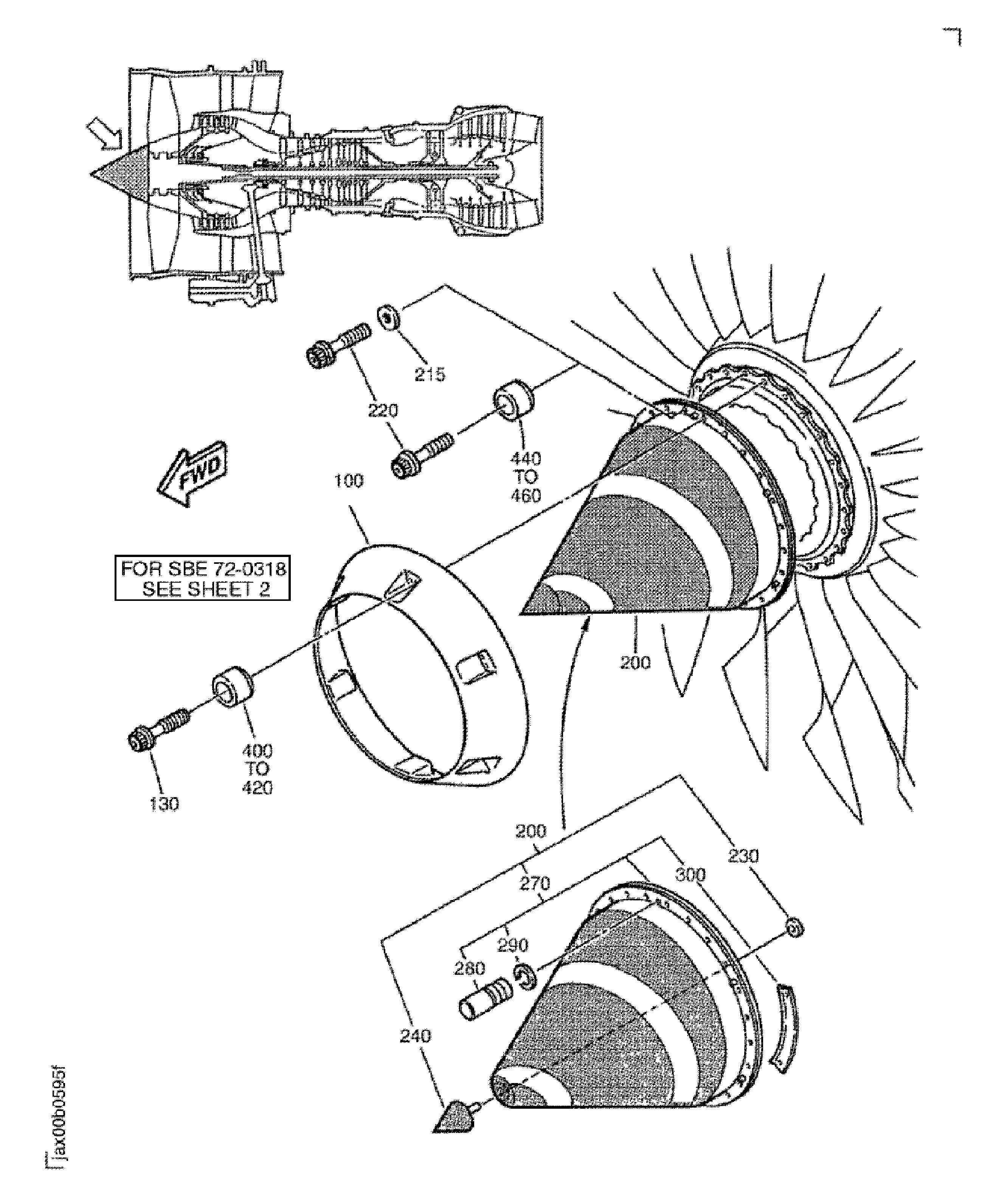

Figure: Inlet Cone Assembly And Inlet Cone Fairing
Inlet Cone Assembly And Inlet Cone Fairing
Inlet Cone Assembly And Inlet Cone Fairing
