V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| - | B72400005 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM, PRE SBE75-0060 | aa | |
| - | SBE0060-01 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM, PRE SBE70-0574 | ab | |
| - | SBE0574-01 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM | ac | |
| 020 | 4W0471 | • BOLT, .3125 DIA X 1.125 | aa-ac/01 | 100 |
| 040 | 4W0003 | • NUT - .3125 DIA | aa-ac/01 | 100 |
| 140 | 2A1485 | • BRACKET, TCA NO.1 | aa-ac/01 | 1 |
| 160 | 5W0101 | • BRACKET | aa-ac/01 | 1 |
| 180 | 5W0101 | • BRACKET | aa-ac/01 | 1 |
| 250 | 2A0803 | • BRACKET, TCA NO.2 | aa-ac/01 | 1 |
| 270 | 5W0101 | • BRACKET | aa-ac/01 | 1 |
| 300 | 5T8121 | • BRACKET ALT 5T8098 PRE SBE70-0574 | aa-ab/02 | 1 |
| -300A | 5T8098 | • BRACKET ALT 5T8121 PRE SBE70-0574 | aa-ab/02 | REF |
| 300B | 5T8121 | • BRACKET ALT 6A6589 POST SBE70-0574 | ac/03 | 1 |
| 300C | 5T8098 | • BRACKET ALT 5T8121 POST SBE70-0574 | ac/03 | 1 |
| 300D | 6A6589 | • BRACKET ALT 5T8098 POST SBE70-0574 | ac/01 | 1 |
| 340 | 5T8122 | • BRACKET ALT 5T8099 PRE SBE70-0574 | aa-ab/02 | 1 |
| -340A | 5T8099 | • BRACKET ALT 5T8122 PRE SBE70-0574 | aa-ab/02 | REF |
| 340B | 5T8122 | • BRACKET ALT 6A6590 POST SBE70-0574 | ac/03 | 1 |
| 340C | 5T8099 | • BRACKET ALT 5T8122 POST SBE70-0574 | ac/03 | 1 |
| 340D | 6A6590 | • BRACKET ALT 5T8099 POST SBE70-0574 | ac/01 | 1 |
| 360 | 5W8346 | • BRACKET | aa-ac/01 | 1 |
| 380 | 2A0805 | • BRACKET, TCA NO.3 | aa-ac/01 | 1 |
| 400 | 5W8397 | • BRACKET | aa-ac/01 | 1 |
| 420 | 2A1474 | • BRACKET, TCA NO.4 | aa-ac/01 | 1 |
| 440 | 5W8397 | • BRACKET | aa-ac/01 | 1 |
| 460 | 5W8397 | • BRACKET | aa-ac/01 | 1 |
| 500 | 5W2099 | • BRACKET, VALVE ACC ASSY OF PRE SBE75-0060 | aa/02 | 1 |
| 500A | 6A6487 | • BRACKET, VALVE ACC ASSY OF POST SBE75-0060 PRE SBE70-0574 | ab/02 | 1 |
| 500B | 5W2099 | • BRACKET, VALVE ACC ASSY OF | aa-ac/01 | 1 |
| 500C | 6A6487 | • BRACKET, VALVE ACC ASSY OF ALT 6A6591 POST SBE70-0574 | ac/01 | 1 |
| 500D | 6A6591 | • BRACKET, ASSY ALT 6A6487 POST SBE70-0574 | ac/01 | 1 |
| 507 | VTB12351 | • • • BEARING - SPHERICAL 06710 ALT P25001 POST SBE75-0060 | ab-ac/01 | 1 |
| 507A | P25001 | • • • BEARING - SPHERICAL 57606 ALT VTB12351 POST SBE75-0060 | ab-ac/01 | 1 |
| 520 | 2A0290 | • BRACKET, MANIFOLD SUPPORT | aa-ac/01 | 4 |
| 525 | MS20427M3-4 | • • RIVET, 100 DEGREE C/S 96906 | aa-ac/01 | 2 |
| 530 | MS21048-3 | • • NUT, ANCHOR TWO-LUG PLATE 96906 | aa-ac/01 | 1 |
| 550 | 5W2241 | • BRACKET PRE SBE70-0574 | aa-ac/01 | 1 |
| 550A | 6A6592 | • BRACKET ALT 5W2241 POST SBE70-0574 | ac/01 | 1 |
| 550B | 5W2241 | • BRACKET ALT 6A6592 POST SBE70-0574 | ac/01 | 1 |
| 570 | 5W2237 | • BRACKET PRE SBE75-0060 | aa-ac/02 | 1 |
| 570A | 6A6489 | • BRACKET POST SBE75-0060 PRE SBE70-0574 | ab/02 | 1 |
| 570B | 5W2237 | • BRACKET | aa-ac/03 | 1 |
| 570C | 6A6489 | • BRACKET ALT 6A6593 POST SBE70-0574 | ac/01 | 1 |
| 570D | 6A6593 | • BRACKET ALT 6A6489 POST SBE70-0574 | ac/01 | 1 |
| 582 | 5W2097 | • • BEARING PRE SBE75-0060 | aa/01 | 1 |
| -582A | P25000 | • • BEARING, ASSEMBLY 57606 ALT VTB12350E POST SBE75-0060 | ab-ac/01 | REF |
| 584 | VTB12351 | • • • BEARING - SPHERICAL 06710 ALT P25001 POST SBE75-0060 | ab-ac/01 | 1 |
| 584A | P25001 | • • • BEARING - SPHERICAL 57606 ALT VTB12351 POST SBE75-0060 | ab-ac/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

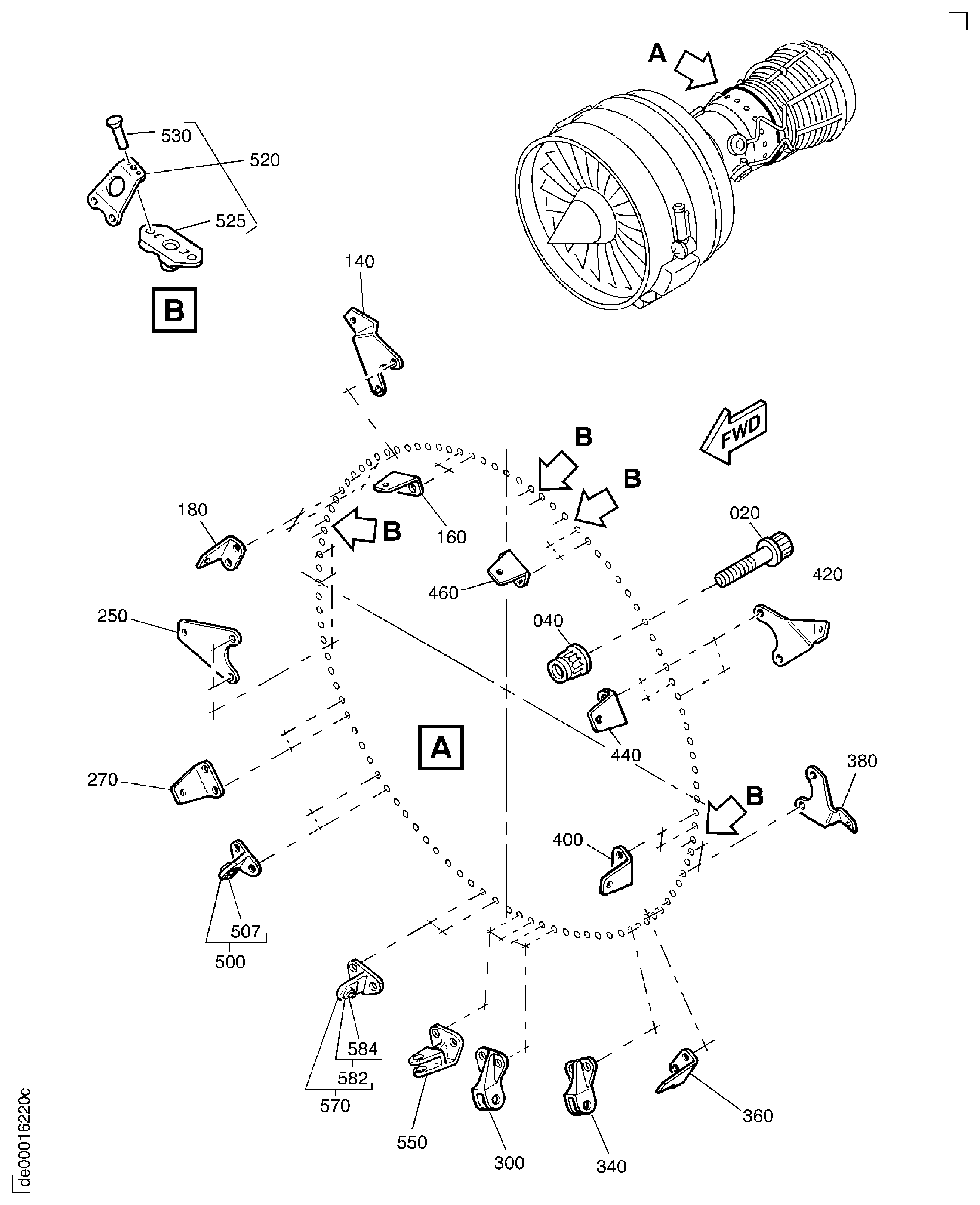

Figure: HPC Module - Attaching Parts
HPC Module - Attaching Parts
