DMC:V2500-A5-72-41-00-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72410002 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES | aa | ||
| 100 | 6A4137 | • COVER - ASSY OF,BLANK,B/SCOPE | aa | 3 |
| 102 | 4W0166 | • BOLT - .250 DIA X .750 | aa | 9 |
| 108 | 6A4139 | • GASKET - CORRUJOINT | aa | 3 |
| -110 | NND3553 | • • PLUG | aa | REF |
| -115 | NND3554 | • • FLANGE | aa | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

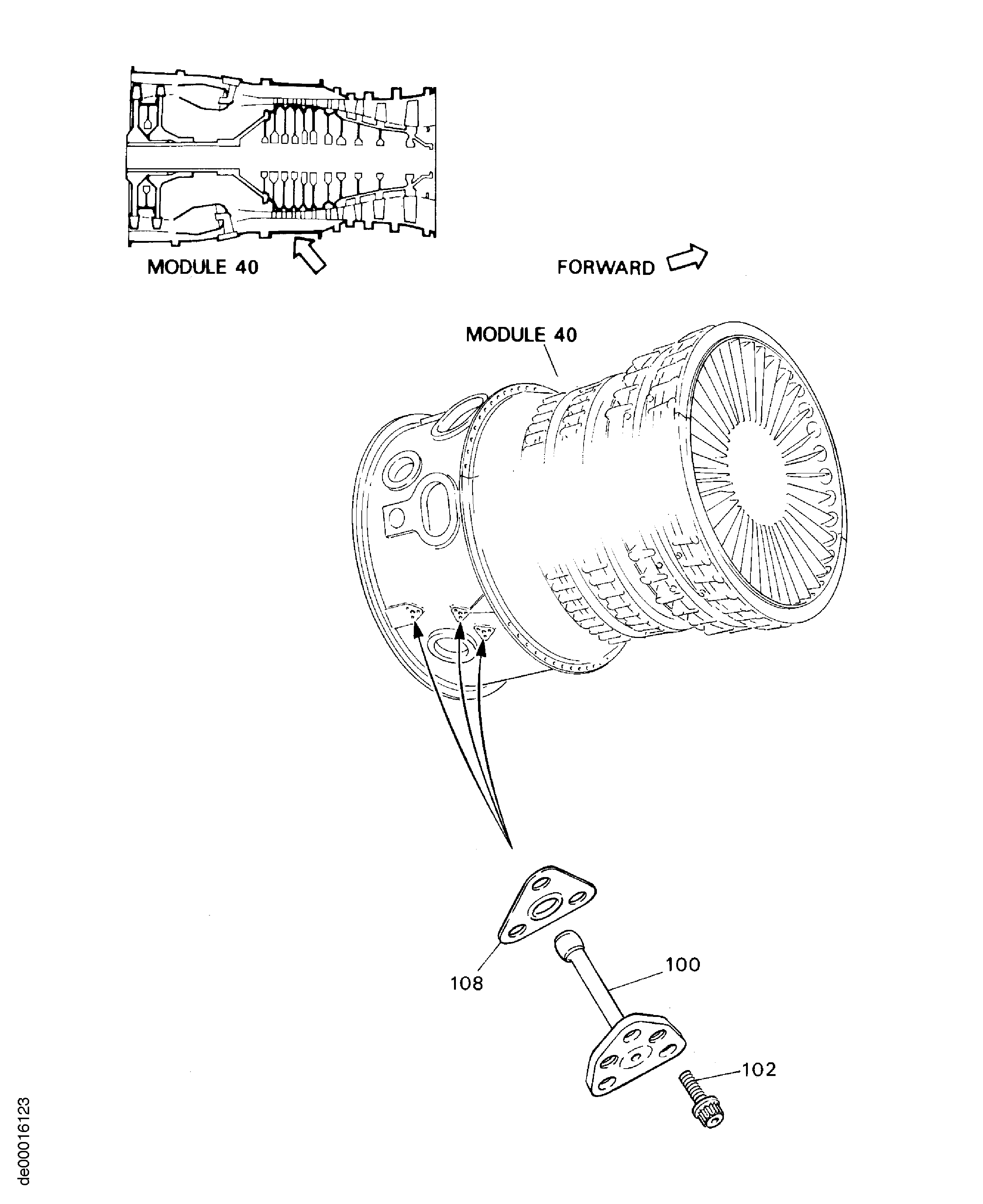

Figure: ENGINE-SECURING FEATURES-HP COMPRESSOR CASES
SECURING FEATURES - HP COMPRESSOR CASES
