DMC:V2500-A5-72-41-00-04A-941A-DIssue No:002.00Issue Date:2017-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| - | B72410004 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE74-0001 | aa | |
| - | SBE0001-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES | ab | |
| 600 | 5T8259 | • BRACKET, SUPPORT, UPPER PRE SBE74-0001 | aa/01 | 1 |
| 600A | 6A5661 | • BRACKET | aa-ab/01 | 1 |
| 600B | 6A5960 | • BRACKET | aa-ab/01 | 1 |
| 600C | 6A5968 | • BRACKET POST SBE74-0001 | aa-ab/02 | 1 |
| 600D | 6A5968 | • BRACKET POST SBE74-0001 | ab/01 | 1 |
| 620 | 6A5630 | • BRACKET | aa-ab/01 | 1 |
| 620A | 6A5970 | • BRACKET POST SBE74-0001 | ab/02 | 1 |
| 620B | 6A5970 | • BRACKET POST SBE74-0001 | ab/01 | 1 |
| 650 | 5T8260 | • BRACKET, SUPPORT, LOWER PRE SBE74-0001 | aa/01 | 1 |
| 650A | 6A5662 | • BRACKET | aa-ab/01 | 1 |
| 650B | 6A5961 | • BRACKET | aa-ab/01 | 1 |
| 650C | 6A5969 | • BRACKET POST SBE74-0001 | ab/02 | 1 |
| 650D | 6A5969 | • BRACKET POST SBE74-0001 | ab/01 | 1 |
| 670 | 6A5630 | • BRACKET | aa-ab/01 | 1 |
| 670A | 6A5970 | • BRACKET POST SBE74-0001 | ab/02 | 1 |
| 670B | 6A5970 | • BRACKET POST SBE74-0001 | ab/01 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

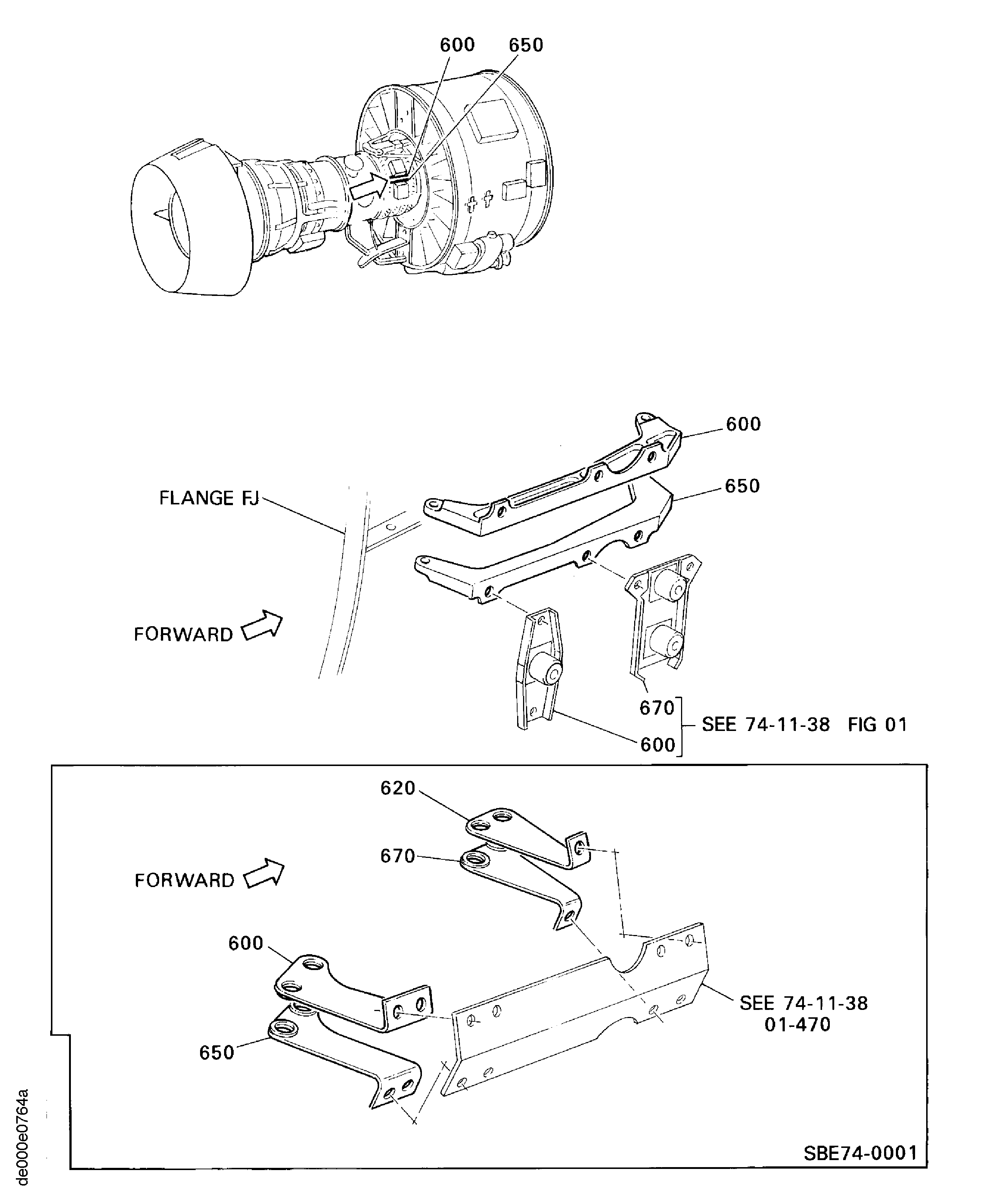

Figure: HPC Assembly
HPC Assembly
