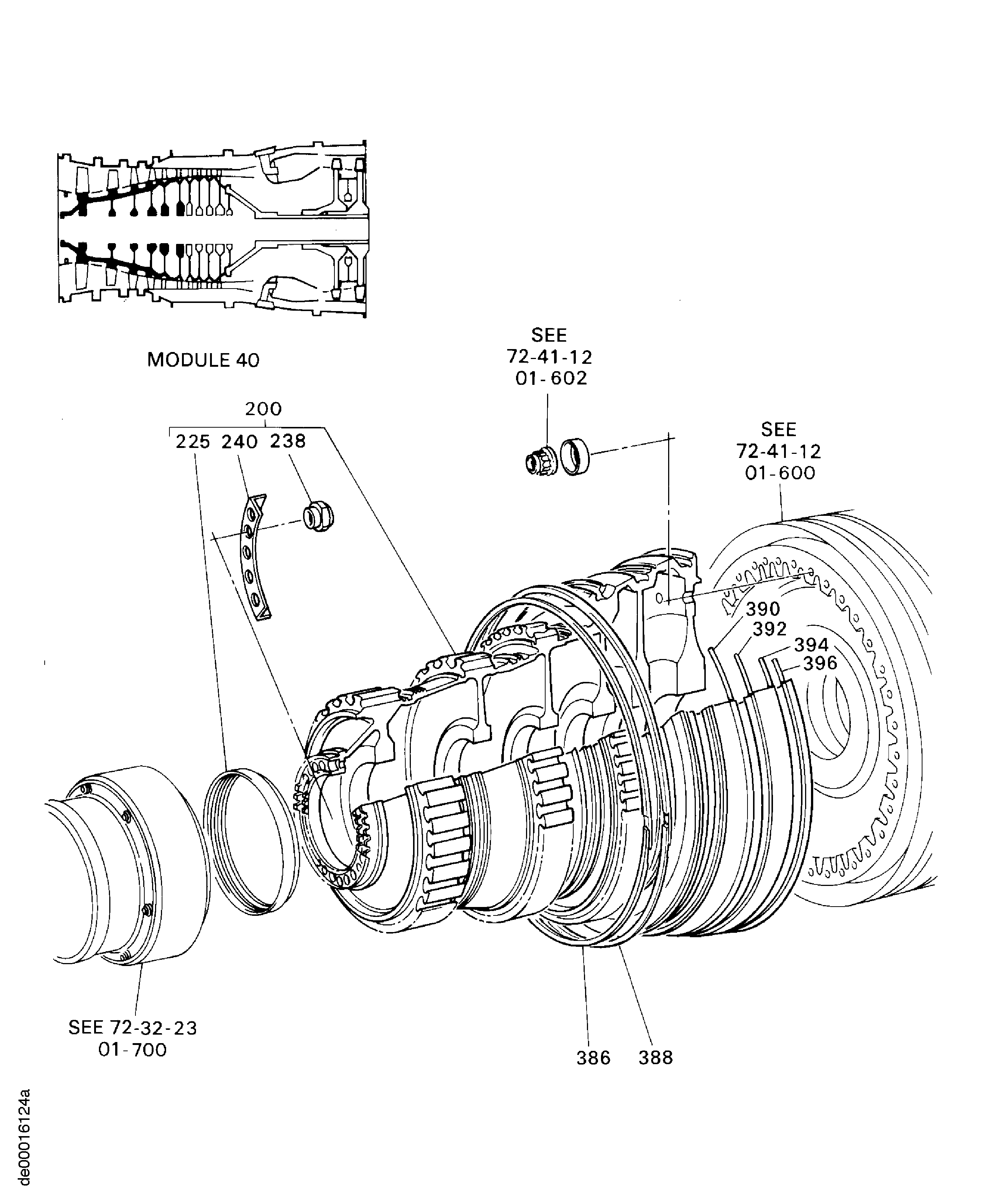

HPC Stage 3 - 8 Drum Disk And Wire Seals

DMC:V2500-A5-72-41-11-01A-941A-D|Issue No:004.00|Issue Date:2019-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
-000B72411101ENGINE - HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0178
aa
-000SBE0178-01ENGINE - HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0254
ab
-000SBE0254-01ENGINE - HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0289
ac
-000SBE0289-01ENGINE - HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0304
ad
-000SBE0304-01ENGINE - HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0300
ae
-000SBE0300-01ENGINE - HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0376
af
-000SBE0376-01ENGINE - HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0472
ag
-000SBE0472-01ENGINE - HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0470
ah
-000SBE0470-01ENGINE - HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0589
ai
-000SBE0589-01ENGINE - HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0606
aj
-000SBE0606-01ENGINE - HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0605
ak
-000SBE0605-01ENGINE - HP COMPRESSOR DISCS (STAGES 3-8)
al
-000SBE0642-01ENGINE-HP COMPRESSOR DISCS (STAGES 3-8)
am
2002006A4900• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
PRE SBE72-0178
aa/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03
200200A6A5467• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0178
PRE SBE72-0254
ab/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03
200200B6A6473• DRUM - HPC 3RD THRU 8TH STAGE, FITTING
POST SBE72-0254
PRE SBE72-0300
ac-ae/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03
200200C6A6473• DRUM - HPC 3RD THRU 8TH STAGE, FITTING
aa-al/021
V2533 AQ02, V2533 AQ03
200200D6A7401• DISC - HPC, 3RD THRU 8TH, ASSEMBLY OF
POST SBE72-0300
PRE SBE72-0376
af/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200E6A7383• DRUM - HPC, 3RD THRU 8TH, ASSEMBLY OF
POST SBE72-0304
ae-al/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03
200200F6A7384• DRUM - HPC, 3RD THRU 8TH, ASSEMBLY OF
POST SBE72-0304
ae-al/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03
200200G6A7385• DRUM - HPC, 3RD THRU 8TH, ASSEMBLY OF
POST SBE72-0304
ae-al/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03
200200H6A7705• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0376
PRE SBE72-0470
ag-ah/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200I6A8316• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0470
PRE SBE72-0606
ai-aj/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200J6B1404• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
ALT 6B1386
POST SBE72-0606
PRE SBE72-0605
ak/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200K6B1404• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
ALT 6B1386
POST SBE72-0606
ak-al/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200L6B1380• DRUM - HPC, 3RD THRU 8TH STAGE,, ASSEMBLY OF
POST SBE72-0606
ak-al/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
200200M6B1384• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0606
PRE SBE72-0605
ak/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200N6B1384• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0606
ak-al/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200P6B1385• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0606
PRE SBE72-0605
ak/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200Q6B1385• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0606
ak-al/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200R6B1386• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
ALT 6B1385
POST SBE72-0606
PRE SBE72-0605
ak/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200S6B1386• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
ALT 6B1385
POST SBE72-0606
ak-al/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200T6B1387• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0606
ak-al/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
200200U6B1379• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0606
ak-al/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
200200V6B1391• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0605
al/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
200200W6B1392• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0605
al/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
200200X6B1393• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
ALT 6B1405
POST SBE72-0605
al/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
200200Y6B1405• DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0605
al/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
2252256A1124• • SLEEVE - SHRINK
aa-al/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
238238AS27862• • NUT - SELF LOCKING, SHANK
U1653
PRE SBE72-0606
aa-al/0620
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
238238AAS27862• • NUT - SELF LOCKING, SHANK
U1653
POST SBE70-0353
*****/021
V2533 AQ02, V2533 AQ03
238238BAS63492• • NUT - SELF LOCKING, SHANK
U1653
POST SBE72-0606
ak-al/0320
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
2402406A1130• • PLATE - ANTI FRET
POST SBE70-0353
*****/061
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
240240A6A1130• • PLATE - ANTI FRET
aa-al/024
V2533 AQ02, V2533 AQ03
-2452456A5468• • DISC - HPC, 3RD THRU 8TH STAGE STAGE, ASSEMBLY OF
POST SBE72-0178
PRE SBE72-0254
ab/01REF
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03
-245245A6A6474• • DRUM - HPC 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0254
PRE SBE72-0300
ac-ae/01REF
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03
-245245B6A5468• • DISC - HPC, 3RD THRU 8TH STAGE STAGE, ASSEMBLY OF
aa-al/07REF
V2533 AQ02, V2533 AQ03
-245245C6A7402• • DISC - HPC, 3RD THRU 8TH, ASSEMBLY OF
POST SBE72-0300
PRE SBE72-0376
af/03REF
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
-245245D6A7706• • DISC - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0376
PRE SBE72-0470
ag-ah/04REF
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
-245245E6A8317• • DISC - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
POST SBE72-0470
ai-al/03REF
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
-285285NND6232• • • DISK - 6TH STAGE
aa-al/03REF
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
-295295NND6233• • • DISC - 7TH STAGE
aa-al/04REF
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
-305305NND6234• • • DISC - 8TH STAGE
aa-al/04REF
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
3863866A1146• WIRE - SEAL, FRONT, 6TH STAGE
PRE SBE72-0472
aa-al/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
386386AX6A8339• WIRE - SEAL, FRONT, 6TH STAGE
POST SBE72-0472
PRE SBE72-0589
PRE SBE72-0560
ah-ai/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
386386B6A1146• WIRE - SEAL, FRONT, 6TH STAGE
POST SBE72-0589
aj-al/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
386386C6A1146• WIRE - SEAL, FRONT, 6TH STAGE
POST SBE72-0642
am/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
3883886A1147• WIRE - SEAL, REAR, 6TH STAGE
PRE SBE72-0472
aa-al/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
388388AX6A8340• WIRE - SEAL, REAR, 6TH STAGE
POST SBE72-0472
POST SBE72-0589
PRE SBE72-0560
ah-ai/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
388388B6A1147• WIRE - SEAL, REAR, 6TH STAGE
POST SBE72-0589
aj-al/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
388388C6A1147• WIRE - SEAL, REAR, 6TH STAGE
POST SBE72-0642
am/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
3903906A4915• WIRE - SEAL, FRONT, 7TH STAGE
PRE SBE72-0289
aa-al/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
390390A6A7358• WIRE - SEAL, FRONT, 7th STAGE
POST SBE72-0289
PRE SBE72-0300
af-ae/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
390390B6A7386• WIRE - SEAL, FRONT, 7TH STAGE
POST SBE72-0300
PRE SBE72-0472
af-ag/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
390390CX6A8341• WIRE - SEAL, FRONT, 7TH STAGE
POST SBE72-0472
PRE SBE72-0589
PRE SBE72-0560
ah-ai/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
390390D6A7386• WIRE - SEAL, FRONT, 7TH STAGE
POST SBE72-0589
aj-al/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
390390E6A7386• WIRE - SEAL, FRONT, 7TH STAGE
POST SBE72-0642
am/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
3923926A4916• WIRE - SEAL, REAR, 7TH STAGE
PRE SBE72-0289
aa-ac/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
392392A6A7359• WIRE - SEAL, REAR, 7TH STAGE
POST SBE72-0289
PRE SBE72-0300
ad-ae/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
392392B6A7387• WIRE - SEAL, REAR, 7TH STAGE
POST SBE72-0300
PRE SBE72-0472
af-ag/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
392392C6A7381• WIRE - SEAL, REAR, 7TH STAGE
POST SBE72-0304
ae-al/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
392392DX6A8342• WIRE - SEAL, REAR, 7TH STAGE
POST SBE72-0472
PRE SBE72-0589
PRE SBE72-0560
ai/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
392392E6A7387• WIRE - SEAL, REAR, 7TH STAGE
POST SBE72-0589
aj-al/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
392392F6A7387• WIRE - SEAL, REAR, 7TH STAGE
POST SBE72-0642
am/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
3943946A4917• WIRE - SEAL, FRONT, 8TH STAGE
PRE SBE72-0289
aa-ac/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
394394A6A7360• WIRE - SEAL, FRONT, 8TH STAGE
POST SBE72-0289
PRE SBE72-0300
ad-ae/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
394394B6A7388• WIRE - SEAL, FRONT, 8TH STAGE
POST SBE72-0300
PRE SBE72-0472
af-ag/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
394394C6A7393• WIRE - SEAL, FRONT, 8TH STAGE
POST SBE72-0304
af-ag/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
394394DX6A8343• WIRE - SEAL, FRONT, 8TH STAGE
POST SBE72-0472
PRE SBE72-0589
PRE SBE72-0560
ah-ai/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
394394E6A7388• WIRE - SEAL, FRONT, 8TH STAGE
POST SBE72-0589
aj-al/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
394394F6A7388• WIRE - SEAL, FRONT, 8TH STAGE
POST SBE72-0642
am/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
3963966A4918• WIRE - SEAL, REAR, 8TH STAGE
PRE SBE72-0289
aa-al/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
396396A6A7361• WIRE - SEAL, REAR, 8th STAGE
POST SBE72-0289
PRE SBE72-0300
ad-ae/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
396396B6A7389• WIRE - SEAL, REAR, 8TH STAGE
POST SBE72-0300
PRE SBE72-0472
af-ag/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
396396CX6A8344• WIRE - SEAL, REAR, 8TH STAGE
POST SBE72-0472
PRE SBE72-0589
PRE SBE72-0560
ah-ai/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
396396D6A7389• WIRE - SEAL, REAR, 8TH STAGE
POST SBE72-0589
aj-al/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
396396E6A7389• WIRE - SEAL, REAR, 8TH STAGE
POST SBE72-0642
am/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: HPC Stage 3 - 8 Drum Disk And Wire Seals

HPC Stage 3 - 8 Drum Disk And Wire Seals

Change Type:

Corrected Effectivity.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:6A1124
Part Name:SLEEVE - SHRINK
Manufacturer Code:0AM53
Part Number:6A1130
Part Name:PLATE - ANTI FRET
Manufacturer Code:0AM53
Part Number:6A1146
Part Name:WIRE - SEAL, FRONT, 6TH STAGE
Manufacturer Code:0AM53
Part Number:6A1147
Part Name:WIRE - SEAL, REAR, 6TH STAGE
Manufacturer Code:0AM53
Part Number:6A4900
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A4915
Part Name:WIRE - SEAL, FRONT, 7TH STAGE
Manufacturer Code:0AM53
Part Number:6A4916
Part Name:WIRE - SEAL, REAR, 7TH STAGE
Manufacturer Code:0AM53
Part Number:6A4917
Part Name:WIRE - SEAL, FRONT, 8TH STAGE
Manufacturer Code:0AM53
Part Number:6A4918
Part Name:WIRE - SEAL, REAR, 8TH STAGE
Manufacturer Code:0AM53
Part Number:6A5467
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A5468
Part Name:DISC - HPC, 3RD THRU 8TH STAGE STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A6473
Part Name:DRUM - HPC 3RD THRU 8TH STAGE, FITTING
Manufacturer Code:0AM53
Part Number:6A6474
Part Name:DRUM - HPC 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7358
Part Name:WIRE - SEAL, FRONT, 7th STAGE
Manufacturer Code:0AM53
Part Number:6A7359
Part Name:WIRE - SEAL, REAR, 7TH STAGE
Manufacturer Code:0AM53
Part Number:6A7360
Part Name:WIRE - SEAL, FRONT, 8TH STAGE
Manufacturer Code:0AM53
Part Number:6A7361
Part Name:WIRE - SEAL, REAR, 8th STAGE
Manufacturer Code:0AM53
Part Number:6A7381
Part Name:WIRE - SEAL, REAR, 7TH STAGE
Manufacturer Code:0AM53
Part Number:6A7383
Part Name:DRUM - HPC, 3RD THRU 8TH, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7384
Part Name:DRUM - HPC, 3RD THRU 8TH, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7385
Part Name:DRUM - HPC, 3RD THRU 8TH, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7386
Part Name:WIRE - SEAL, FRONT, 7TH STAGE
Manufacturer Code:0AM53
Part Number:6A7387
Part Name:WIRE - SEAL, REAR, 7TH STAGE
Manufacturer Code:0AM53
Part Number:6A7388
Part Name:WIRE - SEAL, FRONT, 8TH STAGE
Manufacturer Code:0AM53
Part Number:6A7389
Part Name:WIRE - SEAL, REAR, 8TH STAGE
Manufacturer Code:0AM53
Part Number:6A7393
Part Name:WIRE - SEAL, FRONT, 8TH STAGE
Manufacturer Code:0AM53
Part Number:6A7401
Part Name:DISC - HPC, 3RD THRU 8TH, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7402
Part Name:DISC - HPC, 3RD THRU 8TH, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7705
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7706
Part Name:DISC - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A8316
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A8317
Part Name:DISC - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A8339
Part Name:WIRE - SEAL, FRONT, 6TH STAGE
Manufacturer Code:0AM53
Part Number:6A8340
Part Name:WIRE - SEAL, REAR, 6TH STAGE
Manufacturer Code:0AM53
Part Number:6A8341
Part Name:WIRE - SEAL, FRONT, 7TH STAGE
Manufacturer Code:0AM53
Part Number:6A8342
Part Name:WIRE - SEAL, REAR, 7TH STAGE
Manufacturer Code:0AM53
Part Number:6A8343
Part Name:WIRE - SEAL, FRONT, 8TH STAGE
Manufacturer Code:0AM53
Part Number:6A8344
Part Name:WIRE - SEAL, REAR, 8TH STAGE
Manufacturer Code:0AM53
Part Number:6B1379
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1380
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE,, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1384
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1385
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1386
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1387
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1391
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1392
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1393
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1404
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1405
Part Name:DRUM - HPC, 3RD THRU 8TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:AS27862
Part Name:NUT - SELF LOCKING, SHANK
Manufacturer Code:U1653
Part Number:AS63492
Part Name:NUT - SELF LOCKING, SHANK
Manufacturer Code:U1653
Part Number:NND6232
Part Name:DISK - 6TH STAGE
Manufacturer Code:0AM53
Part Number:NND6233
Part Name:DISC - 7TH STAGE
Manufacturer Code:0AM53
Part Number:NND6234
Part Name:DISC - 8TH STAGE
Manufacturer Code:0AM53
