DMC:V2500-A5-72-41-14-01A-941A-DIssue No:002.00Issue Date:2017-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72311301 | ENGINE - HP COMPRESSOR ROTATING AIR SEALS, PRE SBE72-0202 | aa | |
| - | SBE0202-01 | ENGINE-HP COMPRESSOR ROTATING AIR SEALS | ab | |
| 800 | 6A4392 | • SEAL, ROTATING - REAR POST SBE72-0202 | ab/03 | 1 |
| 800A | 6A5869 | • SEAL, ROTATING - REAR POST SBE72-0202 | ab/01 | 1 |
| 800B | 6A5869 | • SEAL, ROTATING - REAR | aa-ab/03 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

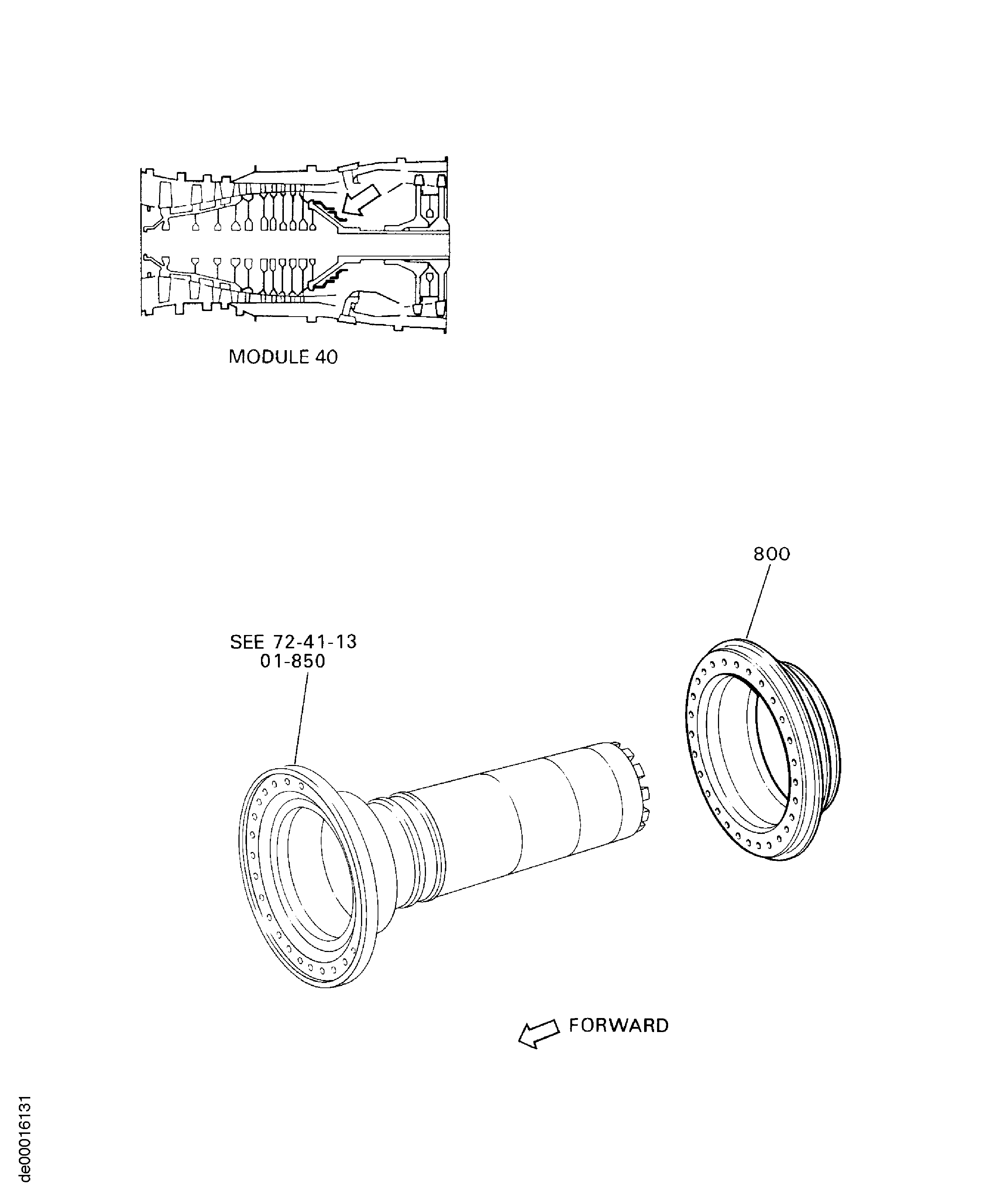

Figure: ENGINE-HP COMPRESSOR ROTATING AIR SEALS
ENGINE-HP COMPRESSOR ROTATING AIR SEALS
