DMC:V2500-A5-72-41-15-01A-941A-DIssue No:004.00Issue Date:2020-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72411501 | ENGINE - HP COMPRESSOR BLADES, PRE SBE72-0201 | aa | |
| - | SBE0201-01 | ENGINE - HP COMPRESSOR BLADES, PRE SBE70-0714 | ab | |
| - | SBE0714-01 | ENGINE - HP COMPRESSOR BLADES, PRE SBE70-0726 | ac | |
| - | SBE0726-01 | ENGINE - HP COMPRESSOR BLADES, PRE SBE72-0295 | ad | |
| - | SBE0295-01 | ENGINE - HP COMPRESSOR BLADES, PRE SBE72-0481 | ae | |
| - | SBE0481-01 | ENGINE - HP COMPRESSOR BLADES, PRE SBE72-0487 | af | |
| - | SBE0487-01 | ENGINE - HP COMPRESSOR BLADES, PRE SBE72-0490 AND PRE SBE72-0509 | ag | |
| - | SBE0490-01 | ENGINE - HP COMPRESSOR BLADES, PRE SBE72-0509 | ah | |
| - | SBE0509-01 | ENGINE - HP COMPRESSOR BLADES, PRE SBE72-0560 | ai | |
| - | SBE0560-01 | ENGINE - HP COMPRESSOR BLADES, PRE SBE72-0561 | aj | |
| - | SBE0561-01 | ENGINE - HP COMPRESSOR BLADES, PRE SBE72-0587 | ak | |
| - | SBE0587-01 | ENGINE - HP COMPRESSOR BLADES | al | |
| 050 | 6A1028 | • PLATE - RETAINING | aa-al/01 | 7 |
| 070 | 6A3597 | • PLATE - RETAINING, BLADE | aa-al/01 | 2 |
| 125 | 6A1029 | • PLATE - LOCKING PRE SBE72-0509 | aa-al/02 | 9 |
| 125A | 6A8524 | • PLATE - LOCKING POST SBE72-0509 | ai-al/01 | 9 |
| 195 | UP10822 | • PLUG - BALANCE, 3RD STAGE | aa-al/01 | 1 |
| 200 | 6A4188 | • BLADE - HPC ROTOR, 3RD STAGE PRE SBE72-0201 | aa/03 | 31 |
| 200A | 6A5942 | • BLADE - HPC ROTOR, 3RD STAGE PRE SBE70-0714 | aa-ab/03 | 31 |
| 200B | 6A5942 | • BLADE - HPC ROTOR, 3RD STAGE POST SBE72-0201 PRE SBE70-0714 | ab/04 | 31 |
| 200C | 6A7503 | • BLADE - HPC ROTOR, 3RD STAGE, ASSEMBLY OF POST SBE70-0714 PRE SBE70-0726 | ac/02 | 31 |
| 200D | 6A5942 | • BLADE - HPC ROTOR, 3RD STAGE POST SBE70-0726 PRE SBE72-0487 | ad-af/02 | 31 |
| 200E | 6A8398 | • BLADE - HPC ROTOR, 3RD STAGE (EDM ONLY) POST SBE72-0481 | af-al/02 | 31 |
| 200F | 6A8353 | • BLADE - HPC ROTOR, 3RD STAGE POST SBE72-0487 | af-al/01 | 31 |
| 200G | 6A8688 | • BLADE - HPC ROTOR, 3RD STAGE POST SBE72-0561 | ak-al/05 | 31 |
| 350 | 6A1033 | • PLATE - RETAINING, BLADE | aa-al/01 | 9 |
| 425 | 6A1034 | • PLATE - LOCKING PRE SBE72-0509 | aa-al/02 | 3 |
| 425A | 6A8525 | • PLATE - LOCKING POST SBE72-0509 | ai-al/01 | 3 |
| 500 | 6A4254 | • BLADE - HPC, 4TH STAGE, ASSEMBLY OF PRE SBE70-0714 | aa-al/02 | 38 |
| 500A | 6A7504 | • BLADE - HPT, 4TH STAGE, ASSEMBLY OF POST SBE70-0714 PRE SBE70-0726 | ac/02 | 38 |
| 500B | 6A4254 | • BLADE - HPC, 4TH STAGE, ASSEMBLY OF POST SBE70-0726 | ad-al/02 | 38 |
| 500C | 6A7635 | • BLADE - HPT, 4TH STAGE, ASSEMBLY OF POST SBE72-0295 PRE SBE72-0560 | ae-ai/02 | 38 |
| 500D | 6A8738 | • BLADE - HPT, 4TH STAGE, ASSEMBLY OF POST SBE72-0560 | aj-al/05 | 38 |
| 520 | 6A4256 | • • STRIP - SEALING (VRS6214) POST SBE70-0359 | *****/03 | 1 |
| 520A | 6A4256 | • • STRIP - SEALING PRE SBE72-0295 | aa-ad/02 | 1 |
| 520B | 6A7646 | • • STRIP - SEALING POST SBE72-0295 | ae-al/01 | 1 |
| 650 | 6A1038 | • PLATE - RETAINING, BLADE | aa-al/01 | 12 |
| 725 | 6A1039 | • PLATE - LOCKING PRE SBE72-0509 | aa-al/02 | 3 |
| 725A | 6A8526 | • PLATE - LOCKING POST SBE72-0509 | ai-al/01 | 3 |
| 800 | 6A7506 | • BLADE - HPT, 5TH STAGE, ASSEMBLY OF POST SBE70-0714 PRE SBE70-0726 | aa-al/02 | 64 |
| 800A | 6A4198 | • BLADE - HPC, 5TH STAGE, ASSEMBLY OF POST SBE70-0726 PRE SBE72-0490 | ad-ag/02 | 64 |
| 800B | 6A4198 | • BLADE - HPC, 5TH STAGE, ASSEMBLY OF PRE SBE70-0714 | aa-al/02 | 64 |
| 800C | 6A8451 | • BLADE - ASSEMBLY OF POST SBE72-0490 PRE SBE72-0560 | ah-ai/02 | 64 |
| 800D | 6A8736 | • BLADE - HPT, 5TH STAGE, ASSEMBLY OF POST SBE72-0560 PRE SBE72-0587 | aj-ak/05 | 64 |
| 800E | 6B1346 | • BLADE - HPT, 5TH STAGE, ASSEMBLY OF POST SBE72-0587 | al/05 | 64 |
| 820 | 6A4200 | • • STRIP (VRS6215) POST SBE70-0359 | *****/02 | 1 |
| 820A | 6A4200 | • • STRIP POST SBE72-0560 | aj-al/05 | 1 |
| 820B | 6A4200 | • • STRIP | aa-al/05 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

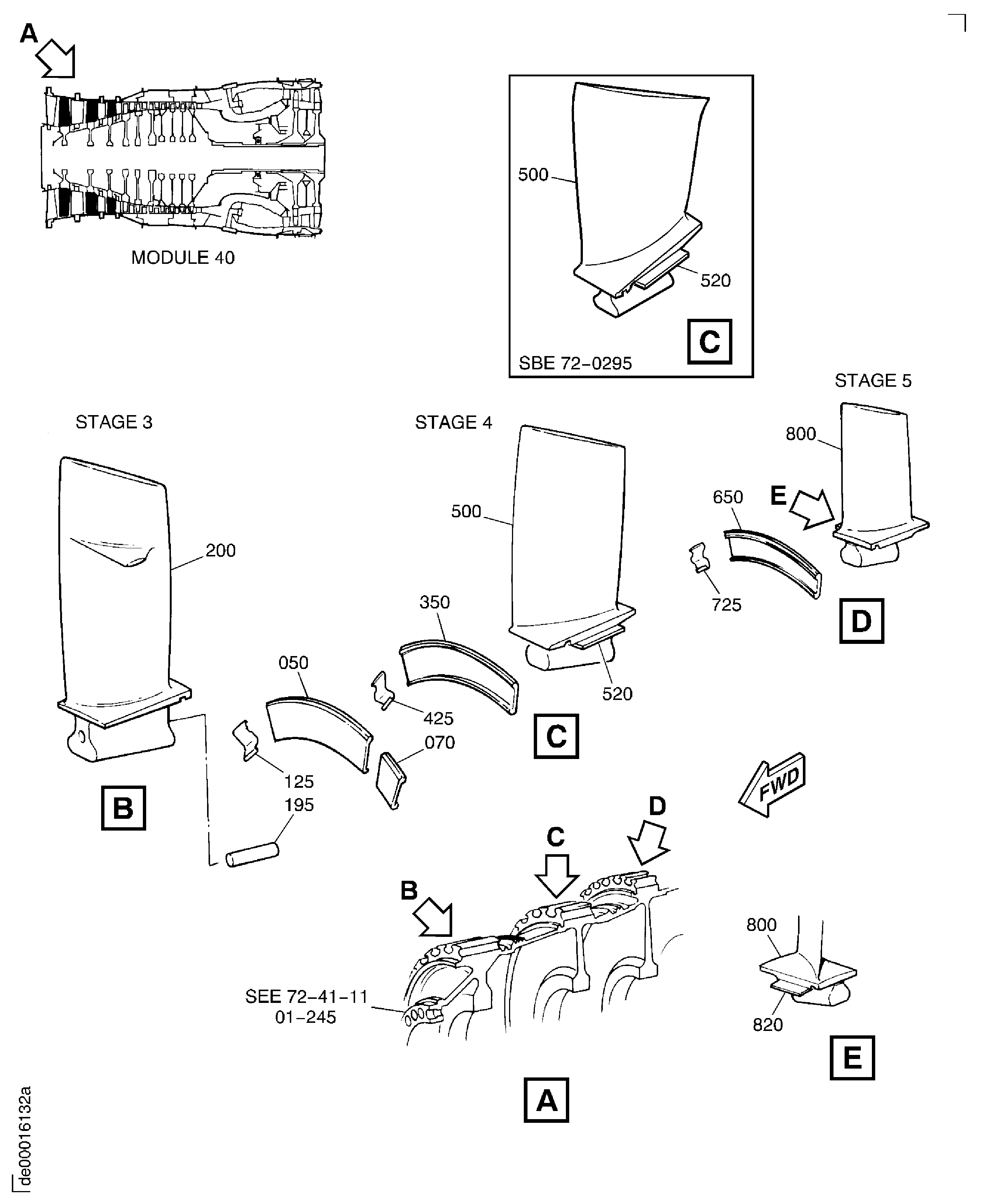

Figure: HPC Rotor Blades
HPC Rotor Blades
