DMC:V2500-A5-72-41-22-01A-941A-DIssue No:002.00Issue Date:2020-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72412201 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE72-0320 | aa | |
| - | SBE0320-01 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE70-0714 | ab | |
| - | SBE0714-01 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE70-0726 | ac | |
| - | SBE0726-01 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE72-0561 | ad | |
| - | SBE0561-01 | ENGINE - HP COMPRESSOR STATOR VANES | ae | |
| 350 | 6A4231 | • VANE - STOP, 6TH STAGE , COMPRESSPOR PRE SBE72-0320 | aa/01 | 4 |
| 350A | 6A7424 | • VANE - HPC, 6TH STAGE STOP POST SBE70-0726 | ad-ae/01 | 4 |
| 350B | 6A7481 | • VANE - 6TH STAGE STOP POST SBE70-0714 PRE SBE70-0726 | ac/01 | 4 |
| 350C | 6A7424 | • VANE - HPC, 6TH STAGE STOP POST SBE72-0320 PRE SBE70-0714 | ab/02 | 4 |
| 350D | 6A8767 | • VANE - STOP, 6TH STAGE POST SBE72-0561 | ae/03 | 4 |
| 400 | 6A4230C01 | • VANE PRE SBE72-0320 | aa/01 | 60 |
| 400A | 6A7423C01 | • VANE - HPC, 6TH STAGEM NOMINAL, HP COM POST SBE70-0726 | ad-ae/01 | 60 |
| 400B | 6A7482C01 | • VANE - 6TH STAGE, NOMINAL POST SBE70-0714 PRE SBE70-0726 | ac/01 | 60 |
| 400C | 6A7423C01 | • VANE - HPC, 6TH STAGEM NOMINAL, HP COM POST SBE72-0320 PRE SBE70-0714 | ab/02 | 60 |
| 400D | 6A8765 | • VANE - NOMINAL, 6TH STAGE POST SBE72-0561 | ae/03 | 60 |
| 448 | 6A4230C01 | • VANE PRE SBE72-0320 | aa/01 | 20 |
| 448A | 6A7423C01 | • VANE - HPC, 6TH STAGEM NOMINAL, HP COM POST SBE70-0726 | ad-ae/01 | 20 |
| 448B | 6A7482C01 | • VANE - 6TH STAGE, NOMINAL POST SBE70-0714 PRE SBE70-0726 | ac/01 | 20 |
| 448C | 6A7423C01 | • VANE - HPC, 6TH STAGEM NOMINAL, HP COM POST SBE72-0320 PRE SBE70-0714 | ab/02 | 20 |
| 448D | 6A8765 | • VANE - NOMINAL, 6TH STAGE POST SBE72-0561 | ae/03 | 20 |
| 450 | 6A4230C02 | • VANE PRE SBE72-0320 | aa/01 | 20 |
| 450A | 6A7423C02 | • VANE - HPC, 6TH STAGE, UNDERSIZE POST SBE70-0726 | ad-ae/01 | 20 |
| 450B | 6A7482C02 | • VANE - 6TH STAGE, UNDERSIZE POST SBE70-0714 PRE SBE70-0726 | ac/01 | 20 |
| 450C | 6A7423C02 | • VANE - HPC, 6TH STAGE, UNDERSIZE POST SBE72-0320 PRE SBE70-0714 | ab/02 | 20 |
| 450D | 6A8766 | • VANE - UNDERSIZE, 6TH STAGE, UNDERSIZE POST SBE72-0561 | ae/03 | 20 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

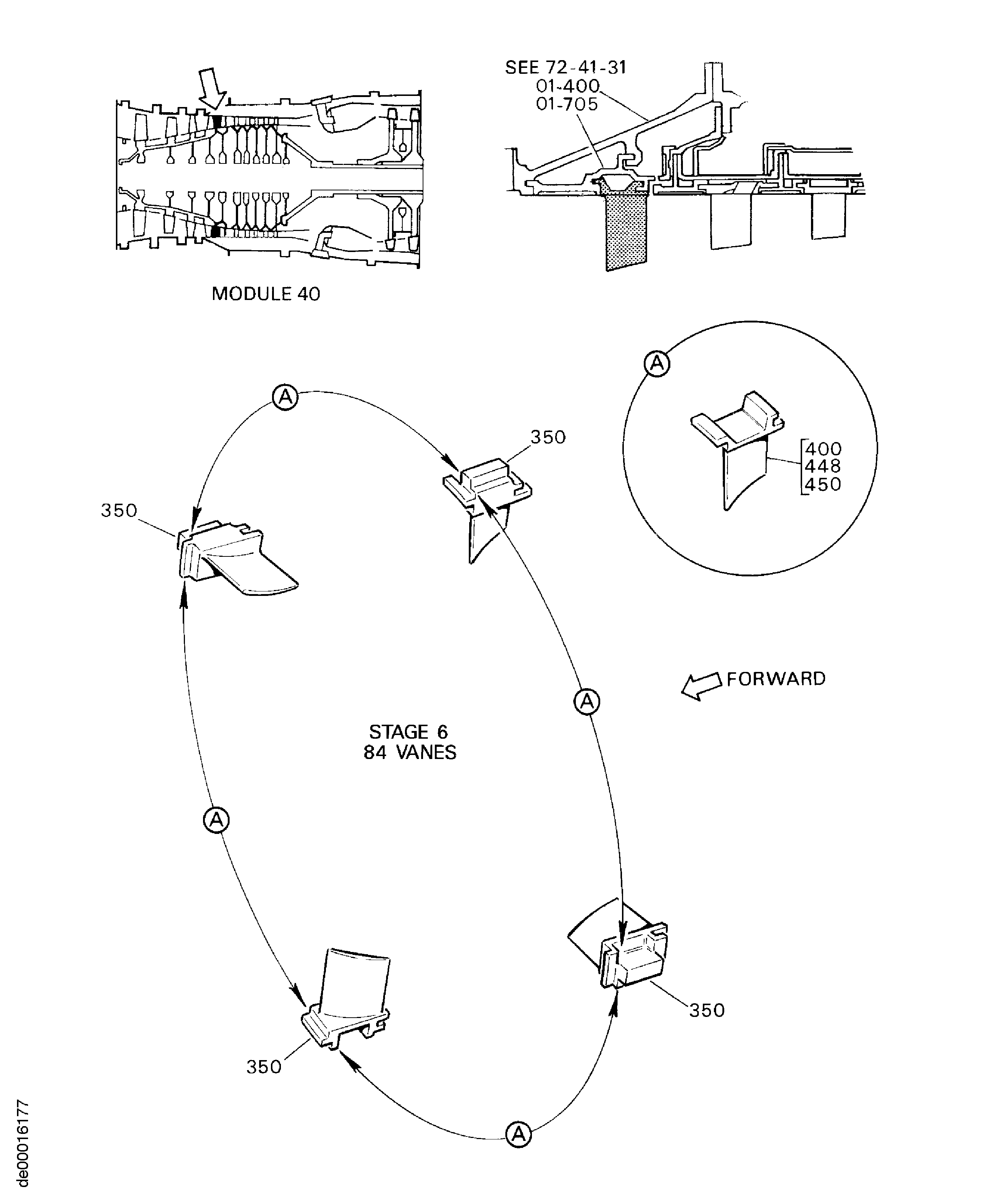

Figure: HPC Stator Vanes
HPC Stator Vanes
