| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| - | B72412202 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE72-0320 | aa | |
| - | SBE0320-01 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE70-0714 | ab | |
| - | SBE0714-01 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE70-0726 | ac | |
| - | SBE0726-01 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE72-0441 | ad | |
| - | SBE0441-01 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE72-0561 | ae | |
| - | SBE0561-01 | ENGINE - HP COMPRESSOR STATOR VANES | af | |
| 150 | 6A4215 | • VANE PRE SBE72-0320 | aa/01 | 4 |
| 150A | 6A7426 | • VANE - HPC, 7TH STAGE, LEFT HAND STOP POST SBE72-0320 PRE SBE70-0714 | ab/01 | 4 |
| 150B | 6A7483 | • VANE - 7TH STAGE, LEFT HAND STOP POST SBE70-0714 PRE SBE70-0726 | ac/01 | 4 |
| 150C | 6A7426 | • VANE - HPC, 7TH STAGE, LEFT HAND STOP POST SBE70-0726 PRE SBE72-0441 | ad/02 | 4 |
| 350 | 6A4216 | • VANE PRE SBE72-0320 | aa/01 | 4 |
| 350A | 6A7427 | • VANE - HPC, 7TH STAGE, RIGHT HAND STOP POST SBE72-0320 PRE SBE70-0714 | ab/01 | 4 |
| 350B | 6A7484 | • VANE - 7TH STAGE, RIGHT HAND STOP POST SBE70-0714 PRE SBE70-0726 | ad/01 | 4 |
| 350C | 6A7427 | • VANE - HPC, 7TH STAGE, RIGHT HAND STOP POST SBE70-0726 | ad-af/02 | 4 |
| 350D | 6A8770 | • VANE - STOP, 7TH STAGE POST SBE72-0561 | aa-ae/03 | 4 |
| 400 | 6A4213C01 | • VANE PRE SBE72-0320 | aa/01 | 56 |
| 400A | 6A7425C01 | • VANE - 7TH STAGE 7 POST SBE72-0320 PRE SBE70-0714 | ab/01 | 56 |
| 400B | 6A7425C01 | • VANE - 7TH STAGE 7 POST SBE70-0726 PRE SBE72-0441 | ad/01 | 56 |
| 400C | 6A7485C01 | • VANE - 7TH STAGE, NOMINAL POST SBE70-0714 PRE SBE70-0726 | ac/01 | 56 |
| 400D | 6A7425C01 | • VANE - 7TH STAGE 7 POST SBE70-0726 PRE SBE72-0441 | ad-af/02 | 56 |
| 400E | 6A7425C01 | • VANE - 7TH STAGE 7 POST SBE72-0441 | ae/02 | 60 |
| 400F | 6A8768 | • VANE - NOMINAL, 7TH STAGE POST SBE72-0561 | af/03 | 60 |
| 448 | 6A4213C01 | • VANE PRE SBE72-0320 | aa/01 | 24 |
| 448A | 6A7425C01 | • VANE - 7TH STAGE 7 POST SBE72-0320 PRE SBE70-0714 | ab/01 | 24 |
| 448B | 6A7485C01 | • VANE - 7TH STAGE, NOMINAL POST SBE70-0714 PRE SBE70-0726 | ac/01 | 24 |
| 448C | 6A7425C01 | • VANE - 7TH STAGE 7 POST SBE70-0726 | ad/02 | 24 |
| 448D | 6A8768 | • VANE - NOMINAL, 7TH STAGE POST SBE72-0561 | af/03 | 24 |
| 450 | 6A4213C02 | • VANE PRE SBE72-0320 | aa/01 | 24 |
| 450A | 6A7425C02 | • VANE - 7TH STAGE 7 POST SBE72-0320 PRE SBE70-0714 | ab/01 | 24 |
| 450B | 6A7485C02 | • VANE - 7TH STAGE, UNDERSIZE POST SBE70-0714 PRE SBE70-0726 | ac/01 | 24 |
| 450C | 6A7425C02 | • VANE - 7TH STAGE 7 POST SBE70-0726 | ad-af/02 | 24 |
| 450D | 6A8769 | • VANE - UNDERSIZE, 7TH STAGE, UNDERSIZE POST SBE72-0561 | af/03 | 24 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

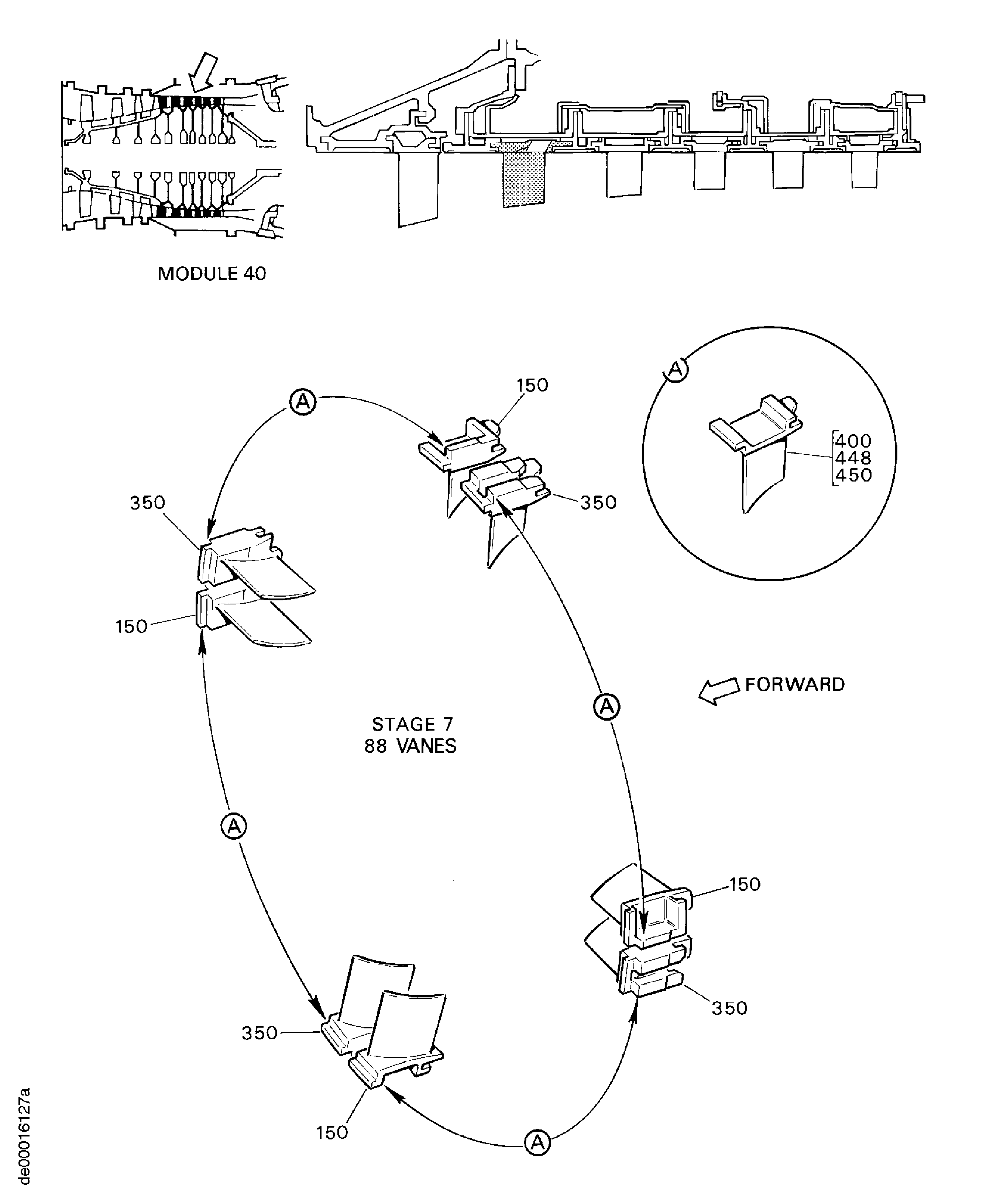

Figure: HPC Stator Vanes
HPC Stator Vanes
