HPC Stator Vanes

DMC:V2500-A5-72-41-22-03A-941A-D|Issue No:002|Issue Date:2020-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
03
-000	B72412203	ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE70-0714	aa
-000	SBE0714-01	ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE70-0726	ab
-000	SBE0726-01	ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE72-0441	ac
-000	SBE0441-01	ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE72-0561	ad
-000	SBE0561-01	ENGINE - HP COMPRESSOR STATOR VANES	ae
150150	6A4250	• VANE - INSULATION RETAINING, 8TH STAGE, HPC PRE SBE70-0714	aa/01	4
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
150150A	6A4250	• VANE - INSULATION RETAINING, 8TH STAGE, HPC POST SBE70-0726 PRE SBE72-0441	aa-ac/02	4
V2533 AQ02, V2533 AQ03
150150B	6A7486	• VANE - 8TH STAGE, RETAINING POST SBE70-0714 PRE SBE70-0726	aa-ae/03	4
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
150150C	6A4250	• VANE - INSULATION RETAINING, 8TH STAGE, HPC POST SBE70-0726 PRE SBE72-0441	ab-ac/04	4
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200	6A4246	• VANE - 8TH STAGE, LEFT HAND, I SCOPE PRE SBE70-0714	aa/01	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
200200A	6A4246	• VANE - 8TH STAGE, LEFT HAND, I SCOPE POST SBE70-0726	ac-ae/02	1
V2533 AQ02, V2533 AQ03
200200B	6A7487	• VANE - 8TH STAGE, LEFT HAND I-SCOPE POST SBE70-0714 PRE SBE70-0726	aa-ae/03	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
200200C	6A4246	• VANE - 8TH STAGE, LEFT HAND, I SCOPE POST SBE70-0726	ac-ae/04	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200D	6A8774	• VANE - INTRASCOPE LEFT HAND, 8TH STAGE POST SBE72-0561	ae/05	1
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
250250	6A4248	• VANE - 8TH STAGE, RIGHT HAND, I SCOPE PRE SBE70-0714	aa/01	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
250250A	6A4248	• VANE - 8TH STAGE, RIGHT HAND, I SCOPE POST SBE70-0726	ac-ae/02	1
V2533 AQ02, V2533 AQ03
250250B	6A7488	• VANE - 8TH STAGE, RIGHT HAND I-SCOPE POST SBE70-0714 PRE SBE70-0726	aa-ae/03	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
250250C	6A4248	• VANE - 8TH STAGE, RIGHT HAND, I SCOPE POST SBE70-0726	ac-ae/04	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
250250D	6A8775	• VANE - INTRASCOPE RIGHT HAND, 8TH STAGE POST SBE72-0561	ae/05	1
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
350350	6A4249	• VANE - 8TH STAGE, STOP PRE SBE70-0714	ab-ae/01	4
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
350350A	6A4249	• VANE - 8TH STAGE, STOP POST SBE70-0726	ac-ae/02	4
V2533 AQ02, V2533 AQ03
350350B	6A7489	• VANE - 8TH STAGE, STOP POST SBE70-0714 PRE SBE70-0726	aa-ae/03	4
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
350350C	6A4249	• VANE - 8TH STAGE, STOP POST SBE70-0726	ac-ae/04	4
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
350350D	6A8776	• VANE - STOP, 8TH STAGE POST SBE72-0561	ae/05	4
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
400400	6A4245C01	• VANE - HPC, 8TH STAGE, NOMINAL PRE SBE70-0714	aa/01	54
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
400400A	6A4245C01	• VANE - HPC, 8TH STAGE, NOMINAL POST SBE70-0726 PRE SBE72-0441	ab-ac/01	54
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
400400B	6A4245C01	• VANE - HPC, 8TH STAGE, NOMINAL POST SBE70-0726 PRE SBE72-0441	ab-ac/02	54
V2533 AQ02, V2533 AQ03
400400C	6A7490C01	• VANE - 8TH STAGE POST SBE70-0714 PRE SBE70-0726	aa-ae/03	54
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
400400D	6A4245C01	• VANE - HPC, 8TH STAGE, NOMINAL POST SBE72-0441	ad-ae/04	58
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
400400E	6A8772	• VANE - NOMINAL, 8TH STAGE POST SBE72-0561	ae/05	58
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
448448	6A4245C01	• VANE - HPC, 8TH STAGE, NOMINAL PRE SBE70-0714	aa/01	28
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
448448A	6A4245C01	• VANE - HPC, 8TH STAGE, NOMINAL POST SBE70-0726	ac-ae/02	28
V2533 AQ02, V2533 AQ03
448448B	6A7490C01	• VANE - 8TH STAGE POST SBE70-0714 PRE SBE70-0726	aa-ae/03	28
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
448448C	6A4245C01	• VANE - HPC, 8TH STAGE, NOMINAL POST SBE70-0726	ac-ae/04	28
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
448448D	6A8772	• VANE - NOMINAL, 8TH STAGE POST SBE72-0561	ae/05	28
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
450450	6A4245C02	• VANE PRE SBE70-0714	aa/01	28
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
450450A	6A4245C02	• VANE POST SBE70-0726	ac-ae/02	28
V2533 AQ02, V2533 AQ03
450450B	6A7490C02	• VANE - 8TH STAGE, UNDERSIZE POST SBE70-0714 PRE SBE70-0726	aa-ae/03	28
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
450450C	6A4245C02	• VANE POST SBE70-0726	ac-ae/04	28
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
450450D	6A8773	• VANE - UNDERSIZE, 8TH STAGE, UNDERSIZE POST SBE72-0561	ae/05	28
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Part Number:	6A4245C01
Part Name:	VANE - HPC, 8TH STAGE, NOMINAL
Manufacturer Code:	0AM53

Part Number:	6A4245C02
Part Name:	VANE
Manufacturer Code:	0AM53

Part Number:	6A4246
Part Name:	VANE - 8TH STAGE, LEFT HAND, I SCOPE
Manufacturer Code:	0AM53

Part Number:	6A4248
Part Name:	VANE - 8TH STAGE, RIGHT HAND, I SCOPE
Manufacturer Code:	0AM53

HPC Stator Vanes

Export Control

Copyright

Applicability

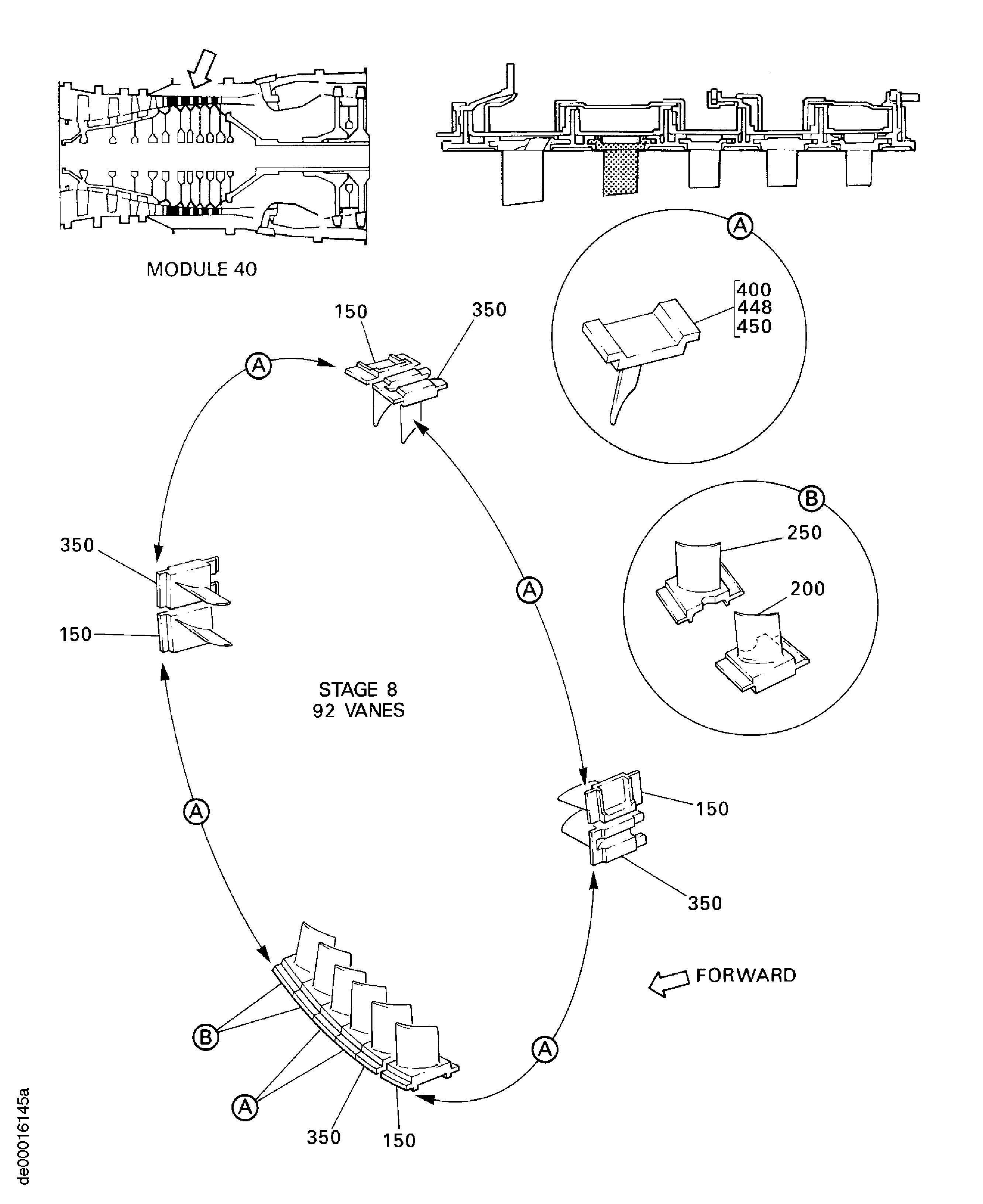

Figure: HPC Stator Vanes
