| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| - | B72412205 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE72-0320 | aa | |
| - | SBE0320-01 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE70-0714 | ab | |
| - | SBE0714-01 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE70-0726 | ac | |
| - | SBE0726-01 | ENGINE - HP COMPRESSOR STATOR VANES, PRE SBE72-0561 | ad | |
| - | SBE0561-01 | ENGINE - HP COMPRESSOR STATOR VANES | ae | |
| 350 | 6A4224 | • VANE - STOP, HPC, 10TH STAGE PRE SBE72-0320 | aa-ae/01 | 4 |
| 350A | 6A7429 | • VANE - STOP, HPC, 10TH STAGE POST SBE72-0320 PRE SBE70-0714 | ab/01 | 4 |
| 350B | 6A7495 | • VANE - STOP, HPC, 10TH STAGE POST SBE70-0714 PRE SBE70-0726 | ac/01 | 4 |
| 350C | 6A7429 | • VANE - STOP, HPC, 10TH STAGE POST SBE70-0726 | ad-ae/02 | 4 |
| 350D | 6A8786 | • VANE - STOP, HPC, 10TH STAGE POST SBE72-0561 | ae/03 | 4 |
| 355 | 6A4225 | • VANE - STOP, HPC, 10TH STAGE PRE SBE72-0320 | aa-ae/01 | 4 |
| 355A | 6A7430 | • VANE - STOP, HPC, 10TH STAGE POST SBE72-0320 PRE SBE70-0714 | ab/01 | 4 |
| 355B | 6A7496 | • VANE - STOP, HPC, 10TH STAGE POST SBE70-0714 PRE SBE70-0726 | ac/01 | 4 |
| 355C | 6A7430 | • VANE - STOP, HPC, 10TH STAGE POST SBE70-0726 | ad-ae/02 | 4 |
| 355D | 6A8785 | • VANE - STOP, HPC, 10TH STAGE POST SBE72-0561 | ae/03 | 4 |
| 400 | 6A4223C01 | • VANE - HPC, 10TH STAGE, NOMINAL PRE SBE72-0320 | aa-ae/01 | 60 |
| 400A | 6A7428C01 | • VANE - HPC, 10TH STAGE, NOMINAL POST SBE72-0320 PRE SBE70-0714 | ab/01 | 60 |
| 400B | 6A7497C01 | • VANE - HPC, 10TH STAGE, NOMINAL POST SBE70-0714 PRE SBE70-0726 | ac/01 | 60 |
| 400C | 6A7428C01 | • VANE - HPC, 10TH STAGE, NOMINAL POST SBE70-0726 | ad-ae/02 | 60 |
| 400D | 6A8783 | • VANE - HPC, 10TH STAGE, NOMINAL POST SBE72-0561 | ae/03 | 60 |
| 448 | 6A4223C01 | • VANE - HPC, 10TH STAGE, NOMINAL PRE SBE72-0320 | aa-ae/01 | 32 |
| 448A | 6A7428C01 | • VANE - HPC, 10TH STAGE, NOMINAL POST SBE72-0320 PRE SBE70-0714 | ab/01 | 32 |
| 448B | 6A7497C01 | • VANE - HPC, 10TH STAGE, NOMINAL POST SBE70-0714 PRE SBE70-0726 | ac/01 | 32 |
| 448C | 6A7428C01 | • VANE - HPC, 10TH STAGE, NOMINAL POST SBE70-0726 | ad-ae/02 | 32 |
| 448D | 6A8783 | • VANE - HPC, 10TH STAGE, NOMINAL POST SBE72-0561 | ae/03 | 32 |
| 450 | 6A4223C02 | • VANE - HPC, 10TH STAGE, UNDERSIZE PRE SBE72-0320 | aa-ae/01 | 32 |
| 450A | 6A7428C02 | • VANE - HPC, 10TH STAGE, UNDERSIZE POST SBE72-0320 PRE SBE70-0714 | ab/01 | 32 |
| 450B | 6A7497C02 | • VANE - HPC, 10TH STAGE, UNDERSIZE POST SBE70-0714 PRE SBE70-0726 | ac/01 | 32 |
| 450C | 6A7428C02 | • VANE - HPC, 10TH STAGE, UNDERSIZE POST SBE70-0726 | ad-ae/02 | 32 |
| 450D | 6A8784 | • VANE - HPC, 10TH STAGE, UNDERSIZE POST SBE72-0561 | ae/03 | 32 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

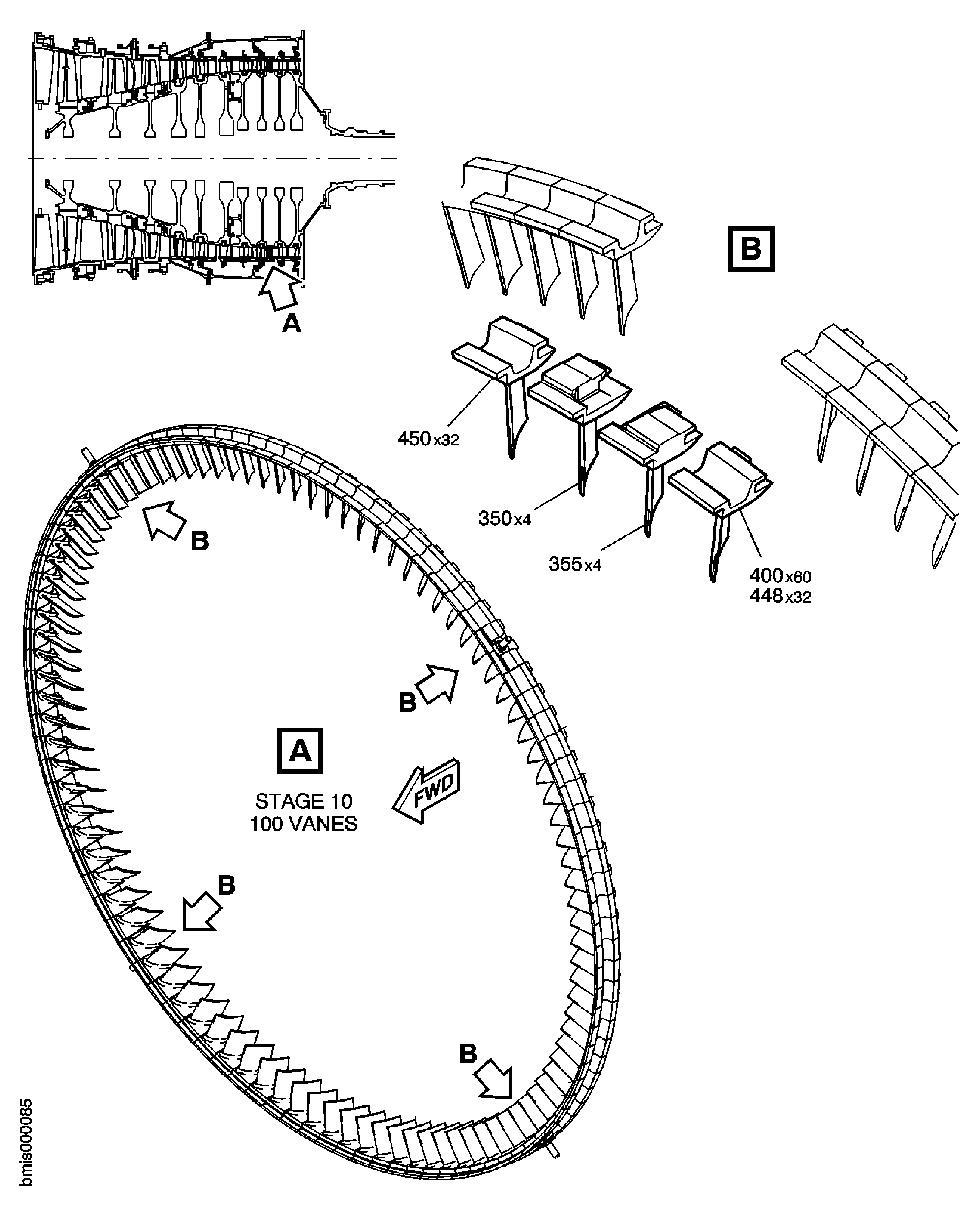

Figure: HPC Stator Vanes
HPC Stator Vanes
