HPC Variable Stator Vanes

DMC:V2500-A5-72-41-32-01A-941A-D|Issue No:002.00|Issue Date:2019-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
-000B72413201ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE70-0353
aa
-000SBE0353-01ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE72-0186
ab
-000SBE0186-01ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE70-0714
ac
-000SBE0714-01ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE70-0726
ad
-000SBE0726-01ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE72-0410
ae
-000SBE0410-01ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE72-0486
af
-000SBE0486-01ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE72-0564
ag
-000SBE0564-01ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE72-0571
ah
-000SBE0571-01ENGINE - HP COMPRESSOR VARIABLE VANES
ai
5005006A4201• SPINDLE - VARIABLE INLET GUIDE VANES, LONG, ASSEMBLY OF
PRE SBE72-0186
aa-ab/0138
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
500500A6A5653• VANE - VARIABLE INLET GUIDE VANES LONG SPINDLE, ASSEMBLY OF
PRE SBE70-0714
aa-ac/0138
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
500500B6A5653• VANE - VARIABLE INLET GUIDE VANES LONG SPINDLE, ASSEMBLY OF
POST SBE72-0186
PRE SBE70-0714
ac/0238
V2533 AQ02, V2533 AQ03
500500C6A7472• VANE - VARIABLE INLET GUIDE VANES LONG, ASSEMBLY OF
POST SBE70-0714
PRE SBE70-0726
ad/0338
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
500500D6A5653• VANE - VARIABLE INLET GUIDE VANES LONG SPINDLE, ASSEMBLY OF
POST SBE70-0726
PRE SBE72-0410
ae/0338
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
500500E6A7723• VANE - VARIABLE INLET GUIDE VANES LONG SPINDLE, ASSEMBLY OF
POST SBE72-0410
PRE SBE72-0486
af/0438
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
500500F6A7723• VANE - VARIABLE INLET GUIDE VANES LONG SPINDLE, ASSEMBLY OF
POST SBE72-0410
PRE SBE72-0410
*****/0438
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
500500G6A8405• VANE - VARIABLE INLET GUIDE VANES LONG SPINDLE, ASSEMBLY OF
POST SBE72-0486
ag-ai/0438
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
500500H6B1170• VANE - INLET, VAR LONG, ASSEMBLY OF
POST SBE72-0564
PRE SBE72-0571
ah/0838
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
500500I6B1269• VANE - INLET, VAR LONG, ASSEMBLY OF
POST SBE72-0571
ai/0838
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
515515UP11066• • STUD
POST SBE70-0353
PRE SBE72-0486
ab-af/061
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
515515AUP11066• • STUD
POST SBE70-0353
ab-ai/071
V2533 AQ02, V2533 AQ03, V2533 SQ02, V2533 SQ03, V2533 SQ04, V2533 SQ05
-5255256A5654• • VANE - VARIABLE INLET GUIDE VANES LONG SPINDLE
aa-ai/03REF
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
6006006A4203• SPINDLE - VARIABLE INLET GUIDE VANES, SHORT, ASSEMBLY OF
PRE SBE72-0186
aa-ab/012
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
600600A6A5655• VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE, ASSEMBLY OF
PRE SBE70-0714
aa-ac/012
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
600600B6A5655• VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE, ASSEMBLY OF
POST SBE72-0186
PRE SBE70-0714
ac/022
V2533 AQ02, V2533 AQ03
600600C6A7474• VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE, ASSEMBLY OF
POST SBE70-0714
PRE SBE70-0726
ad/032
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
600600D6A5655• VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE, ASSEMBLY OF
POST SBE70-0726
PRE SBE72-0410
ae/032
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
600600E6A7725• VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE, ASSEMBLY OF
POST SBE72-0410
PRE SBE72-0410
*****/042
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
600600F6A7725• VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE, ASSEMBLY OF
POST SBE72-0410
af-ai/042
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
600600G6A7725• VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE, ASSEMBLY OF
POST SBE72-0410
PRE SBE72-0486
af/042
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
600600H6A8407• VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE, ASSEMBLY OF
POST SBE72-0486
ag-ai/042
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
600600I6A8833• VANE - INLET, VAR SHORT, ASSEMBLY OF
POST SBE72-0564
PRE SBE72-0571
ah/082
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
600600J6B1270• VANE - INLET, VAR SHORT, ASSEMBLY OF
POST SBE72-0571
ai/082
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
615615UP11066• • STUD
POST SBE70-0353
PRE SBE72-0486
ab-af/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
-6256256A5656• • VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE
aa-ai/03REF
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

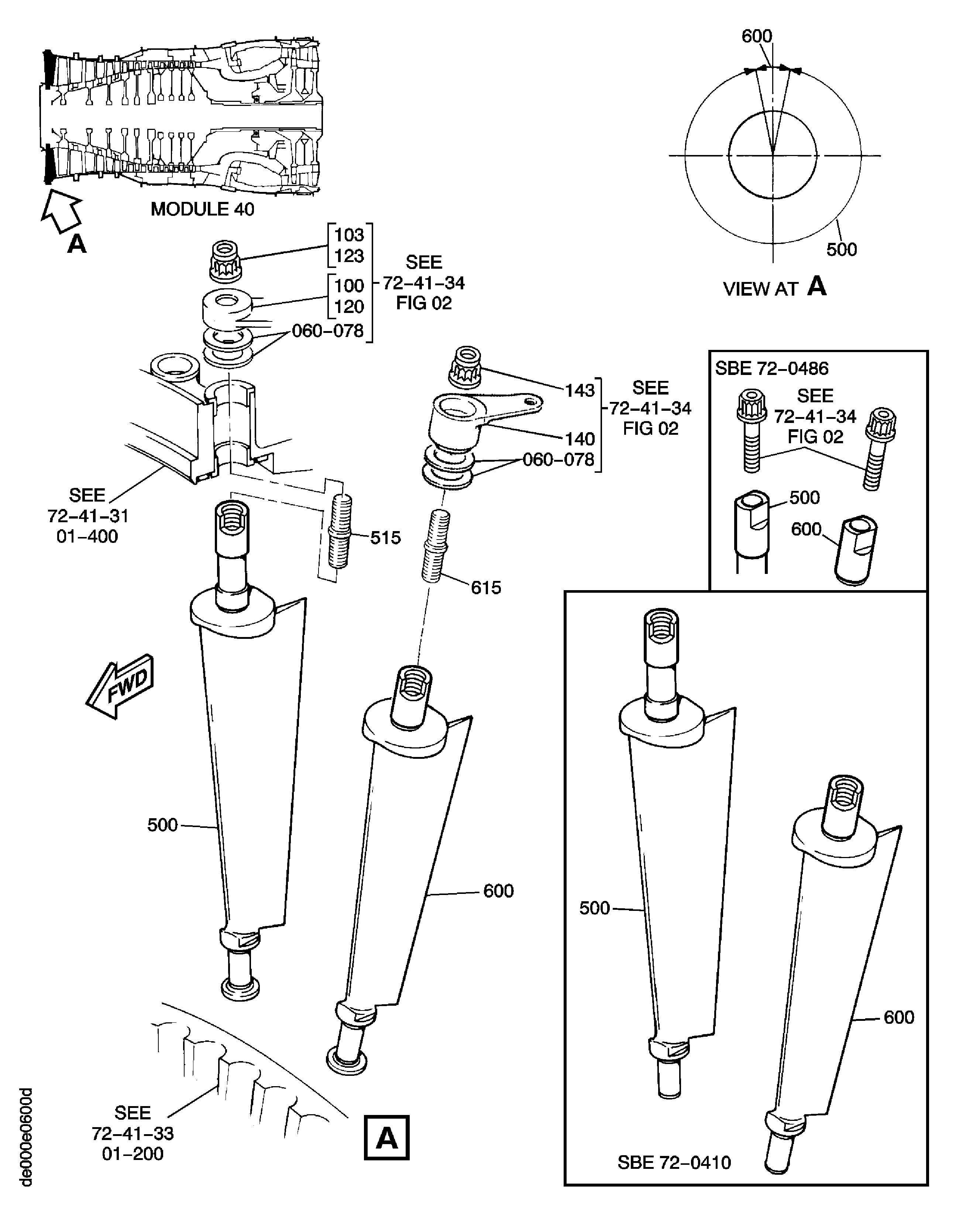

Figure: HPC Variable Stator Vanes

HPC Variable Stator Vanes

Change Type:

Corrected Applicability.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Part Number:6A4201
Part Name:SPINDLE - VARIABLE INLET GUIDE VANES, LONG, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A4203
Part Name:SPINDLE - VARIABLE INLET GUIDE VANES, SHORT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A5653
Part Name:VANE - VARIABLE INLET GUIDE VANES LONG SPINDLE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A5654
Part Name:VANE - VARIABLE INLET GUIDE VANES LONG SPINDLE
Manufacturer Code:0AM53
Part Number:6A5655
Part Name:VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A5656
Part Name:VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE
Manufacturer Code:0AM53
Part Number:6A7472
Part Name:VANE - VARIABLE INLET GUIDE VANES LONG, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7474
Part Name:VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7723
Part Name:VANE - VARIABLE INLET GUIDE VANES LONG SPINDLE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7725
Part Name:VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A8405
Part Name:VANE - VARIABLE INLET GUIDE VANES LONG SPINDLE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A8407
Part Name:VANE - VARIABLE INLET GUIDE VANES SHORT SPINDLE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A8833
Part Name:VANE - INLET, VAR SHORT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1170
Part Name:VANE - INLET, VAR LONG, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1269
Part Name:VANE - INLET, VAR LONG, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6B1270
Part Name:VANE - INLET, VAR SHORT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:UP11066
Part Name:STUD
Manufacturer Code:0AM53
