HPC Variable Stator Vanes

DMC:V2500-A5-72-41-32-04A-941A-D|Issue No:004|Issue Date:2019-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
04
-000	B72413204	ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE72-0186	aa
-000	SBE0186-01	ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE70-0714	ab
-000	SBE0714-01	ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE70-0726	ac
-000	SBE0726-01	ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE72-0410	ad
-000	SBE0410-01	ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE72-0560	ae
-000	SBE0560-01	ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE72-0564	af
-000	SBE0564-01	ENGINE - HP COMPRESSOR VARIABLE VANES, PRE SBE72-0571	ag
-000	SBE0571-01	ENGINE - HP COMPRESSOR VARIABLE VANES	ah
495495	AS43013-011	• RING - SEALING, TOROIDAL U1653	aa-ah/01	64
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
500500	6A4331	• VANE - VARIABLE, 5TH STAGE PRE SBE72-0186	aa/02	60
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
500500A	6A5762	• VANE - VARIABLE, 5TH STAGE PRE SBE70-0714	aa-ab/02	60
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
500500B	6A5762	• VANE - VARIABLE, 5TH STAGE POST SBE72-0186 PRE SBE70-0714	ab/02	60
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
500500C	6A5762	• VANE - VARIABLE, 5TH STAGE POST SBE70-0726 PRE SBE72-0410	ad/03	60
V2533 AQ02, V2533 AQ03
500500D	6A7479	• VANE - 5TH STAGE, VSV SHORT POST SBE70-0714 PRE SBE70-0726	ac/04	60
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
500500E	6A5762	• VANE - VARIABLE, 5TH STAGE POST SBE70-0726 PRE SBE72-0410	ad/04	60
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
500500F	6A7559	• VANE - 5TH STAGE, SHORT SPINDLE POST SBE72-0410 PRE SBE72-0560	ae/04	60
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
500500G	6A8725	• VANE - SHORT SPINDLE, 5TH STAGE, ASSEMBLY OF POST SBE72-0560 PRE SBE72-0564	af/05	60
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
500500H	6A8840	• VANE - SHORT SPINDLE, 5TH STAGE, ASSEMBLY OF POST SBE72-0564 PRE SBE72-0571	ag/05	36
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
500500I	6B1277	• VANE - SHORT SPINDLE, 5TH STAGE, ASSEMBLY OF POST SBE72-0571	ah/05	36
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
600600	6A4332	• VANE - VARIABLE, 5TH STAGE PRE SBE72-0186	aa/02	4
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
600600A	6A5763	• VANE - VARIABLE, 5TH STAGE PRE SBE70-0714	aa-ab/02	4
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
600600B	6A5763	• VANE - VARIABLE, 5TH STAGE POST SBE70-0726 PRE SBE72-0410	ad/03	4
V2533 AQ02, V2533 AQ03
600600C	6A7480	• VANE - 5TH STAGE, VSV LONG POST SBE70-0714 PRE SBE70-0726	ac/04	4
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
600600D	6A5763	• VANE - VARIABLE, 5TH STAGE POST SBE72-0186 PRE SBE70-0714	ab/04	4
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
600600E	6A7560	• VANE - 5TH STAGE, LONG SPINDLE POST SBE72-0410 PRE SBE72-0560	ae/04	4
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
600600F	6A8728	• VANE - LONG SPINDLE, 5TH STAGE POST SBE72-0560 PRE SBE72-0564	af/05	4
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
600600G	6A8839	• VANE - LONG SPINDLE, 5TH STAGE, ASSEMBLY OF POST SBE72-0564 PRE SBE72-0571	ag/05	28
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
600600H	6B1276	• VANE - LONG SPINDLE, 5TH STAGE, ASSEMBLY OF POST SBE72-0571	ah/05	28
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	6A4331
Part Name:	VANE - VARIABLE, 5TH STAGE
Manufacturer Code:	0AM53

Part Number:	6A4332
Part Name:	VANE - VARIABLE, 5TH STAGE
Manufacturer Code:	0AM53

Part Number:	6A5762
Part Name:	VANE - VARIABLE, 5TH STAGE
Manufacturer Code:	0AM53

HPC Variable Stator Vanes

Export Control

Copyright

Applicability

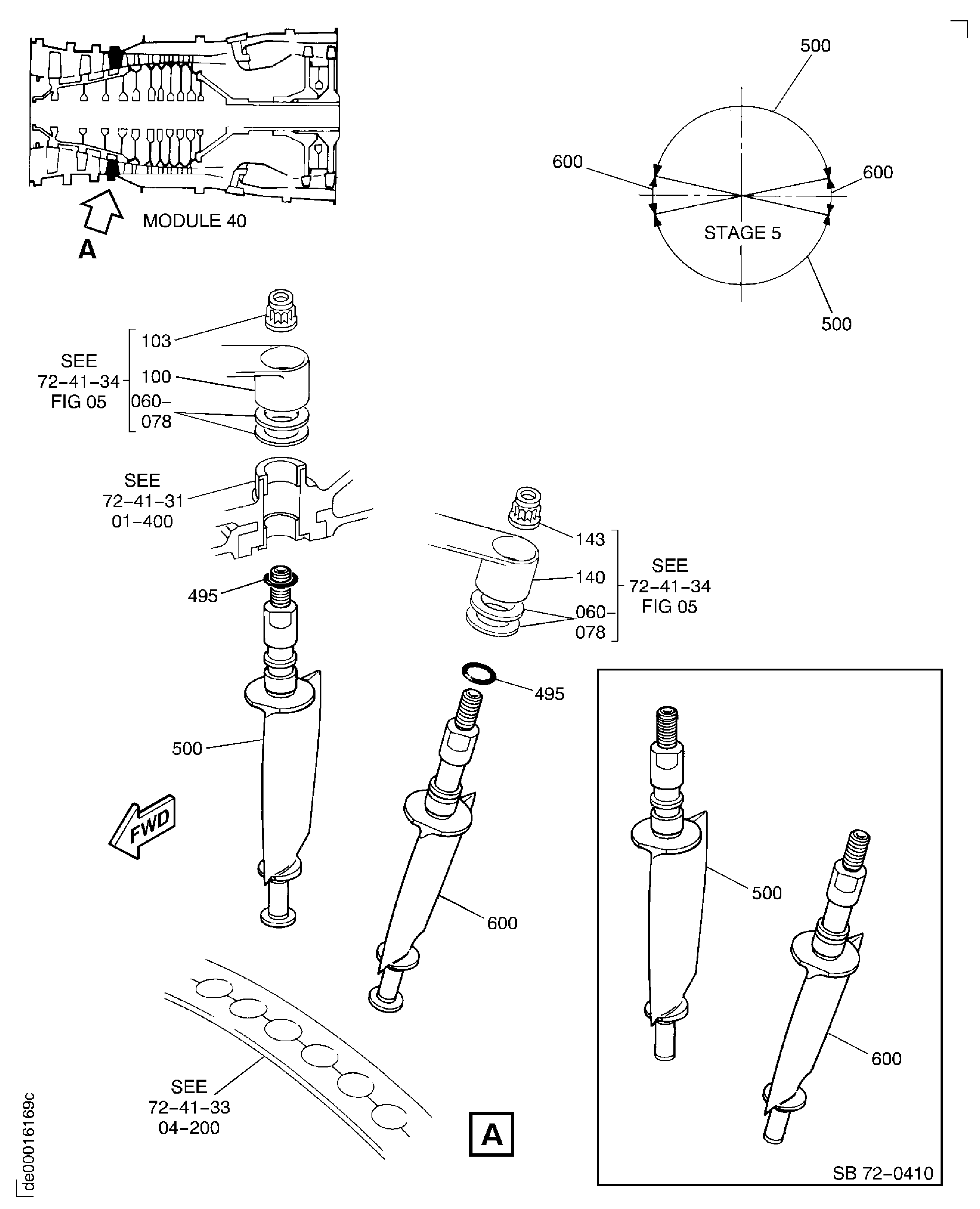

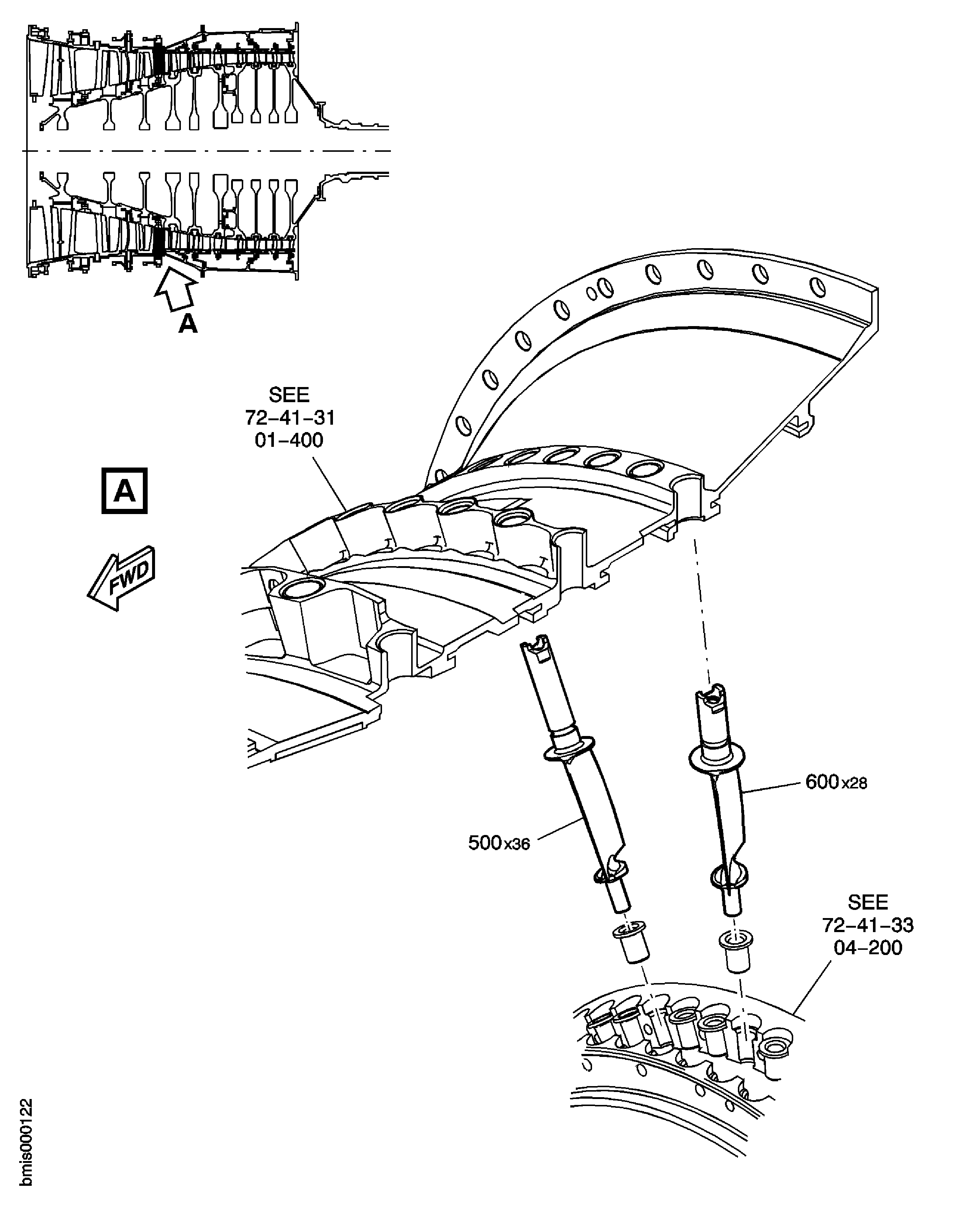

Figure: HPC Variable Stator Vanes
