HPC Variable Stator Vane Shrouds And Related Part

DMC:V2500-A5-72-41-33-02A-941A-D|Issue No:003|Issue Date:2019-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item		Part No.	Description	Effect/Model Applic.	UPA
02
-000		B72413302	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE70-0722	aa
-000		SBE0722-01	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0410	ab
-000		SBE0410-01	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0555 AND PRE SBE72-0560	ac
-000		SBE0555-01	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE70-0980	ad
-000		SBE0560-01	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0613	ae
-000		SBE0980-01	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0613	af
-000		SBE0613-01	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS	ag
130130		4W0001	• NUT OPTION - .190 DIA Optional Part AS20624 PRE SBE72-0613	aa-af/01	16
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
130130A		AS63451	• NUT - SELF LOCKING, 0.19 U1653 POST SBE72-0613	ag/01	16
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
134134		AS26094	• WASHER - FLAT U1653	aa-ag/04	32
V2527/V2527E AQ02, V2522/V2524/V2527E AQ02, V2530 AQ02, V2527/V2527E AQ03, V2522/V2524/V2527M AQ03, V2530 AQ03, V2527/V2527E SQ02, V2522/V2524/V2527M SQ02, V2530 SQ02, V2527/V2527E SQ03, V2522/V2524/V25257M SQ03, V2530 SQ03, V2527/V2527E SQ04, V2522/V2524/V2527M SQ04, V2530 SQ04, V2527/V2527E SQ05, V2522/V2524/V2527M SQ05, V2530 SQ05
138138		4W0116	• BOLT - 0.190 DIA X 10.312 Optional Part AS48021 PRE SBE72-0410	aa-ab/02	16
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
138138A		4W0114	• BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.188 Optional Part AS48019 POST SBE72-0410	ac-ag/01	16
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
150150	X	6A1093	• SEAL - HALF RING PRE SBE72-0410	aa-ab/02	2
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
190190		6A3497	• BUSHING HALF PRE SBE72-0410	aa-ab/02	64
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
190190A		6A7728	• BUSHING - 3RD, 4TH, 5TH STAGE, INNER SHROUD POST SBE72-0410 PRE SBE70-0980 PRE SBE72-0560	ac/02	32
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
190190B		6B1137	• BUSHING POST SBE72-0560	ae-ag/03	32
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
190190C		6B1137	• BUSHING POST SBE70-0980	af-ag/02	32
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
191191		6A7541	• BUSHING HALF - O/S, INNER PIVOT, 0.010IN (0.254MM) POST SBE70-0722	ab-ag/01	A/R
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
192192		6A7542	• BUSHING HALF - O/S, INNER PIVOT, 0.020IN (0.508MM) POST SBE70-0722	ab-ag/01	A/R
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200		6A3467	• SHROUD - 3RD STAGE, HALF, ASSEMBLY OF PRE SBE72-0410	aa-ab/02	2
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
200200A		6A7719	• SHROUD - 3RD STAGE, HALF, ASSEMBLY OF POST SBE72-0410 PRE SBE72-0555 PRE SBE72-0560	ac/02	2
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
200200B		6B1156	• SHROUD - STAGE VSV3, ASSEMBLYFOF POST SBE72-0560	ae-ag/03	2
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
200200C		6B1156	• SHROUD - STAGE VSV3, ASSEMBLYFOF POST SBE72-0555	ad-ag/02	2
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
220220		AS20762	• • RING - RETAINING U1653 PRE SBE72-0410	aa-ab/02	3
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
220220A		AS20763	• • RING - RETAINING U1653 POST SBE72-0410	ac-ag/02	3
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
220220B		AS20763	• • RING - RETAINING U1653 POST SBE72-0560	ae-ag/03	3
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
222222		LK41751	• • PIN - LOCATING PRE SBE72-0410	aa-ab/02	3
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
222222A		AS20745	• • PIN - GROOVED, HEADLESS U1653 POST SBE72-0560	ae-ag/02	3
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
222222B		AS20745	• • PIN - GROOVED, HEADLESS U1653 POST SBE72-0410	ac-ag/03	3
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	4W0114
Part Name:	BOLT - MACHINE DOUBLE HEX, 190 DIA X 1.188
Manufacturer Code:	0AM53

Part Number:	4W0116
Part Name:	BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.312
Manufacturer Code:	0AM53

Part Number:	6A1093
Part Name:	SEAL - HALF RING
Manufacturer Code:	0AM53

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653

Part Number:	AS48019
Part Name:	BOLT - 0.190 DIA X 1.188
Manufacturer Code:	U1653

Part Number:	AS48021
Part Name:	BOLT - 0.190 DIA X 10.312
Manufacturer Code:	U1653

HPC Variable Stator Vane Shrouds And Related Part

Export Control

Copyright

Applicability

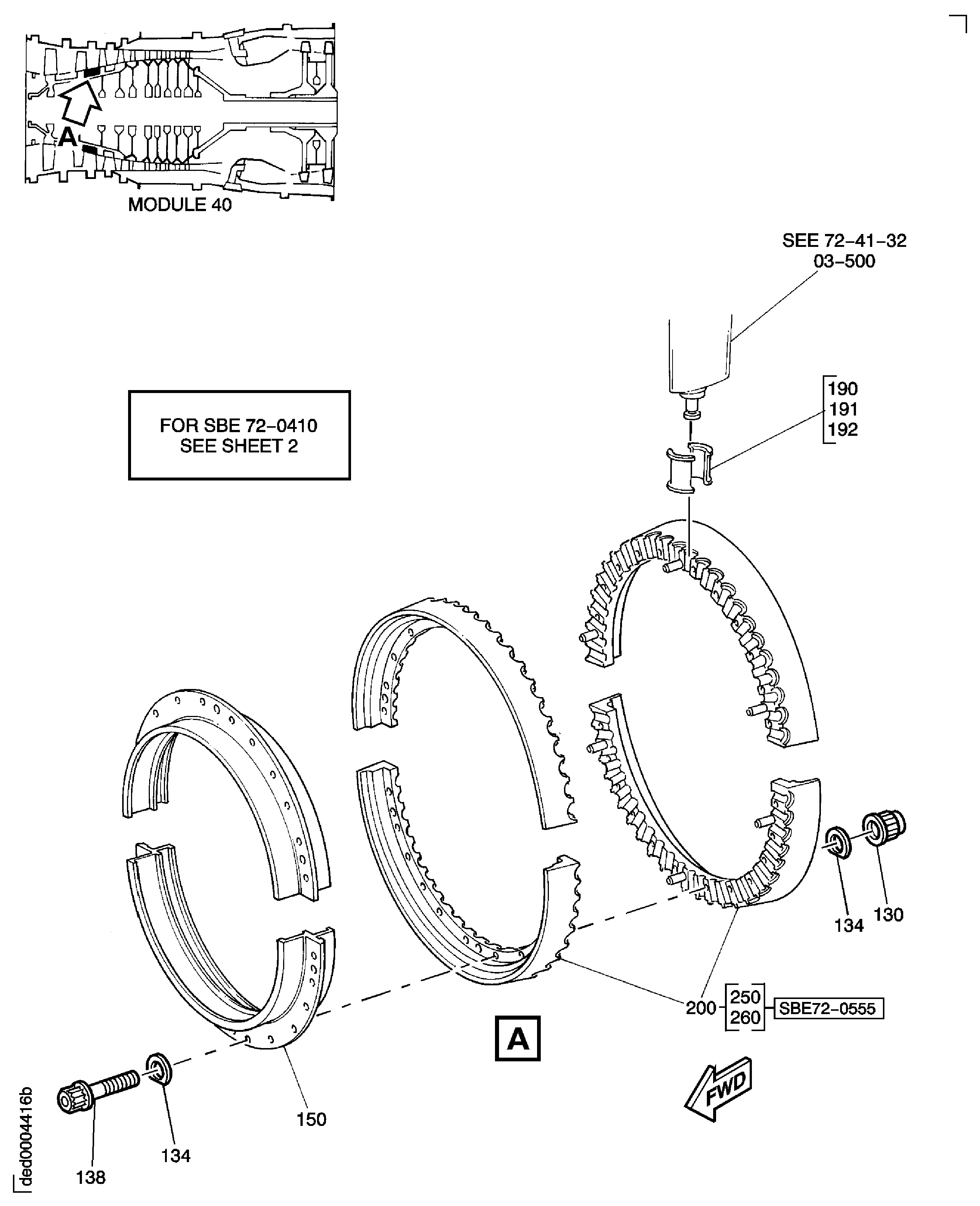

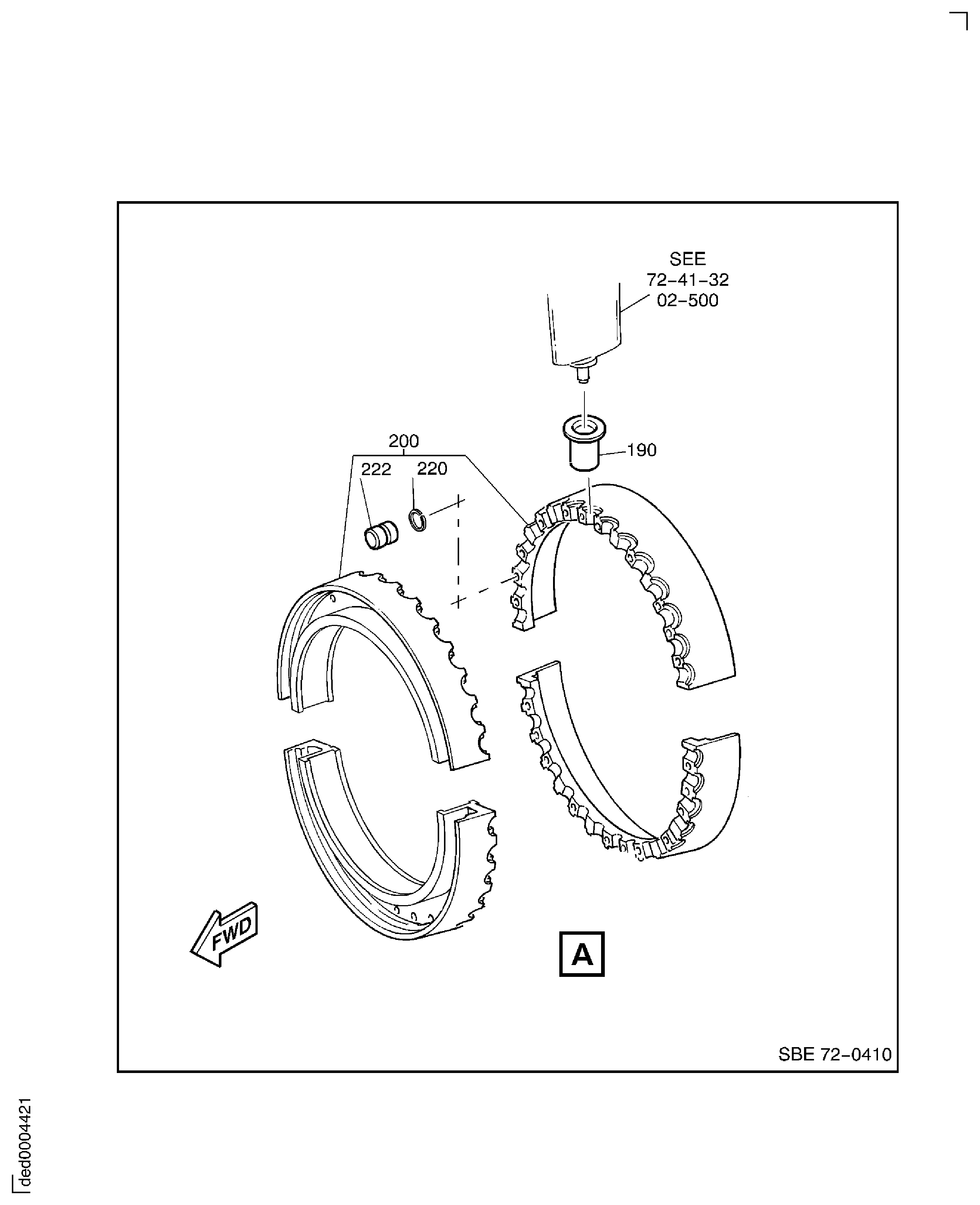

Figure: HPC Variable Stator Vane Shrouds And Related Part
