HPC Variable Stator Vane Shrouds And Related Part

DMC:V2500-A5-72-41-33-04A-941A-D|Issue No:005|Issue Date:2020-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
04
-000	B72413304	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE70-0722	aa
-000	SBE0722-01	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0410	ab
-000	SBE0410-01	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0555	ac
-000	SBE0555-01	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0560	ad
-000	SBE0560-01	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE70-0980	ae
-000	SBE0980-01	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0613	af
-000	SBE0613-01	ENGINE - HP COMPRESSOR VARIABLE VANE INNER SHROUDS	ag
130130	4W0001	• NUT, OPTION - .190 DIA Optional Part AS20624 PRE SBE72-0613	aa-af/01	32
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
130130A	4W0001	• NUT, OPTION - .190 DIA Optional Part AS20624	aa-ag/02	32
V2533 AQ02, V2533 AQ03, V2533 SQ02, V2533 SQ03, V2533 SQ04, V2533 SQ05
130130B	AS63451	• NUT - SELF LOCKING, 0.19 U1653 POST SBE72-0613	ag/03	32
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
138138	AS26113	• BOLT - CLOSE TOL, DEE HEAD U1653 PRE SBE72-0410	aa-ab/04	32
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
138138A	AS26114	• BOLT - CLOSE TOL, DEE HEAD U1653 POST SBE72-0410	ac-ag/03	32
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
190190	6A3497	• BUSHING HALF PRE SBE72-0410	aa-ab/04	128
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
190190A	6A7728	• BUSHING - 3RD, 4TH, 5TH STAGE, INNER SHROUD POST SBE72-0410 PRE SBE70-0980 PRE SBE72-0560	ac-ad/03	64
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
190190B	6B1137	• BUSHING POST SBE72-0560	ae-ag/05	64
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
190190C	6B1137	• BUSHING POST SBE70-0980	af-ag/04	64
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
191191	6A7541	• BUSHING HALF - O/S, INNER PIVOT, 0.010IN (0.254MM) POST SBE70-0722	ab-ag/03	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
192192	6A7542	• BUSHING HALF - O/S, INNER PIVOT, 0.020IN (0.508MM) POST SBE70-0722	ab-ag/03	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AQ02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
200200	6A3471	• SHROUD - 5TH STAGE, HALF, ASSEMBLY OF PRE SBE72-0410	aa-ab/04	2
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
200200A	6A7563	• SHROUD - 5TH STAGE, HALF, ASSEMBLY OF POST SBE72-0410 PRE SBE72-0555 PRE SBE72-0560	ac/04	2
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
200200B	6B1158	• SHROUD - STAGE VSV5, ASSEMBLY OF POST SBE72-0560	ae-ag/05	2
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
200200C	6B1158	• SHROUD - STAGE VSV5, ASSEMBLY OF POST SBE72-0555	ad-ag/04	2
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	6A3471
Part Name:	SHROUD - 5TH STAGE, HALF, ASSEMBLY OF
Manufacturer Code:	0AM53

Part Number:	6A3497
Part Name:	BUSHING HALF
Manufacturer Code:	0AM53

Part Number:	6A7541
Part Name:	BUSHING HALF - O/S, INNER PIVOT, 0.010IN (0.254MM)
Manufacturer Code:	0AM53

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653

HPC Variable Stator Vane Shrouds And Related Part

Export Control

Copyright

Applicability

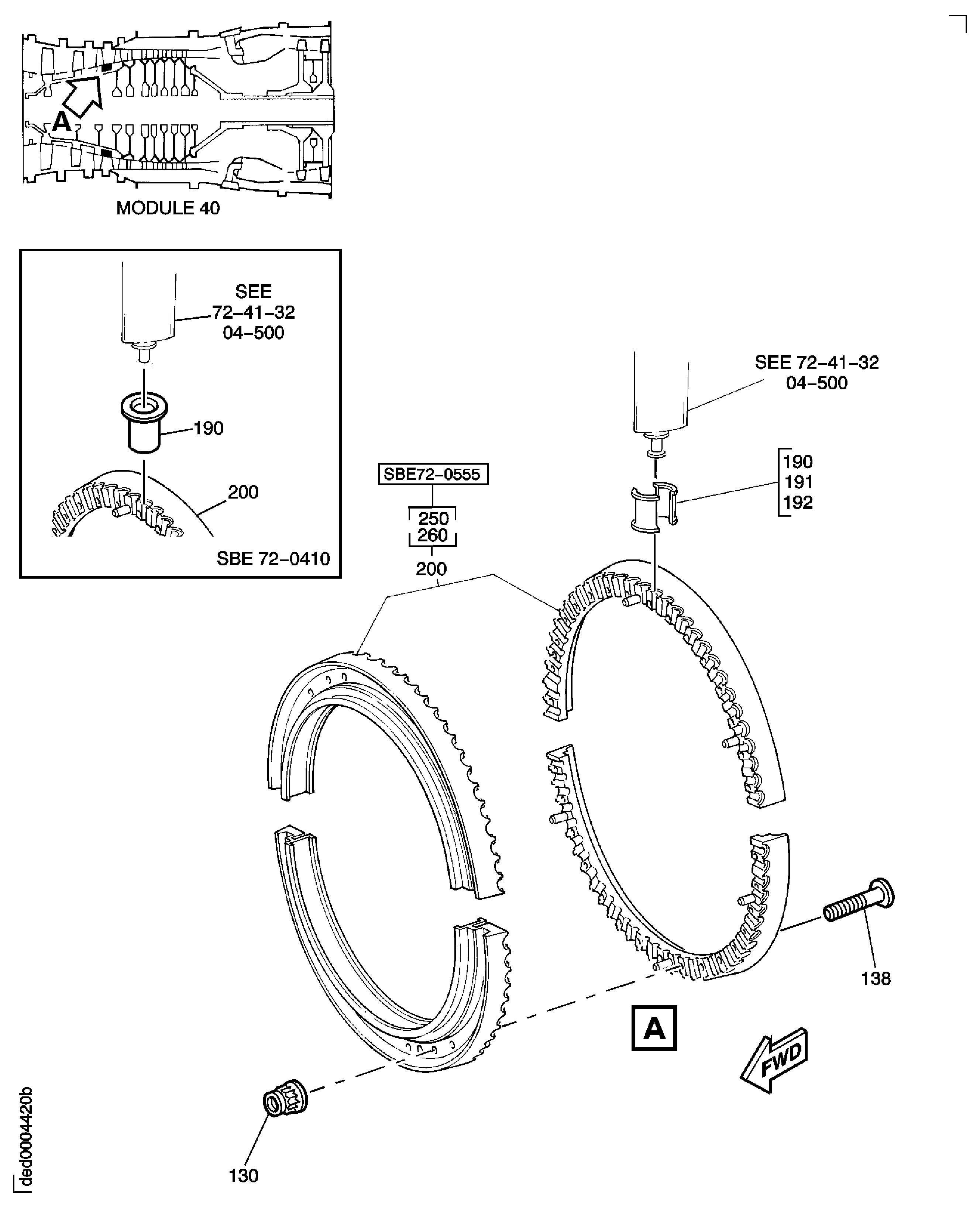

Figure: HPC Variable Stator Vane Shrouds And Related Part
