Diffuser Case Assembly And Fittings

DMC:V2500-A5-72-42-10-01A-941A-D|Issue No:003|Issue Date:2018-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig. Item		Part No.	Description	Effect/Model Applic.	UPA
01
-000		B72421001	ENGINE - DIFFUSER CASE AND FITTINGS, ASSEMBLY, PRE SBE72-0276	aa
-000		SBE0276-01	ENGINE - DIFFUSER CASE AND FITTINGS, ASSEMBLY	ab
010010		673049	• GASKET 77445	aa-ab/01	7
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
020020		584971	• PLUG - HEXAGON MACHINE 77445	aa-ab/01	6
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
030030		AS27475	• UNION - TUBE, DOUBLE ENDED U1653	aa-ab/02	1
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
030030A		KU37810	• UNION - DOUBLE ENDED	aa-ab/01	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
050050		5W1225	• GASKET	aa-ab/02	1
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
050050A		6A4783	• WASHER - FLAT	aa-ab/02	1
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
100100		2A1632	• CONNECTOR - TUBE, DIFFUSER CASE TUBE,DIFSR CASE	aa-ab/01	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
120120		MS21914-4S	• CAP - PRESSURE, SEAL, FLARELESS 96906 PRE SBE72-0276	aa/02	1
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
120120A		MS21914-4S	• CAP - PRESSURE, SEAL, FLARELESS 96906 PRE SBE72-0276	aa/04	1
V2533 AQ02, V2355 AQ03, V2533 SQ02, V2533 SQ03
120120B		MS21914-4R	• CAP - PRESSURE, SEAL, FLARELESS 96906 POST SBE72-0276	ab/01	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
180180	X	2A2222	• BRACKET - LOOP CLAMP PRE SBE72-0016	aa-ab/03	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
200200	X	4W2326	• SCREW - 0.190 DIA X 0.625 OPTION PRE SBE72-0016	aa-ab/03	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
220220	X	4W0001	• NUT, OPTION - .190 DIA OPTION PRE SBE72-0016	aa-ab/03	1
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	77445
Enterprise Name:	PRATT AND WHITNEY
BU Name:	PRATT & WHITNEY
Street:	400 MAIN STREET
City:	EAST HARTFORD
Country:	USA
Phone Number:	8605657700

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	2A1632
Part Name:	CONNECTOR - TUBE, DIFFUSER CASE
Manufacturer Code:	0AM53

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653

Diffuser Case Assembly And Fittings

Export Control

Copyright

Applicability

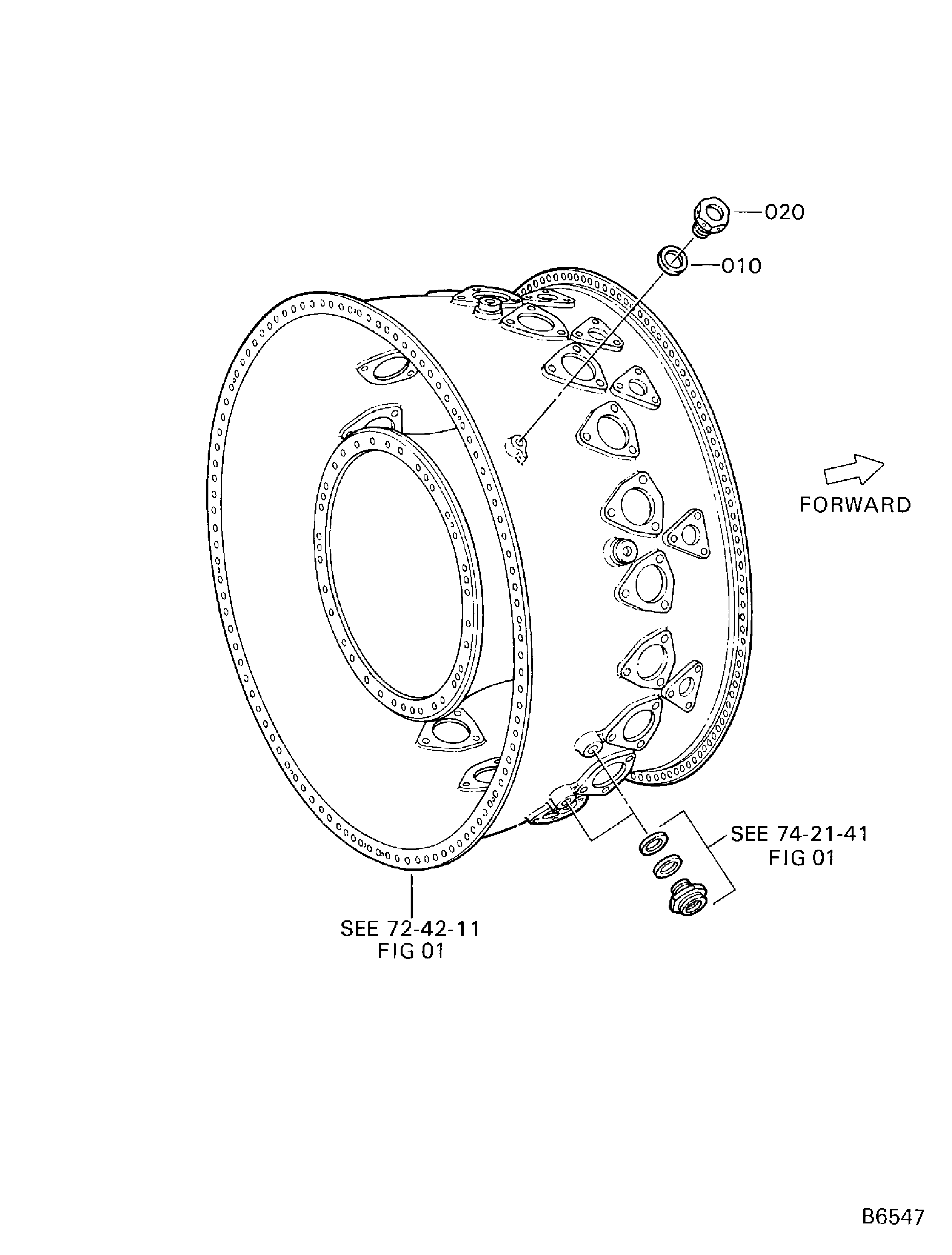

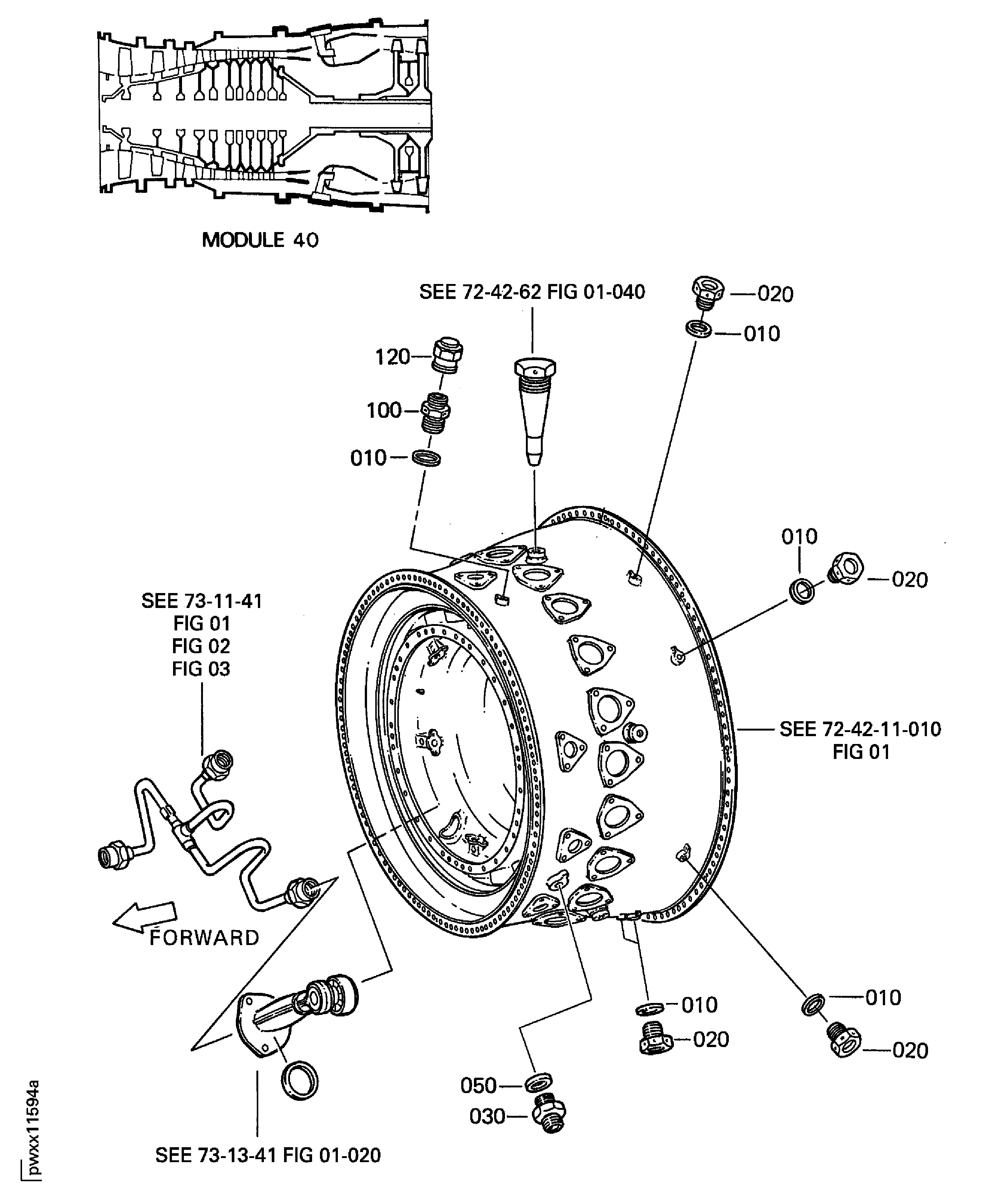

Figure: Diffuser Case Assembly And Fittings
