| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| - | B72422004 | ENGINE-NO.4 BEARING COMPARTMENT TUBES, PRE SBE72-0166 | aa | |
| - | SBE0166-01 | ENGINE-NO.4 BEARING COMPARTMENT TUBES | ab | |
| 001 | 2A0364 | • SEAL, RING, METAL, 0.645 X 0.062 X 0.0265 | aa-ab/01 | 2 |
| 020 | 2A0391 | • GASKET | aa-ab/01 | 1 |
| 040 | 2A0358-01 | • TUBE PRE SBE72-0166 | aa/02 | 1 |
| 040A | 2A2895 | • COVER, SENSING TUBE, OUTER POST SBE72-0166 | ab/01 | 1 |
| 060 | MS9575-06 | • BOLT 96906 | aa-ab/01 | 2 |
| 140 | 2A1036 | • GASKET, 2.125, 3 HOLE | aa-ab/01 | 1 |
| 160 | 2A0363 | • SLEEVE, SEALING, NO. 4 BEARING SCAVENGE | aa-ab/01 | 1 |
| 180 | 2A0350 | • PLATE, RETAINING | aa-ab/01 | 1 |
| 200 | MS9575-09 | • BOLT, MACHINE DRIVE DBL HEX 96906 | aa-ab/01 | 3 |
| 220 | AS15701 | • NUT - TUBE COUPLING U1653 | aa-ab/01 | 1 |
| 240 | 2A0834 | • WIRE, THRUST, .108 | aa-ab/01 | 1 |
| 260 | 2A0357-01 | • TUBE PRE SBE72-0166 | aa/02 | 1 |
| 260A | 2A2894 | • COVER, SENSING TUBE, INNER POST SBE72-0166 | ab/02 | 1 |
| 320 | AS27467 | • UNION, DOUBLE ENDED TUBE NO.4 BRG OIL WEEPLINE U1653 | aa-ab/01 | 1 |
| 340 | AS15825 | • NUT - ASSY,TUBE CLOSURE U1653 | aa-ab/01 | 1 |
| 360 | AN123521 | • RIVET, SOLID POST SBE72-0166 | ab/02 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

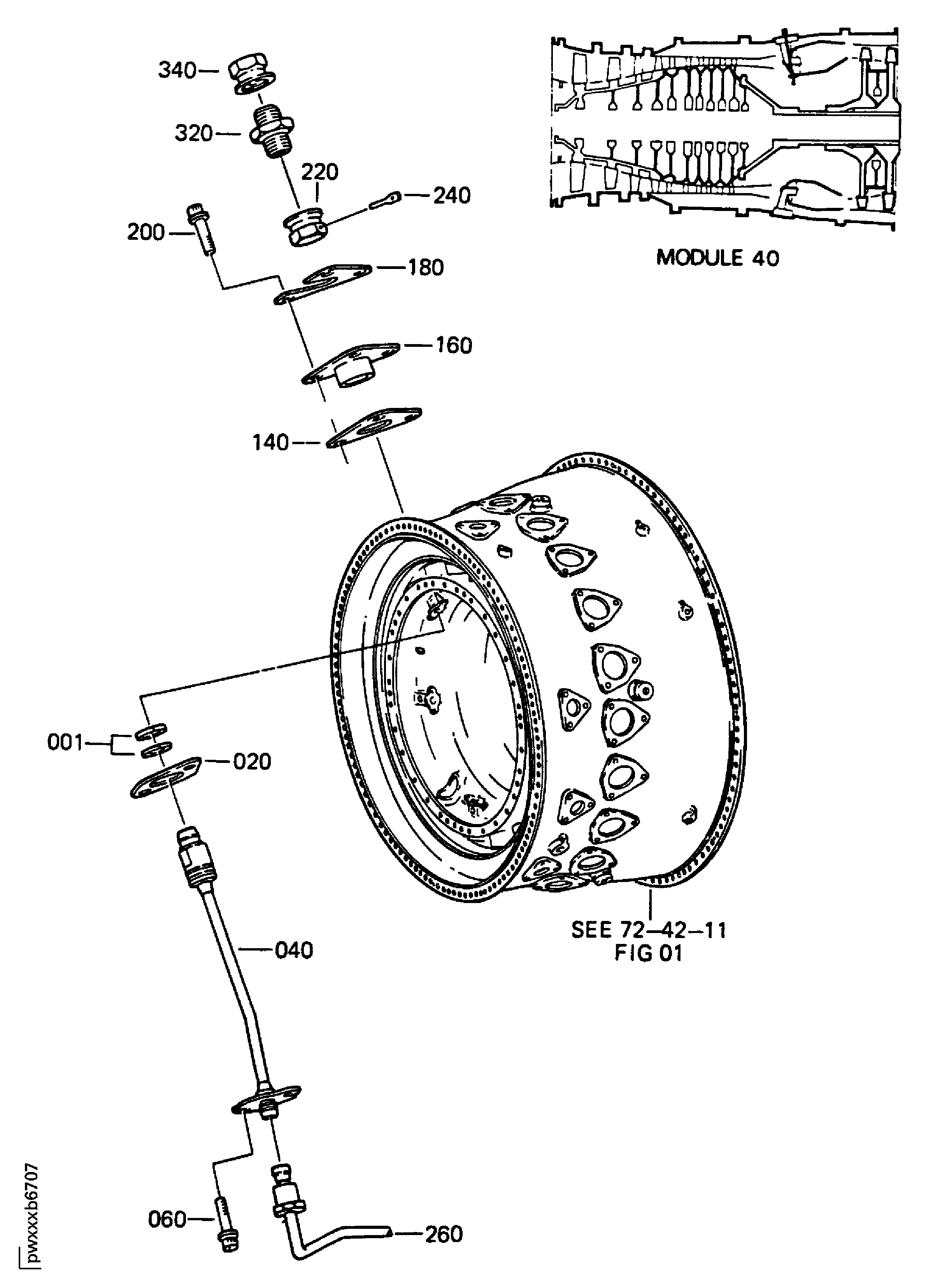

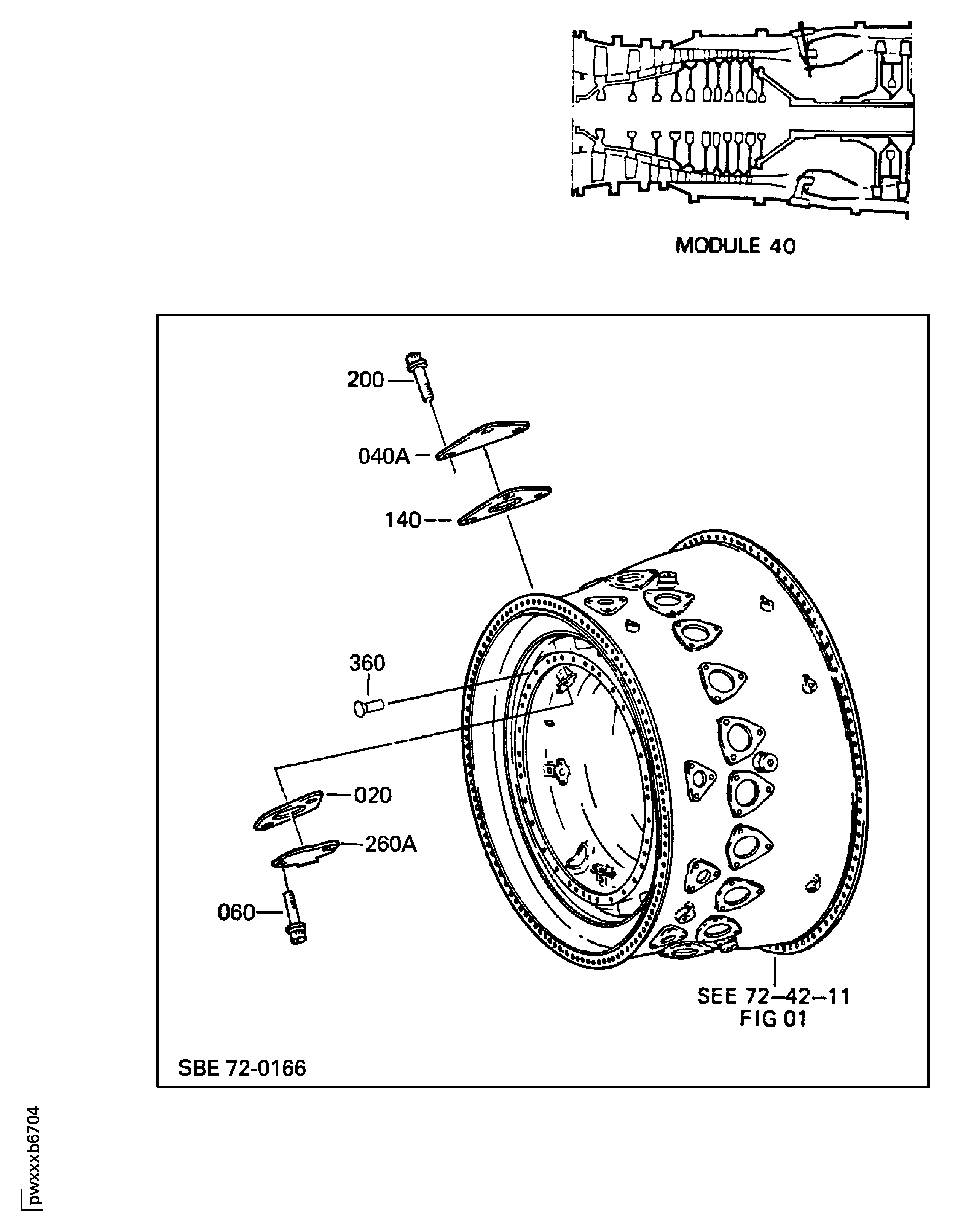

Figure: No. 4 Bearing Compartment Tubes
No. 4 Bearing Compartment Tubes
No. 4 Bearing Compartment Tubes
