DMC:V2500-A5-72-42-20-05A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| - | B72422005 | ENGINE-NO.4 BEARING COMPARTMENT TUBES, PRE SBE70-0432 | aa | |
| - | SBE0432-01 | ENGINE-NO.4 BEARING COMPARTMENT TUBES, PRE SBE72-0239 | ab | |
| - | SBE0239-01 | ENGINE-NO.4 BEARING COMPARTMENT TUBES | ac | |
| 001 | 2A1036 | • GASKET, 2.125, 3 HOLE | aa-ac/01 | 3 |
| 020 | 2A1031-01 | • TUBE PRE SBE72-0239 | aa-ab/02 | 3 |
| 020A | 2A3187-01 | • TUBE POST SBE72-0239 | ac/02 | 3 |
| 020B | 2A3187-01 | • TUBE | aa-ac/03 | 3 |
| 040 | MS9575-07 | • BOLT 96906 | aa-ac/01 | 9 |
| 080 | 2A3136 | • • SHIELD, HEAT, NO. 4 BEARING TUBE POST SBE70-0432 | ac/02 | 1 |
| 100 | AS15706 | • • NUT, TUBE COUPLING U1653 | aa-ac/01 | 1 |
| 120 | AS15782 | • • WIRE, THRUST U1653 | aa-ac/01 | 1 |
| 140 | 775963 | • SEAL, RING 77445 | aa-ac/02 | 3 |
| 140A | 775963 | • SEAL, RING 77445 | aa-ac/03 | 3 |
| 160 | 2A0391 | • GASKET | aa-ac/01 | 3 |
| 200 | 2A1044 | • TUBE, COOLING, NO. 4 BEARING | aa-ac/01 | 3 |
| 220 | MS9575-06 | • BOLT 96906 | aa-ac/01 | 6 |
| 240 | 2A1630 | • SHIELD, NO. 4 BEARING TUBE, HEAT, | aa-ac/01 | 3 |
| 250 | 2A1033 | • SLEEVE, SEALING, 0.700 X 0.900 X 0.900 | aa-ac/01 | 3 |
| 260 | 2A1631 | • SHIELD, NO. 4 BEARING TUBE, HEAT, | aa-ac/01 | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

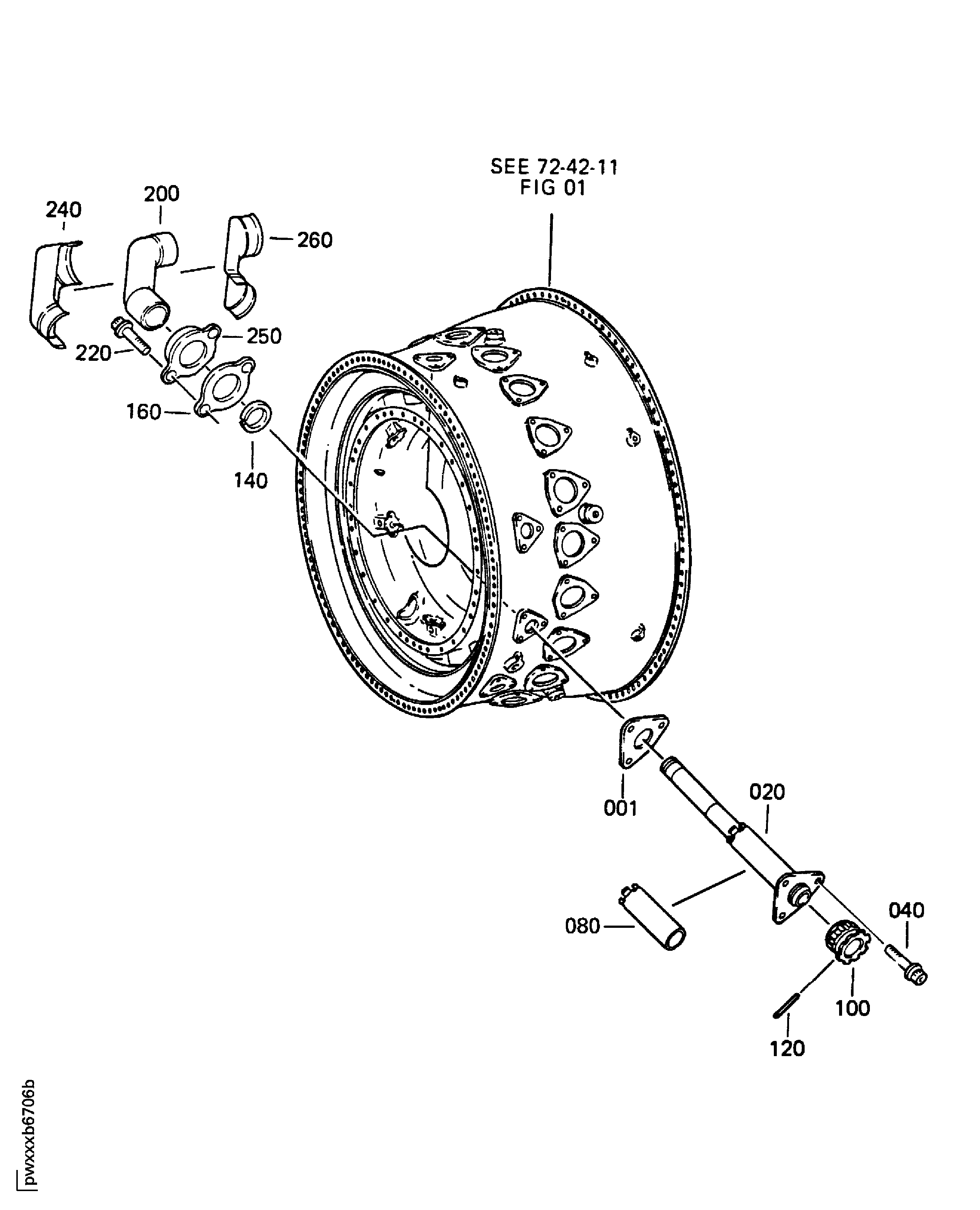

Figure: No. 4 Bearing Compartment Tubes
No. 4 Bearing Compartment Tubes
