DMC:V2500-A5-72-42-30-01A-941A-DIssue No:004.00Issue Date:2017-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA | |
|---|---|---|---|---|---|
| 01 | |||||
| - | B72423001 | ENGINE-NO.4 BEARING FRONT COMPARTMENT, PRE SBE70-0857 | aa | ||
| - | SBE0857-01 | ENGINE-NO.4 BEARING FRONT COMPARTMENT, PRE SBE72-0629 | ab | ||
| - | SBE0629-01 | ENGINE-NO.4 BEARING FRONT COMPARTMENT, PRE SBE72-0675 | ac | ||
| - | SBE0675-01 | ENGINE-NO.4 BEARING FRONT COMPARTMENT | ad | ||
| 010 | AS3209-027 | • PACKING, PREFORMED U1653 PRE SBE70-0857 PRE SBE72-0629 | aa/01 | 1 | |
| 010A | ST1946-027 | • PACKING, PREFORMED 77445 POST SBE70-0857 POST SBE72-0629 | ab-ac/01 | 1 | |
| 020 | MS9581-11 | • WASHER, KEY-90 DEGREE 96906 PRE SBE72-0629 | aa-ab/01 | 1 | |
| 020A | ST5141-11 | • WASHER 77445 POST SBE72-0629 | ac/01 | 1 | |
| 040 | ST1513-05 | • BOLT, MACHINE 77445 PRE SBE72-0629 | aa-ab/01 | 1 | |
| 040A | ST5027-08 | • BOLT 77445 POST SBE72-0629 | ac/01 | 2 | |
| 060 | X | MS9581-10 | • WASHER, KEY-90 DEGREE 96906 PRE SBE72-0629 | aa-ab/01 | 1 |
| 060 | X | ST5141-11 | • WASHER - FLAT, 0.312 X 0.625 X 0.062 77445 POST SBE72-0629 | ac/01 | 1 |
| 080 | X | ST1514-06 | • BOLT, MACHINE 77445 PRE SBE72-0629 | aa-ab/01 | 1 |
| 080A | ST5027-08 | • BOLT 77445 POST SBE72-0629 | ac/01 | 1 | |
| 100 | 2A0558 | • GASKET, 10.914 X 11.244, ASSEMBLY OF PRE SBE72-0675 | aa-ac/01 | 1 | |
| 100A | 2A4525-01 | • GASKET, 10.914 X 11.244, ASSEMBLY OF POST SBE72-0675 | ad/01 | 1 | |
| 160 | 2A0104 | • WASHER, KEY | aa-ac/01 | 15 | |
| 180 | 2A1199 | • NUT, PLAIN HEXAGON | aa-ac/01 | 15 | |
| 200 | 2A0971 | • SPACER, NO. 4 BEARING, 0.250 - 28 X 0.190 - 32 | aa-ac/01 | 4 | |
| 240 | 361367 | • NUT, PLAIN HEX. .190 -32X | aa-ac/01 | 4 | |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | |||||

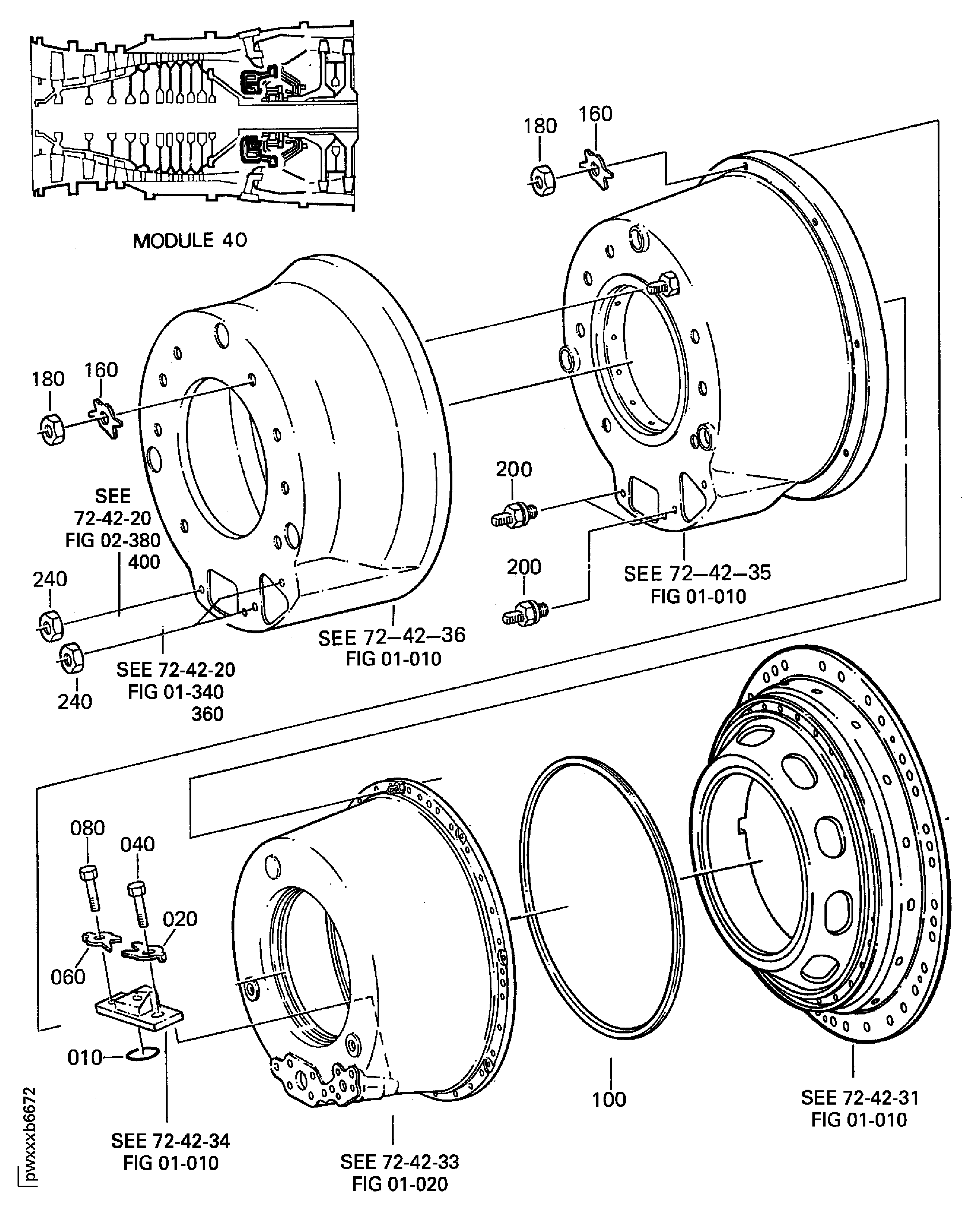

Figure: No. 4 Bearing Front Compartment Assembly
No. 4 Bearing Front Compartment Assembly
