DMC:V2500-A5-72-42-36-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72423601 | ENGINE-NO.4 BEARING FRONT HEATSHIELD | aa | ||
| 010 | 2A1330 | • SHIELD - HEAT #4 BRG-ASSY OF | aa | 1 |
| 060 | 2A0976 | • • BRACKET - ANGLE | aa | 1 |
| 080 | AN123315 | • • RIVET - SOLID UNIVERSAL HD 81352 | aa | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

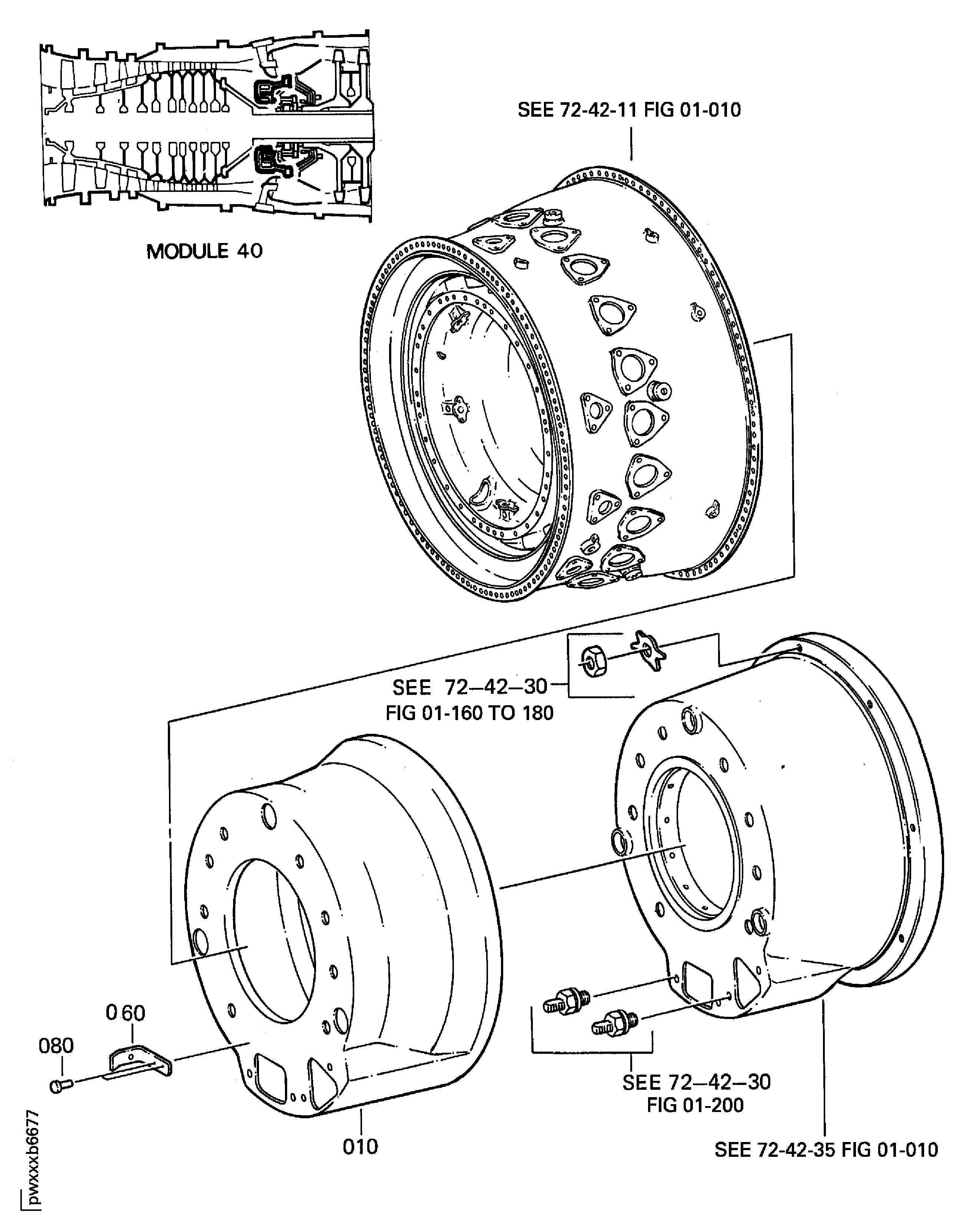

Figure: ENGINE-NO.4 BEARING FRONT HEATSHIELD
NO.4 BEARING FRONT HEATSHIELD
