V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72425001 | ENGINE-STATIC SEAL, PRE SBE70-0798 | aa | ||
| SBE0798-01 | ENGINE-STATIC SEAL, PRE SBE70-0997 | ab | ||
| SBE0997-01 | ENGINE-STATIC SEAL | ac | ||
| 100 | 6A4447 | • SEAL - A/O STATIC AIR,HP.COMPRESSOR PRE SBE70-0997 | aa-ab | 1 |
| 100A | 6B1412 | • SEAL - HPC REAR STATIC ALT 6A4447 POST SBE70-0997 REF SBE72-0641 | aa-ac | 1 |
| -100B | 6A4447 | • SEAL - HPC REAR STATIC ALT 6B1412 POST SBE70-0997 REF SBE72-0641 | aa-ac | 1 |
| 102 | 4W1486 | • BOLT - .250 DIA X .750 | aa-ac | 30 |
| 123 | AS16289 | • • RIVET - SOLID UNIVERSAL HD, U1653 (VRS6203) POST SBE70–0353 | ***** | 1 |
| 124 | AS16330 | • • RIVET - SOLID UNIVERSAL HD, U1653 (VRS6203) POST SBE70–0353 | ***** | 1 |
| 126 | AS16689 | • • RIVET - SOLID CSK HEAD U1653 POST SBE70-0798 | ab-ac | 8 |
| 127 | AS16730 | • • RIVET - SOLID CSK HEAD OVERSIZE U1653 POST SBE70-0798 | ab-ac | 8 |
| 160 | 6A5943 | • • SEAL - , (VRS6203) POST SBE70–0353 | ***** | 1 |
| 180 | 6A1576 | • • CONNECTR - VENT POST SBE70-0798 | ab-ac | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

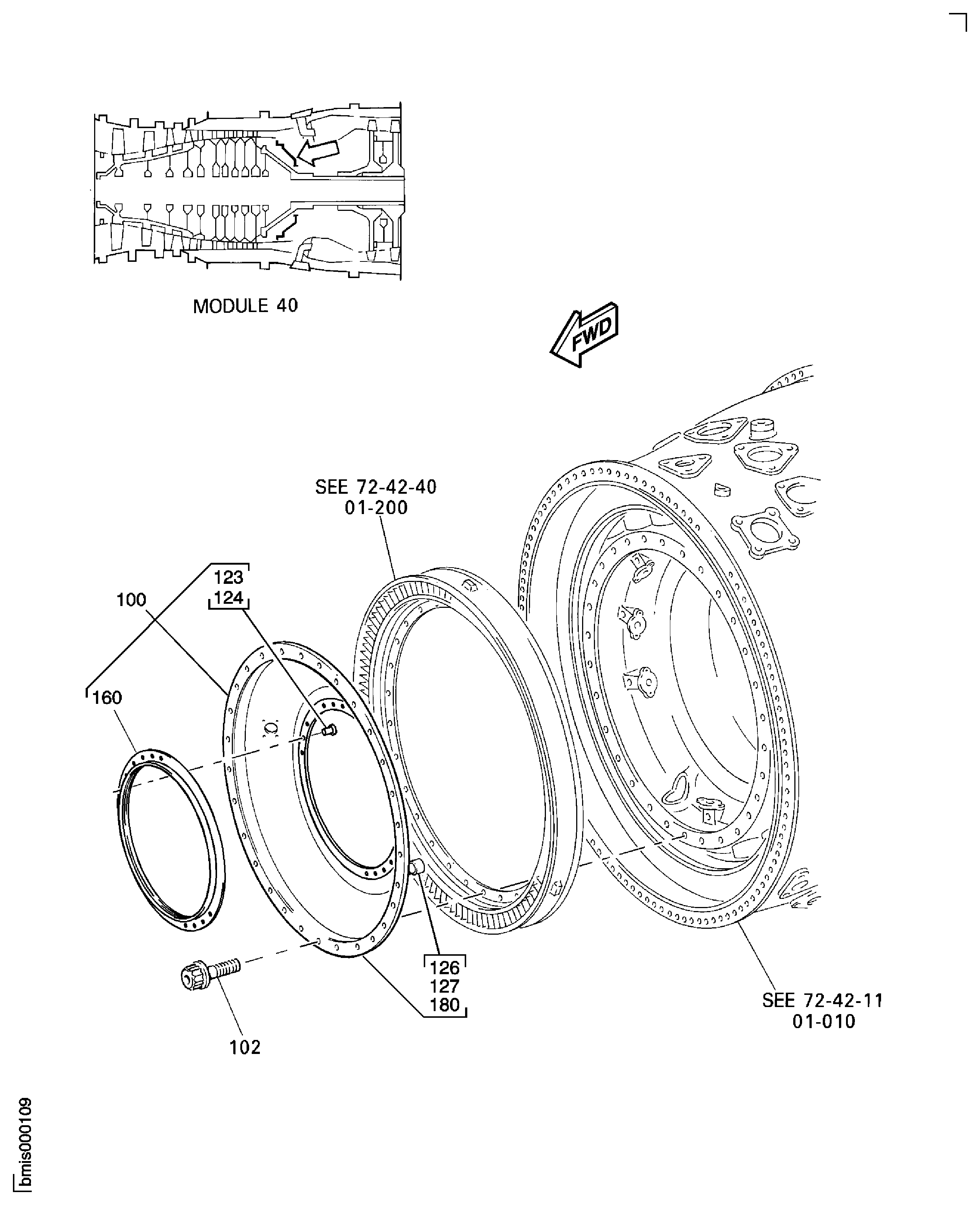

Figure: ENGINE-STATIC SEAL
HP COMPRESSOR STATIC AIR SEAL
