DMC:V2500-A5-72-42-61-01A-941A-DIssue No:002.00Issue Date:2014-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72426101 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0159 | aa | |
| - | SBE0159-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0315 AND PRE SBE72-0330 | ab | |
| - | SBE0315-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0330 | ac | |
| - | SBE0330-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0331 | ad | |
| - | SBE0331-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0447 AND PRE SBE70-0995 | ae | |
| - | SBE0447-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0628 | af | |
| - | SBE0995-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER, PRE SBE72-0628 | ag | |
| - | SBE0628-01 | ENGINE-COMBUSTION CHAMBER OUTER LINER | ah | |
| 501 | 2A0550-01 | • CHAMBER, COMB OUTER, A/O PRE SBE72-0159 | aa/01 | 1 |
| 501A | 2A2723-01 | • CHAMBER, COMB, OUTER ASSY OF POST SBE72-0159 | ab-ah/02 | 1 |
| 501B | 2A4314-01 | • CHAMBER, COMBUSTION 77445 POST SBE72-0628 | ah/04 | 1 |
| 501C | 2A3345-01 | • CHAMBER, COMB, OUTER, ASSY OF POST SBE72-0315 PRE SBE72-0330 | ac/02 | 1 |
| 501D | 2A3440-01 | • CHAMBER, ASYO, COMB, OUTER POST SBE72-0330 PRE SBE72-0447 | ad-ae/02 | 1 |
| 501E | 2A3442-01 | • CHAMBER, ASYO, COMB, OUTER POST SBE72-0331 PRE SBE72-0447 | ae/02 | 1 |
| 501F | 2A3345-001 | • CHAMBER, COMB, OUTER , ASSY OF 77445 POST SBE72-0315 PRE SBE72-0330 | ac/02 | 1 |
| 501G | 2A3440-002 | • CHAMBER, ASYO COMB, OUTER 77445 POST SBE72-0330 PRE SBE72-0331 | ad/02 | 1 |
| 501H | 2A3440-001 | • CHAMBER, ASYO COMB, OUTER 77445 POST SBE72-0330 PRE SBE72-0331 | ad/02 | 1 |
| 501I | 2A3442-001 | • CHAMBER, COMB, OUTER, ASYO 77445 POST SBE72-0331 PRE SBE72-0447 | ae/02 | 1 |
| 501J | 2A3442-002 | • CHAMBER, COMB, OUTER, ASYO 77445 POST SBE72-0331 PRE SBE72-0447 | ae/02 | 1 |
| 501K | 2A3442-003 | • CHAMBER, COMBUSTION OUTER POST SBE72-0447 PRE SBE72-0447 | af-ae/02 | 1 |
| 501L | 2A3442-003 | • CHAMBER, COMBUSTION OUTER POST SBE72-0447 PRE SBE72-0628 | af-ag/02 | 1 |
| 501M | 2A4284-01 | • CHAMBER, ASYO, COMB, OUTER POST SBE70-0995 PRE SBE72-0628 | ag/04 | 1 |
| 501N | 2A3440-003 | • CHAMBER, ASYO, COMB, OUTER 77445 POST SBE72-0628 | ah/02 | 1 |
| 501O | 2A3440-007 | • CHAMBER, ASYO, COMB, OUTER 77445 POST SBE72-0628 | ah/02 | 1 |
| 501P | 2A3442-006 | • CHAMBER, ASYO, COMB, OUTER 77445 POST SBE72-0628 | ah/02 | 1 |
| 501Q | 2A3442-008 | • CHAMBER, ASYO, COMB, OUTER 77445 POST SBE72-0628 | ah/02 | 1 |
| 501R | 2A3440-004 | • CHAMBER, ASYO, COMB, OUTER 77445 POST SBE72-0628 | ah/02 | 1 |
| 501S | 2A3440-006 | • CHAMBER, ASYO, COMB, OUTER 77445 POST SBE72-0628 | ah/02 | 1 |
| 501T | 2A3345-003 | • CHAMBER, COMB, OUTER, ASSY OF 77445 POST SBE72-0628 | ah/02 | 1 |
| 501U | 2A3442-005 | • CHAMBER, ASYO, COMB, OUTER 77445 POST SBE72-0628 | ah/02 | 1 |
| 501V | 2A4312-01 | • CHAMBER, COMB, OUTER ASSY OF 77445 POST SBE72-0628 | ah/02 | 1 |
| 501W | 2A4314-001 | • CHAMBER, COMBUSTION 77445 POST SBE72-0628 | ah/04 | 1 |
| 501X | 2A3442-004 | • CHAMBER, ASYO, COMB, OUTER 77445 POST SBE72-0628 | ah/02 | 1 |
| 501Y | 2A3442-007 | • CHAMBER, ASYO, COMB, OUTER 77445 POST SBE72-0628 | ah/02 | 1 |
| 501Z | 2A3345-002 | • CHAMBER, COMBUSTION 77445 POST SBE72-0628 | ah/02 | 1 |
| 501AA | 2A3440-005 | • CHAMBER, ASYO, COMB, OUTER 77445 | ah/02 | 1 |
| 520 | 2A0546-01 | • LINER, A/O CC OUTER PRE SBE72-0159 | aa/01 | 1 |
| 520A | 2A2711-01 | • LINER, CC, OUTER, ASSY OF POST SBE72-0159 | ab-ah/01 | 1 |
| 520B | 2A2711-01 | • LINER, CC, OUTER, ASSY OF | aa-ah/03 | 1 |
| 570 | 2A0328 | • • • BUSHING | aa-ah/02 | 5 |
| 590 | 2A0329 | • • • SEAL, SPARK IGNITER | aa-ah/02 | 2 |
| 600 | 2A1613 | • • LINER, SEGMENT, COMBUSTION CHAMBER PRE SBE72-0315 | aa-ab/02 | 10 |
| 600A | 2A3318 | • • LINER, SEGMENT, COMBUSTION CHAMBER, 5 OD POST SBE72-0315 PRE SBE72-0628 | aa-ah/02 | 10 |
| 600B | 2A4298 | • • LINER, SEGMENT, COMBUSTION CHAMBER, 5 OD 77445 POST SBE72-0628 | ah/02 | 10 |
| 610 | 2A2342 | • • LINER, SEGMENT, CC, 4 OD PRE SBE72-0315 | aa-ab/02 | 10 |
| 610A | 2A3317 | • • LINER, SEGMENT, CC, 4 OD POST SBE72-0315 PRE SBE72-0447 | aa-ah/02 | 10 |
| 610B | 2A3805 | • • LINER, SEGMENT, CC, 4 OD POST SBE72-0447 | af-ah/02 | 10 |
| 610C | 2A4296 | • • LINER, SEGMENT, CC, 4 OD 77445 POST SBE72-0628 | ah/02 | 10 |
| 620 | 2A2341 | • • LINER, SEGMENT, CC, 4 OD PRE SBE72-0315 | aa-ab/02 | 10 |
| 620A | 2A3316 | • • LINER, SEGMENT, CC, 3 OD POST SBE72-0315 PRE SBE72-0447 | ac-ae/02 | 10 |
| 620B | 2A3804 | • • LINER, SEGMENT, CC, 3 OD POST SBE72-0447 | af-ah/02 | 10 |
| 620C | 2A4294 | • • LINER, SEGMENT, CC, 3 OD 77445 POST SBE72-0628 | ah/02 | 10 |
| 630 | 2A2083 | • • LINER, SEGMENT, COMBUSTION CHAMBER, 1 OD PRE SBE72-0315 | aa-ab/02 | 9 |
| 630A | 2A3311 | • • LINER, SEGMENT, COMBUSTION CHAMBER, 10D POST SBE72-0315 PRE SBE72-0628 | ac-ag/02 | 9 |
| 630B | 2A4289 | • • LINER - SEGMENT,CC,10D 77445 POST SBE72-0628 | ah/02 | 9 |
| 640 | 2A2084 | • • LINER, SEGMENT, COMBUSTION CHAMBER, 1 OD PRE SBE72-0315 | aa-ab/02 | 1 |
| 640A | 2A2084 | • • LINER, SEGMENT, COMBUSTION CHAMBER, 1 OD | aa-ah/02 | 1 |
| 640B | 2A3312 | • • LINER, SEGMENT, COMBUSTION CHAMBER, 10D POST SBE72-0315 PRE SBE72-0628 | ac-ag/02 | 1 |
| 640C | 2A4290 | • • LINER - SEGMENT,CC,10D IGN 77445 POST SBE72-0628 | ah/02 | 1 |
| 650 | 2A2366 | • • LINER, SEGMENT, CC, 2OD PRE SBE72-0159 | aa/01 | 8 |
| 650A | 2A2085 | • • LINER, SEGMENT, COMBUSTION CHAMBER POST SBE72-0159 PRE SBE72-0315 | ab/02 | 8 |
| 650B | 2A3313 | • • LINER, SEGMENT, COMBUSTION CHAMBER, 20D POST SBE72-0315 PRE SBE72-0628 | ac-ag/02 | 8 |
| 650C | 2A4291 | • • LINER - SEGMENT,CC,20D 77445 POST SBE72-0628 | ah/02 | 8 |
| 660 | 2A2367 | • • LINER, SEGMENT, CC, 2OD, IGN PRE SBE72-0159 | aa/01 | 1 |
| 660A | 2A2086 | • • LINER, SEGMENT, COMBUSTION CHAMBER POST SBE72-0159 PRE SBE72-0315 | ab/02 | 1 |
| 660B | 2A3314 | • • LINER, SEGMENT, COMBUSTION CHAMBER, 20D POST SBE72-0315 PRE SBE72-0628 | ac-ag/02 | 1 |
| 660C | 2A4292 | • • LINER - SEGMENT,CC,20D IGN 77445 POST SBE72-0628 | ah/02 | 1 |
| 670 | 2A2368 | • • LINER, SEGMENT, CC, 2OD, IGN PRE SBE72-0159 | aa/01 | 1 |
| 670A | 2A2087 | • • LINER, SEGMENT, COMBUSTION CHAMBER POST SBE72-0159 PRE SBE72-0315 | ab/02 | 1 |
| 670B | 2A3315 | • • LINER, SEGMENT, COMBUSTION CHAMBER, 20D | ac-ag/02 | 1 |
| 670C | 2A4293 | • • LINER - SEGMENT,CC,20D IGN 77445 POST SBE72-0628 | ah/02 | 1 |
| 680 | 2A2096 | • • LINER, SEGMENT, COMBUSTION CHAMBER PRE SBE72-0315 | aa-ab/02 | 20 |
| 680A | 2A3324 | • • LINER, SEGMENT, COMBUSTION CHAMBER POST SBE72-0315 PRE SBE72-0330 | aa-ah/02 | 20 |
| 680B | 2A2452 | • • LINER, SEGMENT, COMBUSTION CHAMBER POST SBE72-0330 PRE SBE72-0628 | aa-ah/02 | 20 |
| 680C | 2A4299 | • • LINER - SEGMENT,CC,BULKHEAD 77445 POST SBE72-0628 | ah/02 | 20 |
| 690 | 2A2380 | • • GUIDE, FUEL NOZZLE PRE SBE72-0315 | aa-ab/02 | 20 |
| 690A | 2A3325 | • • GUIDE, FUEL NOZZLE POST SBE72-0315 PRE SBE72-0331 | aa-ah/02 | 20 |
| 690B | 2A3341 | • • GUIDE, FUEL POST SBE72-0331 | ae-ah/02 | 20 |
| 700 | 2A0960 | • • RETAINER, FUEL NOZZLE GUIDE | aa-ah/02 | 20 |
| 720 | 2A0966 | • • BUSHING, SLEEVE | aa-ah/02 | 20 |
| 740 | 2A0356 | • • WASHER, FLAT, 0.38 X 0.04 | aa-ah/02 | 110 |
| 760 | 2A0327 | • • WASHER, FLAT | aa-ah/02 | 200 |
| 780 | 4W0001 | • • NUT - .190 DIA (SEE APPENDIX 5) | aa-ah/02 | 330 |
| 800 | 2A0962 | • • COVER, ACCESS | aa-ah/02 | 1 |
| 820 | ST1300-03 | • • RIVET, SOLID UNIVERSAL HEAD 77445 | aa-ah/02 | 7 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

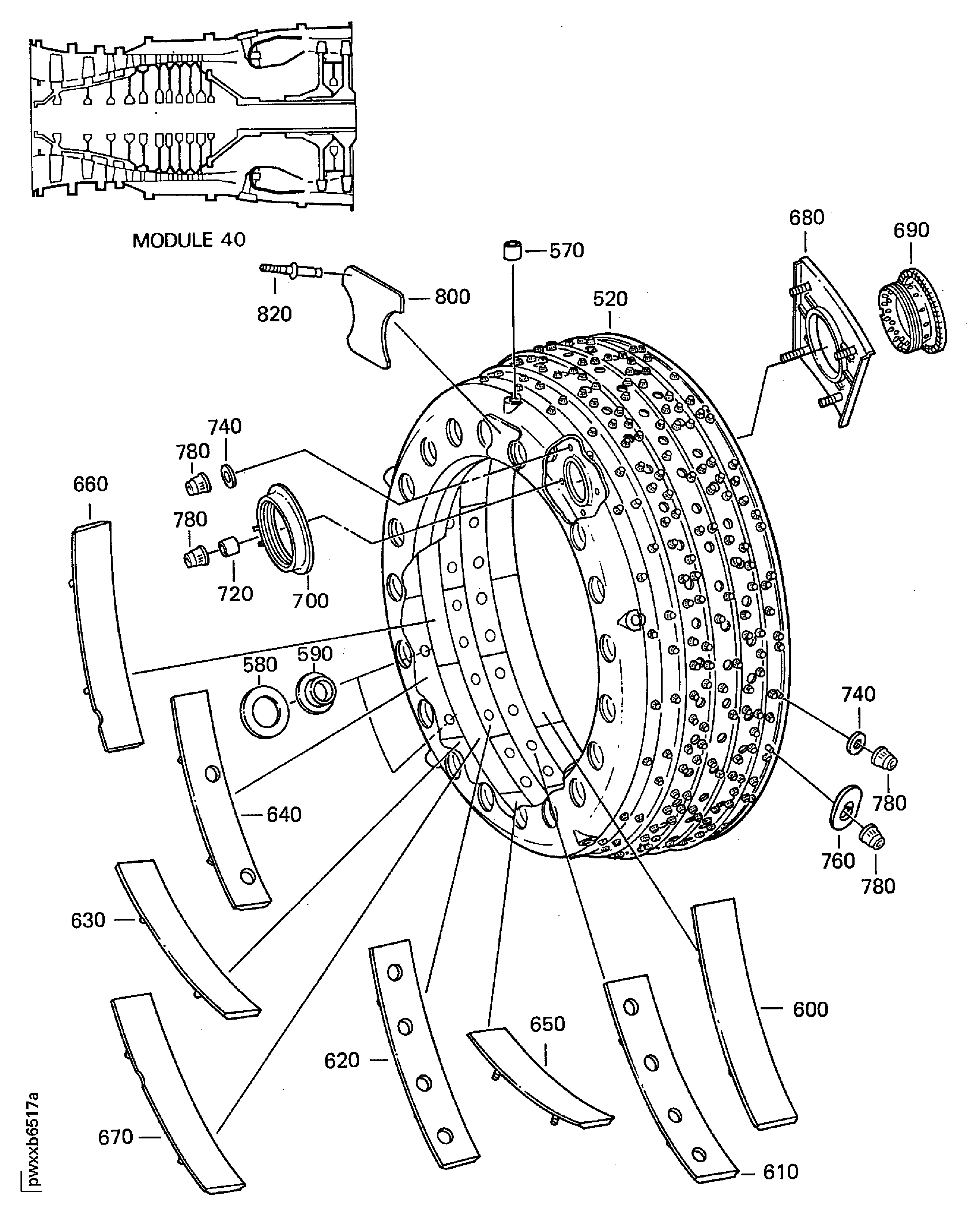

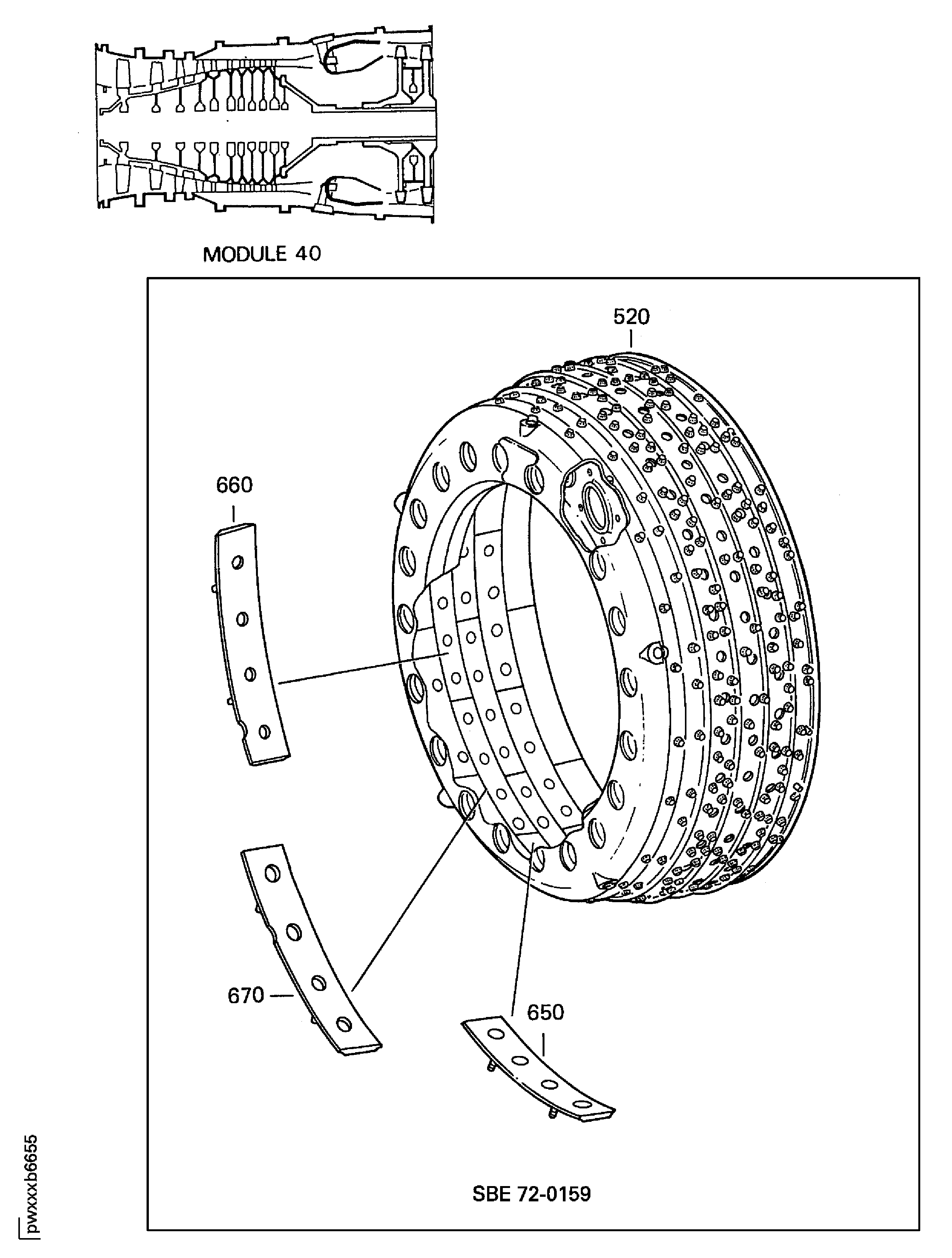

Figure: Outer Combustion Chamber Assembly
Outer Combustion Chamber Assembly
Outer Combustion Chamber Assembly
