DMC:V2500-A5-72-44-20-01A-941A-DIssue No:003.00Issue Date:2018-08-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72442001 | ENGINE - STAGE 1 HPT VANE CLUSTER, ASSEMBLY, PRE SBE72-0151 | aa | |
| - | SBE0151-01 | ENGINE - STAGE 1 HPT VANE CLUSTER, ASSEMBLY, PRE SBE72-0147 | ab | |
| - | SBE0147-01 | ENGINE - STAGE 1 HPT VANE CLUSTER, ASSEMBLY, PRE SBE72-0291, AND PRE SBE72-0562 | ac | |
| - | SBE0291-01 | ENGINE - STAGE 1 HPT VANE CLUSTER, ASSEMBLY, PRE SBE72-0598 | ad | |
| - | SBE0562-01 | ENGINE - STAGE 1 HPT VANE CLUSTER, ASSEMBLY, PRE SBE72-0576 | ae | |
| - | SBE0576-01 | ENGINE - STAGE 1 HPT VANE CLUSTER, ASSEMBLY, PRE SBE72-0598 | af | |
| - | SBE0598-01 | ENGINE - STAGE 1 HPT VANE CLUSTER, ASSEMBLY | ag | |
| 240 | 2A0561 | • VANE - HPT, 1ST STAGE, ASSEMBLY OF PRE SBE72-0147 | aa-ag/01 | 40 |
| 240A | 2A2761 | • VANE - HPT, 1ST STAGE , ASSEMBLY OF POST SBE72-0147 PRE SBE72-0291 | ac/01 | 40 |
| 240B | 2A2761 | • VANE - HPT, 1ST STAGE , ASSEMBLY OF PRE SBE72-0291 | aa-ac/02 | 40 |
| 240C | 2A4201 | • VANE - HPT, 1ST STAGE, ASSEMBLY OF POST SBE72-0291 PRE SBE72-0562 | ad/03 | 40 |
| 240D | 2A4271 | • VANE - HPT, 1ST STAGE, ASSEMBLY OF POST SBE72-0562 PRE SBE72-0562 | *****/08 | 40 |
| 240E | 2A4081 | • VANE - HPT, 1ST STAGE, ASSEMBLY OF POST SBE72-0562 PRE SBE72-0576 | ae/08 | 40 |
| 240F | 2A4271 | • VANE - HPT, 1ST STAGE, ASSEMBLY OF POST SBE72-0576 POST SBE72-0562 | af-ag/08 | 40 |
| 310 | 2A0538 | • • COVER - HPT, 1ST STAGE, VANE PRE SBE72-0147 | aa-ab/05 | 1 |
| 310A | 2A2765 | • • COVER POST SBE72-0147 | ac-ag/05 | 1 |
| 310B | 2A2765 | • • COVER | aa-ag/06 | 1 |
| 360 | 2A0534-01 | • • BAFFLE - HPT VANE, ASSEMBLY OF | aa-ag/07 | 1 |
| 366 | 2A0536 | • • COVER - HPT, 1ST STAGE, VANE | aa-ag/05 | 1 |
| 366A | 2A0536 | • • COVER - HPT, 1ST STAGE, VANE | aa-ag/06 | 1 |
| 367 | 2A0537 | • • COVER - HPT, 1ST STAGE, VANE | aa-ag/05 | 1 |
| 367A | 2A0537 | • • COVER - HPT, 1ST STAGE, VANE | aa-ag/06 | 1 |
| 480 | 2A2328 | • SEAL - HPT VANE, 1ST STAGE | aa-ag/05 | 40 |
| 480A | 2A2328 | • SEAL - HPT VANE, 1ST STAGE | aa-ag/06 | 40 |
| 485 | 2A4126 | • SEAL - HPT, 1ST STAGE POST SBE72-0562 | ae-ag/08 | 40 |
| 510 | 2A2325 | • SEAL - HPT VANE, 1ST STAGE, ASSEMBLY OF PRE SBE72-0151 | aa-ag/01 | 40 |
| 512 | 2A2676 | • SEAL POST SBE72-0151 PRE SBE72-0598 | ab-af/05 | 40 |
| 512A | 2A2676 | • SEAL PRE SBE72-0598 | aa-af/06 | 40 |
| 512B | 2A4351 | • SEAL - VANE HPT, 1ST STAGE POST SBE72-0598 | ag/07 | 40 |
| 514 | 2A2677 | • SEAL POST SBE72-0151 PRE SBE72-0598 | ab-af/05 | 40 |
| 514A | 2A2677 | • SEAL PRE SBE72-0598 | aa-af/06 | 40 |
| 514B | 2A4451 | • SEAL - VANE HPT, 1ST STAGE POST SBE72-0598 | ag/07 | 40 |
| 520 | 2A0355 | • BOLT - MACHINE, 0.250 - 28 X 0.555 | aa-ag/07 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

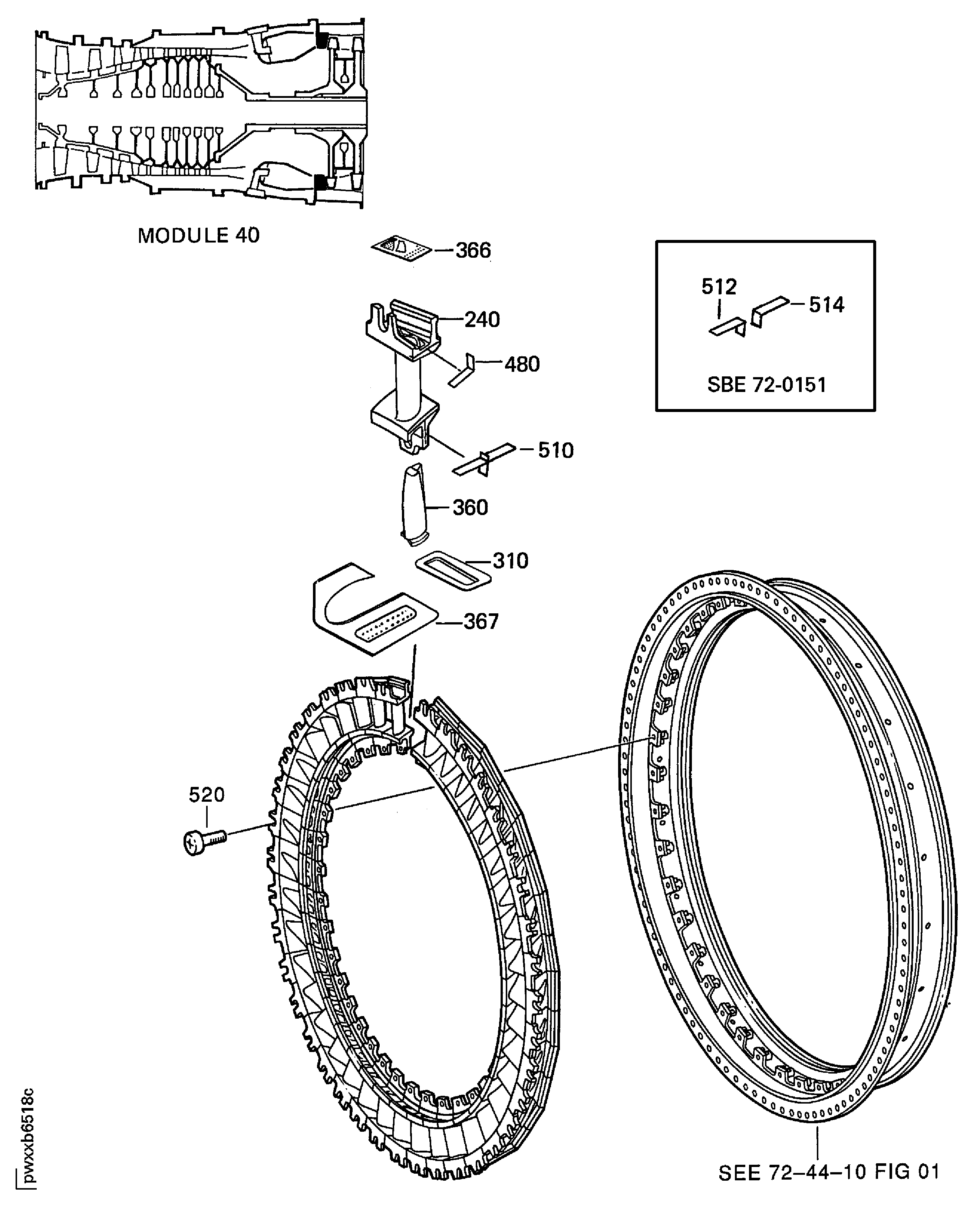

Figure: HPT Stage 1 Vane Cluster Assembly
HPT Stage 1 Vane Cluster Assembly
