HPT Stage 1 Cooling (TOBI) Duct And Duct Deflector

DMC:V2500-A5-72-44-50-01A-941A-D|Issue No:004.00|Issue Date:2019-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
-000B72445001ENGINE - STAGE 1 HPT COOLING DUCT, ASSEMBLY, PRE SBE72-0241
aa
-000SBE0241-01ENGINE - STAGE 1 HPT COOLING DUCT, ASSEMBLY, PRE SBE72-0381
ab
-000SBE0381-01ENGINE - STAGE 1 HPT COOLING DUCT, ASSEMBLY, PRE SBE72-0475
ac
-000SBE0475-01ENGINE - STAGE 1 HPT COOLING DUCT, ASSEMBLY, PRE SBE72-0562
ad
-000SBE0562-01ENGINE-STAGE 1 HPT COOLING DUCT ASSEMBLY
ae
0100102A2141-01• DUCT - COOLING, HPT, 1ST STAGE, ASSEMBLY OF
PRE SBE72-0241
aa/011
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010A2A3180-01• DUCT - CLG HPT, STAGE 1, ASSEMBLY OF
77445
POST SBE72-0241
PRE SBE72-0381
ab/021
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010B2A3487-01• DUCT - COOLING, HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0381
PRE SBE72-0475
PRE SBE72-0562
ac/021
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010C2A3914-01• DUCT - COOLING, HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0475
PRE SBE72-0562
ad/021
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010D2A3914-001• DUCT - COOLING, HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0562
ae/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
010010E2A3487-001• DUCT - COOLING, HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0562
ae/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
010010F2A4086• DUCT - COOLING, HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0562
ae/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
0600602A0869• • PIN - SHOULDER
aa-ae/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
0800802A0086• DUCT - COOLING, HPT, DEFLECTOR
aa-ae/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

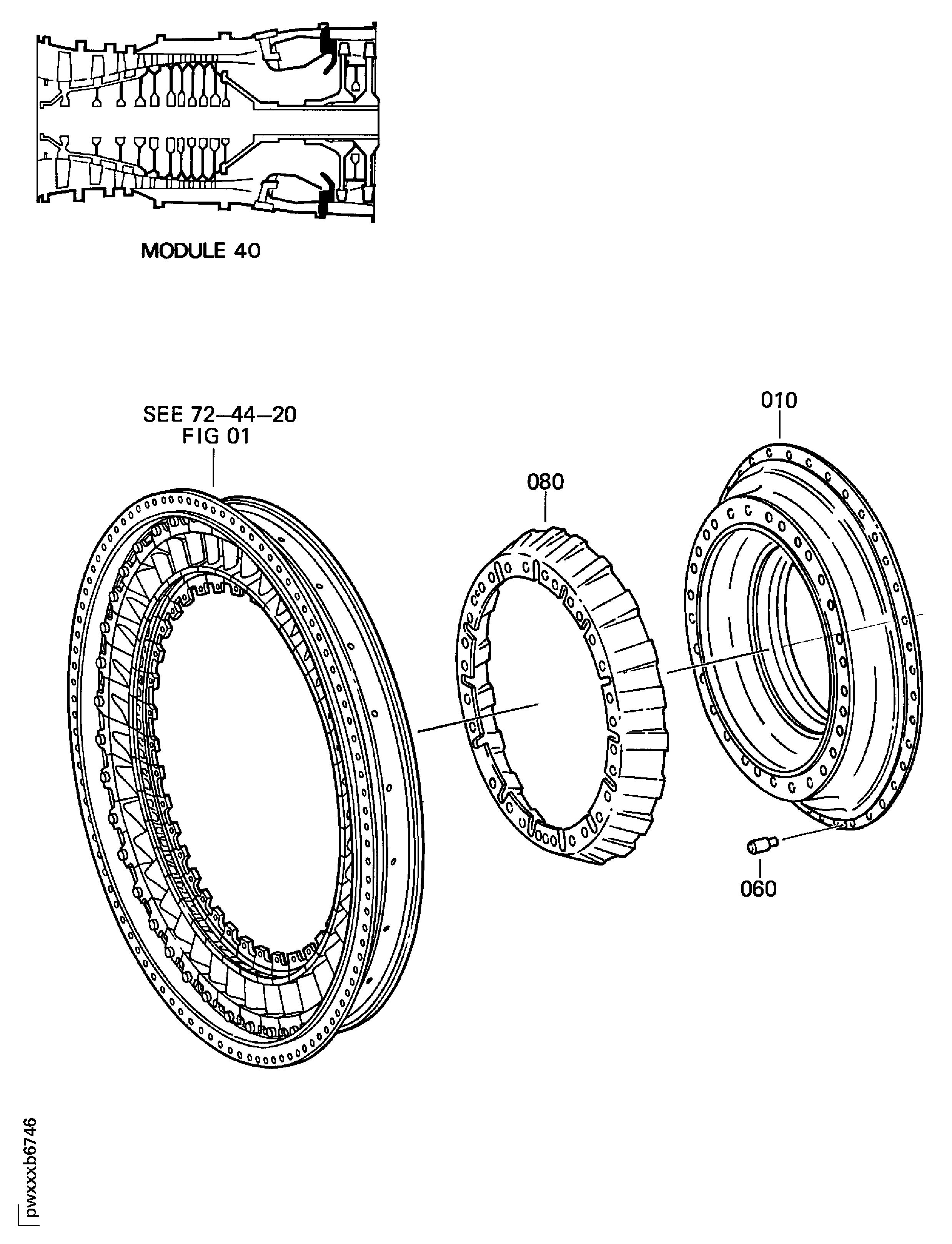

Figure: HPT Stage 1 Cooling (TOBI) Duct And Duct Deflector
