DMC:V2500-A5-72-44-60-01A-941A-DIssue No:002.00Issue Date:2017-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72446001 | ENGINE-STAGE 1 HPT SEGMENT, PRE SBE72-0241 | aa | |
| - | SBE0241-01 | ENGINE-STAGE 1 HPT SEGMENT, PRE SBE72-0432 | ab | |
| - | SBE0432-01 | ENGINE-STAGE 1 HPT SEGMENT | ac | |
| 010 | 2A2364 | • DUCT, SEGMENT PRE SBE72-0241 | aa/04 | 20 |
| 010A | 2A3181 | • DUCT, SEGMENT POST SBE72-0241 PRE SBE72-0432 | ab/04 | 20 |
| 010B | 2A3181 | • DUCT, SEGMENT | aa-ac/02 | 20 |
| 010C | 2A3568 | • DUCT, SEGMENT POST SBE72-0432 | ab-ac/03 | 20 |
| 020 | 2A2365 | • STOP, HPT DUCT, STAGE 1 | aa-ac/03 | 20 |
| 040 | 2A2474 | • BOLT, MACHINE, HEX, 0.250 - 28 X 1.010 | aa-ac/03 | 40 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

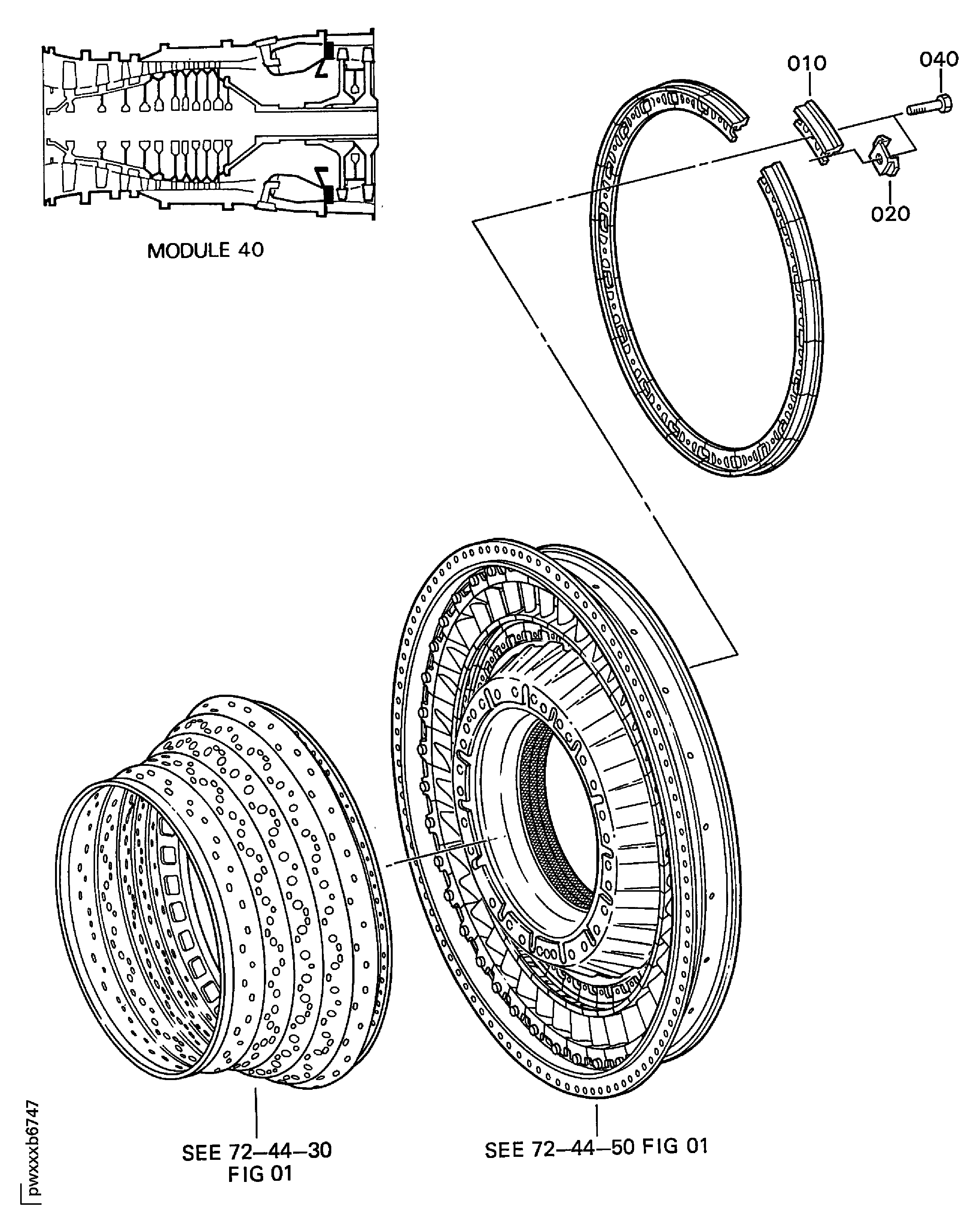

Figure: ENGINE-STAGE 1 HPT SEGMENT
ENGINE-STAGE 1 HPT SEGMENT
