V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72451001 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0146 | aa | |
| - | SBE0146-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0180 | ab | |
| - | SBE0180-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0190 | ac | |
| - | SBE0190-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0194 | ad | |
| - | SBE0194-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0238 | ae | |
| - | SBE0238-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0240 | af | |
| - | SBE0240-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0242 | ag | |
| - | SBE0242-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0302 | ah | |
| - | SBE0302-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0327 | ai | |
| - | SBE0327-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0357 | aj | |
| - | SBE0357-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0361 | ak | |
| - | SBE0361-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0451 | al | |
| - | SBE0451-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0475 | am | |
| - | SBE0475-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY, PRE SBE72-0511 | an | |
| - | SBE0511-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY , PRE SBE72-0562 | ao | |
| - | SBE0562-01 | ENGINE-STAGE 1 TURBINE ROTOR ASSEMBLY | ap | |
| 010 | 2A8421 | • TURBINE, ROTOR, A/O, 1STG A/O 1STG POST SBE72-0146 PRE SBE72-0190 | ab-ac/01 | 1 |
| 010A | 2A8421 | • TURBINE, ROTOR, A/O, 1STG A/O 1STG PRE SBE72-0190 | aa-ab/01 | 1 |
| 010B | 2A8721 | • TURBINE, ROTOR, A/O, 1STG POST SBE72-0180 PRE SBE72-0190 | ac/01 | 1 |
| 010C | 2A8421-001 | • TURBINE, ROTOR 77445 POST SBE72-0190 PRE SBE72-0242 | ad-ag/01 | 1 |
| 010D | 2A8821 | • TURBINE, ROTOR POST SBE72-0190 PRE SBE72-0240 | ad-af/01 | 1 |
| 010E | 2A8921 | • TURBINE, ROTOR, A/O, 1STG 1STG POST SBE72-0194 PRE SBE72-0238 | ae/01 | 1 |
| 010F | 2A3301 | • TURBINE, ROTOR ASSY OF, 1STG POST SBE72-0238 PRE SBE72-0240 | af/01 | 1 |
| 010G | 2A3401 | • TURBINE, ROTOR POST SBE72-0240 PRE SBE72-0242 | ag/01 | 1 |
| 010H | 2A8721-001 | • TURBINE, ROTOR 77445 POST SBE72-0240 PRE SBE72-0242 | ag/01 | 1 |
| 010I | 2A8421-002 | • TURBINE, ROTOR 77445 POST SBE72-0240 PRE SBE72-0242 | ag/01 | 1 |
| 010J | 2A8821-001 | • TURBINE, ROTOR 77445 POST SBE72-0240 PRE SBE72-0242 | ag/01 | 1 |
| 010K | 2A8921-001 | • TURBINE, ROTOR 77445 POST SBE72-0240 PRE SBE72-0242 | ag/01 | 1 |
| 010L | 2A8421-003 | • TURBINE, ROTOR 77445 POST SBE72-0242 | ah-ap/01 | 1 |
| 010M | 2A8821-002 | • TURBINE, ROTOR 77445 POST SBE72-0242 | ah-ap/01 | 1 |
| 010N | 2A8921-002 | • TURBINE, ROTOR 77445 POST SBE72-0242 | ah-ap/01 | 1 |
| 010O | 2A8721-002 | • TURBINE, ROTOR 77445 POST SBE72-0242 | ah-ap/01 | 1 |
| 010P | 2A8421-004 | • TURBINE, ROTOR 77445 POST SBE72-0242 | ah-ap/01 | 1 |
| 010Q | 2A8721-003 | • TURBINE, ROTOR 77445 POST SBE72-0242 | ah-ap/01 | 1 |
| 010R | 2A8921-003 | • TURBINE, ROTOR 77445 POST SBE72-0242 | ah-ap/01 | 1 |
| 010S | 2A8821-003 | • TURBINE, ROTOR 77445 POST SBE72-0242 PRE SBE72-0451 | ah-al/01 | 1 |
| 010T | 2A9021 | • TURBINE, ROTOR, 1ST, ASSY OF POST SBE72-0242 PRE SBE72-0302 | ah/01 | 1 |
| 010U | 2A9021 | • TURBINE, ROTOR, 1ST, ASSY OF POST SBE72-0327 PRE SBE72-0357 | aj/02 | 1 |
| 010V | 2A9021 | • TURBINE, ROTOR, 1ST, ASSY OF PRE SBE72-0302 | aa-ah/03 | 1 |
| 010W | 2A9021 | • TURBINE, ROTOR, 1ST, ASSY OF POST SBE72-0302 PRE SBE72-0327 | ai/03 | 1 |
| 010X | 2A9031 | • TURBINE, ROTOR ASSY OF, 1STG ALT 2A9031-002 POST SBE72-0357 PRE SBE72-0361 | ak/03 | 1 |
| 010Y | 2A9031-001 | • TURBINE, ROTOR ASSY OF 1STG 77445 ALT 2A9031-003 POST SBE72-0357 PRE SBE72-0357 | *****/01 | 1 |
| 010Z | 2A9031-003 | • TURBINE, ROTOR ASSY OF 1STG 77445 ALT 2A9031-004 POST SBE72-0357 PRE SBE72-0357 | *****/01 | 1 |
| 010AA | 2A9031-004 | • TURBINE, ROTOR ASSY OF 1STG 77445 ALT 2A9031-005 POST SBE72-0357 PRE SBE72-0357 | *****/01 | 1 |
| 010AB | 2A9031-005 | • TURBINE, ROTOR ASSY OF 1STG 77445 ALT 2A9031-006 POST SBE72-0357 PRE SBE72-0357 | *****/01 | 1 |
| 010AC | 2A9031-006 | • TURBINE, ROTOR ASSY OF 1STG 77445 ALT 2A9031-002 POST SBE72-0357 PRE SBE72-0357 | *****/01 | 1 |
| 010AD | 2A9031-002 | • TURBINE, ROTOR ASSY OF 1STG 77445 ALT 2A9031-008 POST SBE72-0357 PRE SBE72-0357 | *****/03 | 1 |
| 010AE | 2A9041 | • TURBINE, ROTOR ASSY OF, 1 STG POST SBE72-0361 PRE SBE72-0451 | al/03 | 1 |
| 010AF | 2A9031-007 | • TURBINE, ROTOR ASSY OF 1STG 77445 ALT 2A9031-008 POST SBE72-0357 PRE SBE72-0357 | *****/01 | 1 |
| 010AG | 2A9031-008 | • TURBINE, ROTOR ASSY OF 1STG 77445 ALT 2A9031-009 POST SBE72-0357 PRE SBE72-0357 | *****/01 | 1 |
| 010AH | 2A9031-009 | • TURBINE, ROTOR ASSY OF 1STG 77445 ALT 2A9031 POST SBE72-0357 PRE SBE72-0357 | *****/03 | 1 |
| 010AI | 2A9521-002 | • TURBINE, ROTOR 77445 POST SBE72-0451 PRE SBE72-0511 | am-an/01 | 1 |
| 010AJ | 2A9031-010 | • TURBINE, ROTOR ASSY OF 1STG 77445 POST SBE72-0451 PRE SBE72-0475 | am/03 | 1 |
| 010AK | 2A9521-001 | • TURBINE, ROTOR 77445 POST SBE72-0451 PRE SBE72-0475 | am/03 | 1 |
| 010AL | 2A9521 | • TURBINE, ROTOR ASSY OF, 1STG POST SBE72-0451 PRE SBE72-0475 | am/03 | 1 |
| 010AM | 2A9621-001 | • TURBINE, ROTOR ASSY OF 1STG 77445 POST SBE72-0475 PRE SBE72-0511 | an/03 | 1 |
| 010AN | 2A9621-002 | • TURBINE, ROTOR ASSY OF 1STG 77445 POST SBE72-0475 PRE SBE72-0511 | *****/01 | 1 |
| 010AO | 2A9621 | • TURBINE, ROTOR ASSY OF 1STG POST SBE72-0475 PRE SBE72-0511 | an/03 | 1 |
| 010AP | 2A9031-011 | • TURBINE, ROTOR ASSY OF, 1STG 77445 POST SBE72-0511 PRE SBE72-0562 | ao/03 | 1 |
| 010AQ | 2A9521-004 | • TURBINE, ROTOR 77445 POST SBE72-0511 PRE SBE72-0562 | ao/03 | 1 |
| 010AR | 2A9521-005 | • TURBINE, ROTOR 77445 POST SBE72-0511 PRE SBE72-0562 | ao/01 | 1 |
| 010AS | 2A9521-006 | • TURBINE, ROTOR 77445 POST SBE72-0511 PRE SBE72-0562 | ao/01 | 1 |
| 010AT | 2A9621-003 | • TURBINE, ROTOR ASSY OF 1STG 77445 POST SBE72-0511 PRE SBE72-0562 | ao/03 | 1 |
| 010AU | 2A9621-004 | • TURBINE, ROTOR ASSY OF 1STG 77445 POST SBE72-0511 PRE SBE72-0562 | ao/03 | 1 |
| 010AV | 2A9621-005 | • TURBINE, ROTOR ASSY OF 1STG 77445 POST SBE72-0511 PRE SBE72-0562 | ao/01 | 1 |
| 010AW | 2A9421 | • TURBINE, ROTOR ASSY OF, 1STG 77445 POST SBE72-0511 PRE SBE72-0562 | ao/03 | 1 |
| 010AX | 2A9921 | • TURBINE, ROTOR HPT STG 1 POST SBE72-0562 | ap/04 | 1 |
| 010AY | 2A9921-001 | • ROTOR, HPT STG 1 POST SBE72-0562 | ap/04 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

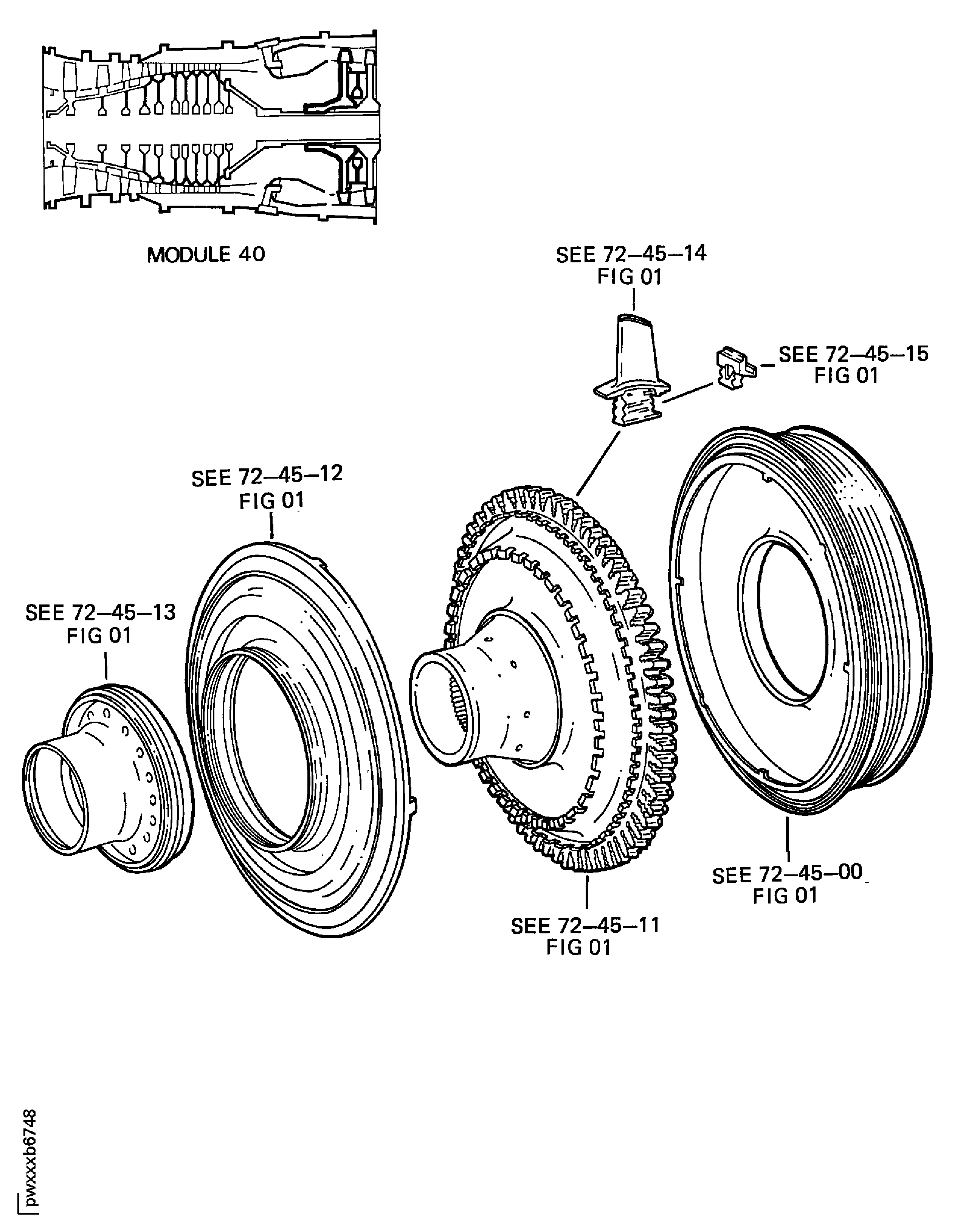

Figure: HPT Stage 1 Rotor Assembly
HPT Stage 1 Rotor Assembly
