HPT Stage 1 Hub

DMC:V2500-A5-72-45-11-01A-941A-D|Issue No:003.00|Issue Date:2021-02-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
-000B72451101ENGINE - STAGE 1 TURBINE HUB, PRE SBE72-0238
-000SBE0238-01ENGINE - STAGE 1 TURBINE HUB, PRE SBE72-0327
77445
-000SBE0327-01ENGINE - STAGE 1 TURBINE HUB, PRE SBE72-0562
77445
-000SBE0562-01ENGINE - STAGE 1 TURBINE HUB, PRE SBE72-0240
77445
-000SBE0240-01ENGINE - STAGE 1 TURBINE HUB, PRE SBE72-0451
77445
-000SBE0451-01ENGINE - STAGE 1 TURBINE HUB
77445
0110112A2201• TURBINE- HUB, STAGE 1
77445
PRE SBE72-0238
aa/011
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
011011A2A2801• TURBINE- HUB, STAGE 1
77445
POST SBE72-0238
PRE SBE72-0327
ab/021
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
011011B2A2801• TURBINE- HUB, STAGE 1
77445
POST SBE72-0562
ad-ae/031
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
011011C2A5001• TURBINE- HUB, STAGE 1
77445
POST SBE72-0327
REF SBE72-0713
ac/041
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
011011D2A5001• TURBINE- HUB, STAGE 1
77445
POST SBE72-0562
REF SBE72-0713
ad/051
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
0400402A2354• METERING PLUG,HPT HUB,1STG
77445
PRE SBE72-0240
aa-ad/0624
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
040040A2A3182• METERING PLUG,HPT HUB,1STG
77445
POST SBE72-0240
PRE SBE72-0451
ae/0724
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
040040B2A3182• METERING PLUG,HPT HUB,1STG
77445
PRE SBE72-0451
af/0824
V2533 AQ02, V2533 AQ03
040040C2A3847• METERING PLUG,HPT HUB,1STG
77445
POST SBE72-0451
PRE SBE72-0511
af/0924
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

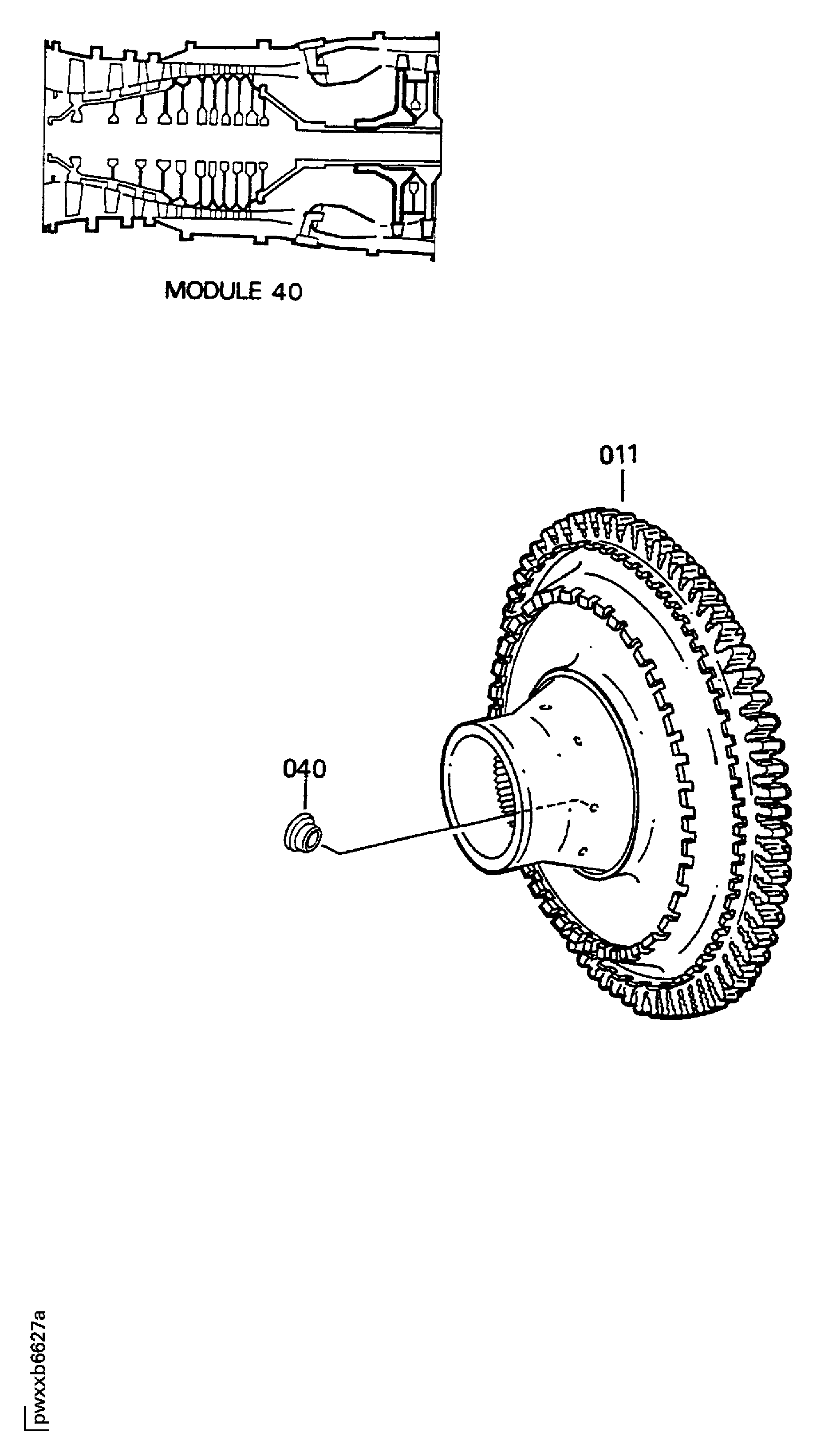

Figure: HPT Stage 1 Hub

HPT Stage 1 Hub

Change Type:

Incorporated Non-Mod SBE 72-0713

Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Part Number:2A2201
Part Name:TURBINE- HUB, STAGE 1
Manufacturer Code:77445
Part Number:2A2354
Part Name:METERING PLUG,HPT HUB,1STG
Manufacturer Code:77445
Part Number:2A2801
Part Name:TURBINE- HUB, STAGE 1
Manufacturer Code:77445
Part Number:2A3182
Part Name:METERING PLUG,HPT HUB,1STG
Manufacturer Code:77445
Part Number:2A3847
Part Name:METERING PLUG,HPT HUB,1STG
Manufacturer Code:77445
Part Number:2A5001
Part Name:TURBINE- HUB, STAGE 1
Manufacturer Code:77445
