DMC:V2500-A5-72-45-12-01A-941A-DIssue No:002.00Issue Date:2017-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72451201 | ENGINE-STAGE 1 HPT AIR SEAL (OUTER), PRE SBE72-0327 | aa | ||
| SBE0327-01 | ENGINE-STAGE 1 HPT AIR SEAL (OUTER), PRE SBE72-0363 | ab | ||
| SBE0363-01 | ENGINE-STAGE 1 HPT AIR SEAL (OUTER) | ac | ||
| 010 | 2A0044 | • SEAL - HPT, 1&2 STG PRE SBE72-0363 | aa-ac | 1 |
| 010A | 50L294 | • SEAL - HPT, 1 & 2 STAGE 77445 POST SBE72-0363 | aa-ac | 1 |
| 020 | 2A0167 | • DAMPER - HPT, 1STG | aa-ac | 1 |
| 040 | 2A1350 | • SEAL - AIR HPT,1STG PRE SBE72-0327 | aa-ac | 1 |
| 040A | 2A3423 | • SEAL - AIR,HPT,1STG POST SBE72-0327 REF SBE72-0678 REF SBE72-0677 | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

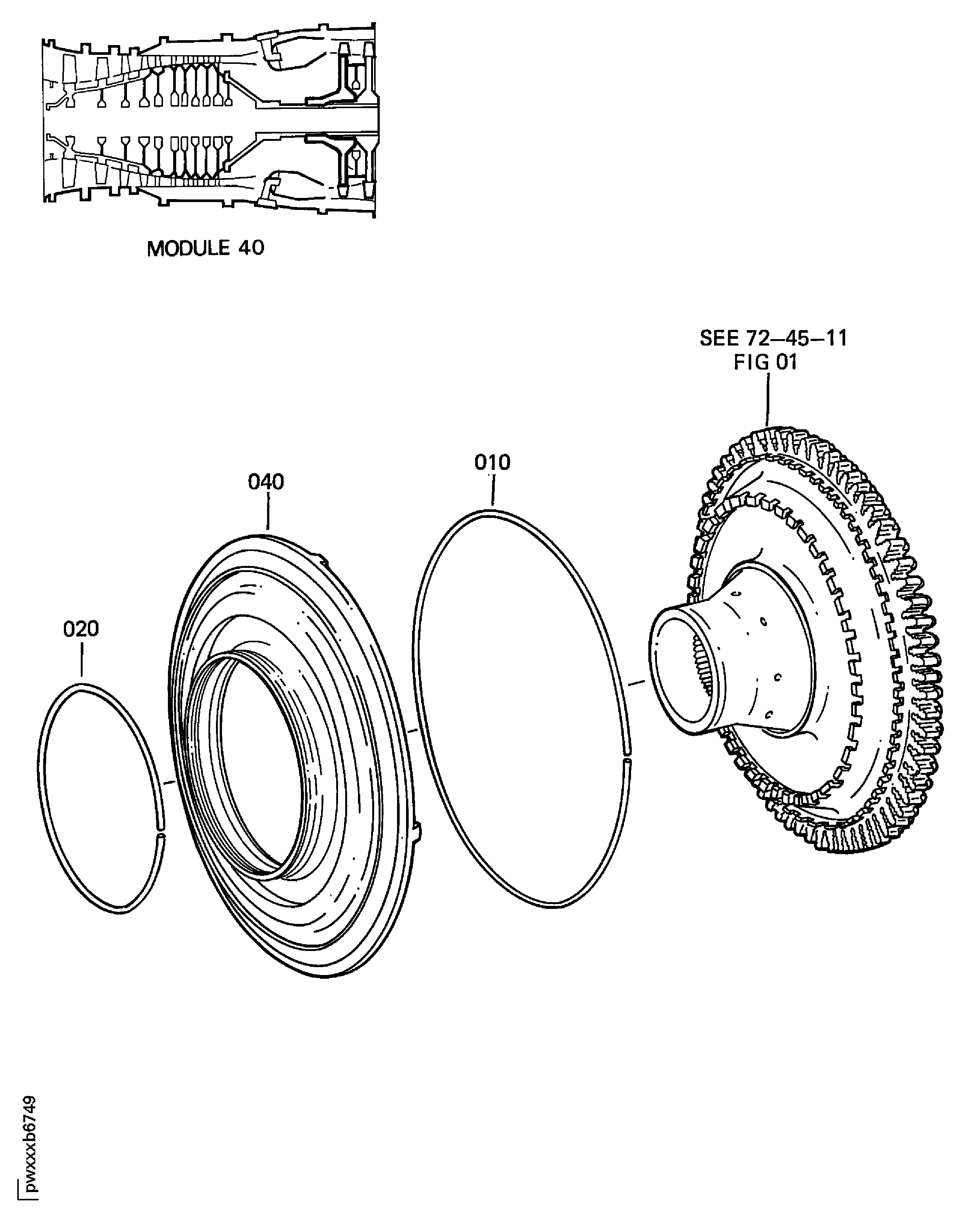

Figure: ENGINE-STAGE 1 HPT AIR SEAL (OUTER)
STAGE 1 HPT AIR SEAL (OUTER)
