| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72451301 | ENGINE-STAGE 1 HPT AIR SEAL (INNER), PRE SBE72-0180 | aa | |
| - | SBE0180-01 | ENGINE-STAGE 1 HPT AIR SEAL (INNER), PRE SBE72-0190 | ab | |
| - | SBE0190-01 | ENGINE-STAGE 1 HPT AIR SEAL (INNER), PRE SBE72-0194 | ac | |
| - | SBE0194-01 | ENGINE-STAGE 1 HPT AIR SEAL (INNER), PRE SBE72-0327 | ad | |
| - | SBE0327-01 | ENGINE-STAGE 1 HPT AIR SEAL (INNER), PRE SBE72-0511 | ae | |
| - | SBE0511-01 | ENGINE-STAGE 1 HPT AIR SEAL (INNER) | af | |
| 010 | 2A0491 | • DAMPER, HPT STAGE 1 | aa-af/01 | 1 |
| 010A | 2A0491 | • DAMPER, HPT STAGE 1 | aa-af/02 | 1 |
| 020 | 2A1352 | • SEAL, AIR, HPT, STAGE 1 PRE SBE72-0180 | aa/03 | 1 |
| 020A | 2A3032 | • SEAL, AIR, HPT, STAGE 1 POST SBE72-0180 PRE SBE72-0190 | ab/03 | 1 |
| 020B | 2A3069 | • SEAL, AIR POST SBE72-0190 | ac-af/03 | 1 |
| 020C | 2A3086 | • SEAL, AIR, HPT, STAGE 1 POST SBE72-0194 PRE SBE72-0327 | ad/03 | 1 |
| 020D | 2A3086 | • SEAL, AIR, HPT, STAGE 1 PRE SBE72-0327 | aa-ae/04 | 1 |
| 020E | 2A3424 | • SEAL, AIR, HPT, STAGE 1 POST SBE72-0327 PRE SBE72-0511 | ae/06 | 1 |
| 020F | 2A3923 | • SEAL, AIR, HPT, STAGE 1 77445 POST SBE72-0511 | af/05 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

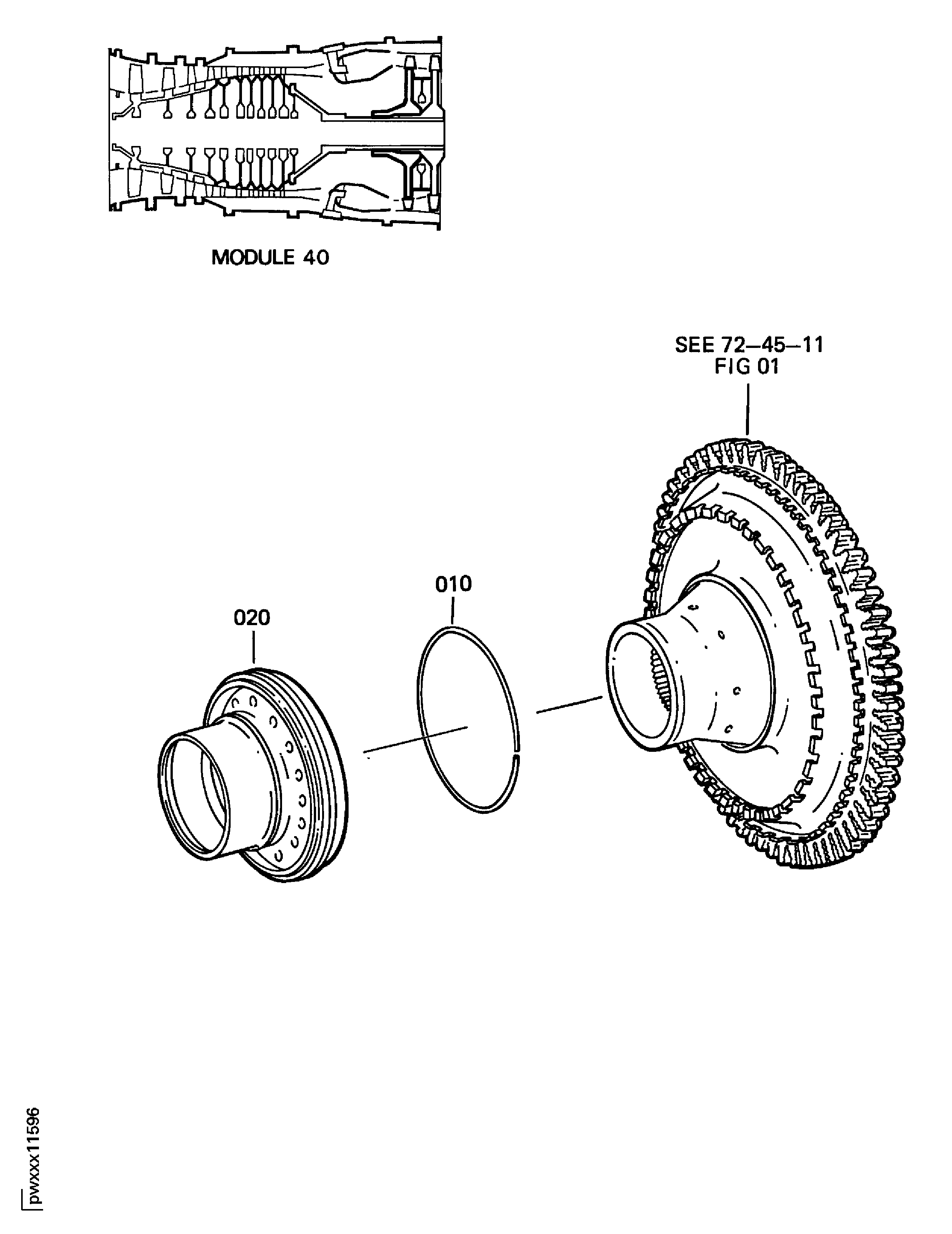

Figure: HPT Stage 1 Rotating Inner Air Seal And Damper
HPT Stage 1 Rotating Inner Air Seal And Damper
