HPT Stage 1 Blade And Related Parts

DMC:V2500-A5-72-45-14-01A-941A-D|Issue No:004.00|Issue Date:2018-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A5

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
-000B72451401ENGINE - STAGE 1 HPT BLADE, ASSEMBLY, PRE SBE72-0146
aa
-000SBE0146-01ENGINE - STAGE 1 HPT BLADE, ASSEMBLY, PRE SBE70-0379
ab
-000SBE0379-01ENGINE - STAGE 1 HPT BLADE, ASSEMBLY, PRE SBE72-0220
ac
-000SBE0220-01ENGINE - STAGE 1 HPT BLADE, ASSEMBLY, PRE SBE72-0242
ad
-000SBE0242-01ENGINE - STAGE 1 HPT BLADE, ASSEMBLY, PRE SBE72-0302
ae
-000SBE0302-01ENGINE - STAGE 1 HPT BLADE, ASSEMBLY, PRE SBE72-0357
af
-000SBE0357-01ENGINE - STAGE 1 HPT BLADE, ASSEMBLY, PRE SBE72-0363
ag
-000SBE0363-01ENGINE - STAGE 1 HPT BLADE, ASSEMBLY, PRE SBE72-0361 AND PRE SBE72-0562
ah
-000SBE0361-01ENGINE - STAGE 1 HPT BLADE, ASSEMBLY, PRE SBE72-0475
ai
-000SBE0475-01ENGINE - STAGE 1 HPT BLADE ASSEMBLY
aj
-000SBE0562-01ENGINE - STAGE 1 HPT BLADE ASSEMBLY
ak
0100102A8321• BLADE - HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0146
PRE SBE72-0379
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010A2A8521• BLADE - HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0379
PRE SBE72-0220
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010B2A8701• BLADE - HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0220
PRE SBE72-0242
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010C2A8321-001• BLADE - HPT,1STG
77445
POST SBE72-0220
PRE SBE72-0302
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010D2A2621-001• BLADE - HPT,1STG
77445
POST SBE72-0220
PRE SBE72-0302
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010E2A8801• BLADE - HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0242
PRE SBE72-0302
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010F2A8521-001• BLADE - HPT,1STG
77445
POST SBE72-0242
PRE SBE72-0302
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010G2A8801• BLADE - HPT, 1ST STAGE, ASSEMBLY OF
PRE SBE72-0302
/0264
V2533 AQ02, V2533 AQ03
010010H2A2621-002• BLADE - HPT,1STAGE
77445
POST SBE72-0302
PRE SBE72-0357
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010I2A2621-003• BLADE - HPT,1STAGE
77445
POST SBE72-0302
PRE SBE72-0357
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010J2A8321-002• BLADE - HPT, 1 STAGE
77445
POST SBE72-0302
PRE SBE72-0357
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010K2A8321-003• BLADE, HPT, 1 STAGE
77445
POST SBE72-0302
PRE SBE72-0357
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010L2A8521-002• BLADE - HPT, 1 STAGE
77445
POST SBE72-0302
PRE SBE72-0357
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010M2A8521-003• BLADE - HPT, 1 STAGE
77445
POST SBE72-0302
PRE SBE72-0357
/0364
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010N2A9001• BLADE - HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0302
PRE SBE72-0357
/0364
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010O2A9101• BLADE - HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0357
PRE SBE72-0361
/0364
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010P2A8701-001• BLADE - HPT, 1 STAGE
77445
POST SBE72-0302
PRE SBE72-0357
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010Q2A2621-004• BLADE, HPT, 1 STAGE
77445
POST SBE72-0357
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010R2A8321-004• BLADE, HPT, 1 STG
77445
POST SBE72-0357
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010S2A8521-004• BLADE, HPT, 1 STAGE
77445
POST SBE72-0357
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010T2A8521-005• BLADE, HPT, 1 STG
77445
POST SBE72-0357
PRE SBE72-0357
/0364
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010U2A8521-005• BLADE, HPT, 1 STG
77445
POST SBE72-0357
/0364
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010V2A9201• BLADE - HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0361
PRE SBE72-0475
/0364
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010W2A8701-002• BLADE, HPT, 1 STAGE
77445
POST SBE72-0357
PRE SBE72-0475
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
010010X2A9321• BLADE - HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0475
PRE SBE72-0562
/0364
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
010010Y2A9721• BLADE - HPT, 1ST STAGE, ASSEMBLY OF
POST SBE72-0562
/0864
V2527/V2527E SQ02, V2530 SQ02, V2533 SQ02, V2522/V2524/V2527M SQ02, V2527/V2527E SQ03, V2530 SQ03, V2533 SQ03, V2522/V2524/V2527M SQ03, V2527/V2527E SQ04, V2530 SQ04, V2533 SQ04, V2522/V2524/V2527M SQ04, V2527/V2527E SQ05, V2530 SQ05, V2533 SQ05, V2522/V2524/V2527M SQ05
0200202A2523• DAMPER - HPT, 1ST STAGE
/0564
V2522/V2524/V2527M AQ02, V2527/V2527E AQ02, V2530 AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ03, V2530 AQ03, V2522/V2524/V2527M SQ02, V2527/V2527E SQ02, V2530 SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ03, V2530 SQ03, V2522/V2524/V2527M SQ04, V2527/V2527E SQ04, V2530 SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ05, V2530 SQ05
020020A2A2523• DAMPER - HPT, 1ST STAGE
/0664
V2533 AQ02, V2533 AQ03, V2533 SQ02, V2533 SQ03, V2533 SQ04, V2533 SQ05
0400402A0530• SEAL - HPT, 1ST STAGE
PRE SBE72-0242
/0164
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, v2530 AQ03
0600602A0140• SEAL - HPT, 1ST STAGE
PRE SBE72-0363
/031
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03
060060A50L294• SEAL - AIR, HPT 1ST AND 2ND STAGE
PRE SBE72-0363
/071
V2522/V2524/V2527M AQ02, V2522/V2524/V2527M AQ03, V2527/V2527E AQ02, V2527/V2527E AQ03, V2530 AQ02, V2530 AQ03, V2533 AQ02, V2533 AQ03, V2522/V2524/V2527M SQ02, V2522/V2524/V2527M SQ03, V2527/V2527E SQ02, V2527/V2527E SQ03, V2530 AS02, V2530 SQ03, V2533 SQ02, V2533 SQ03, V2522/V2524/V2527M SQ04, V2522/V2524/V2527M SQ05, V2527/V2527E SQ04, V2527/V2527E SQ05, V2530 SQ04, V2530 SQ05, V2533 SQ04, V2533 SQ05
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

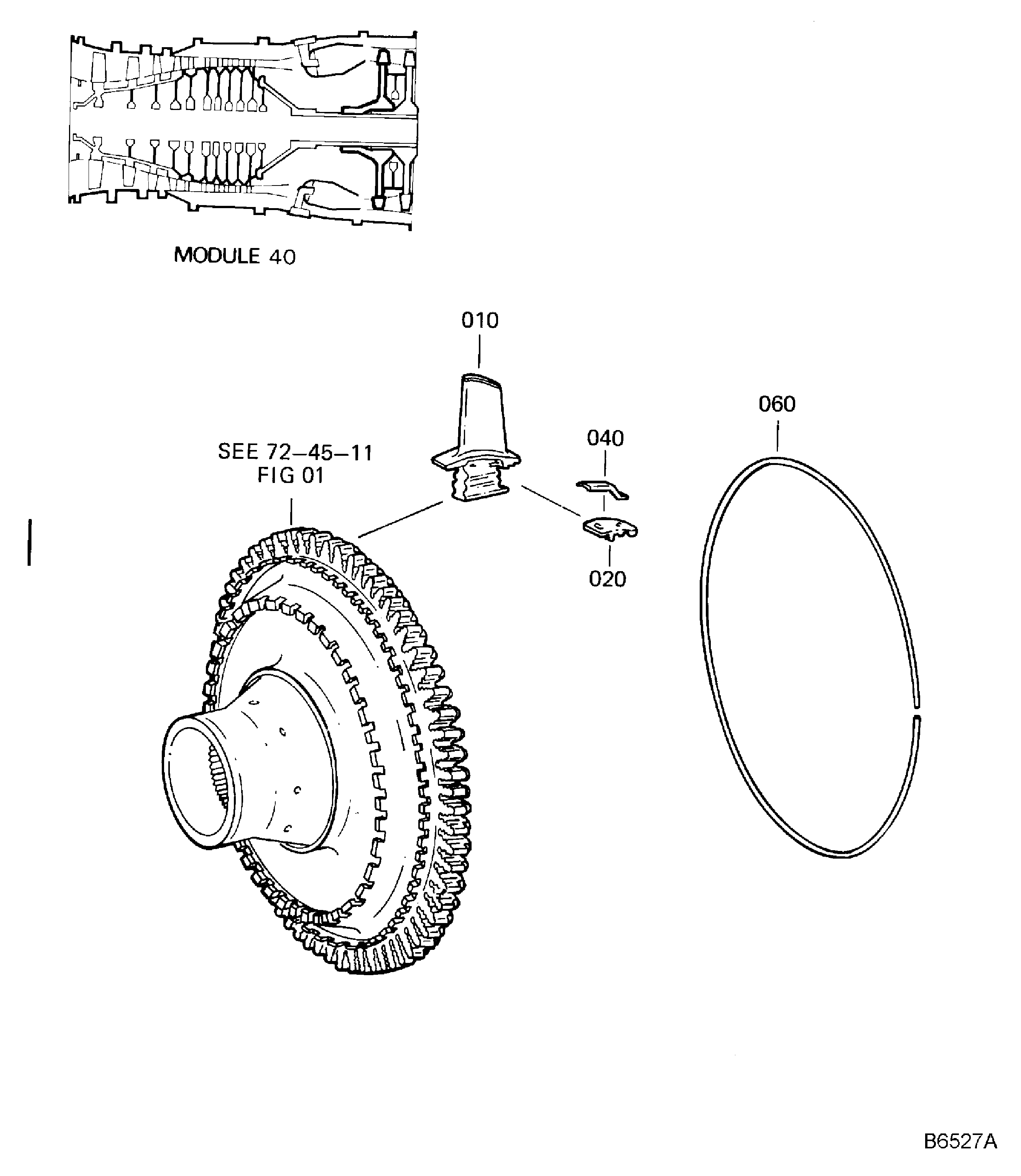

Figure: HPT Stage 1 Blade And Related Parts

HPT Stage 1 Blade And Related Parts

HPT Stage 1 Blade And Related Parts

Change Type:

Corrected Applicability.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:77445
Enterprise Name:PRATT AND WHITNEY
BU Name:PRATT & WHITNEY
Street:400 MAIN STREET
City:EAST HARTFORD
Country:USA
Phone Number:8605657700
Part Number:2A0140
Part Name:SEAL - HPT, 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A0530
Part Name:SEAL - HPT, 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A2523
Part Name:DAMPER - HPT, 1ST STAGE
Manufacturer Code:0AM53
Part Number:2A2621-001
Part Name:BLADE - HPT,1STG
Manufacturer Code:77445
Part Number:2A2621-002
Part Name:BLADE - HPT,1STAGE
Manufacturer Code:77445
Part Number:2A2621-003
Part Name:BLADE - HPT,1STAGE
Manufacturer Code:77445
Part Number:2A2621-004
Part Name:BLADE, HPT, 1 STAGE
Manufacturer Code:77445
Part Number:2A8321-001
Part Name:BLADE - HPT,1STG
Manufacturer Code:77445
Part Number:2A8321-002
Part Name:BLADE - HPT, 1 STAGE
Manufacturer Code:77445
Part Number:2A8321-003
Part Name:BLADE, HPT, 1 STAGE
Manufacturer Code:77445
Part Number:2A8321-004
Part Name:BLADE, HPT, 1 STG
Manufacturer Code:77445
Part Number:2A8321
Part Name:BLADE - HPT, 1ST STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A8521-001
Part Name:BLADE - HPT,1STG
Manufacturer Code:77445
Part Number:2A8521-002
Part Name:BLADE - HPT, 1 STAGE
Manufacturer Code:77445
Part Number:2A8521-003
Part Name:BLADE - HPT, 1 STAGE
Manufacturer Code:77445
Part Number:2A8521-004
Part Name:BLADE, HPT, 1 STAGE
Manufacturer Code:77445
Part Number:2A8521-005
Part Name:BLADE, HPT, 1 STG
Manufacturer Code:77445
Part Number:2A8521
Part Name:BLADE - HPT, 1ST STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A8701-001
Part Name:BLADE - HPT, 1 STAGE
Manufacturer Code:77445
Part Number:2A8701-002
Part Name:BLADE, HPT, 1 STAGE
Manufacturer Code:77445
Part Number:2A8701
Part Name:BLADE - HPT, 1ST STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A8801
Part Name:BLADE - HPT, 1ST STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A9001
Part Name:BLADE - HPT, 1ST STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A9101
Part Name:BLADE - HPT, 1ST STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A9201
Part Name:BLADE - HPT, 1ST STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A9321
Part Name:BLADE - HPT, 1ST STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:2A9721
Part Name:BLADE - HPT, 1ST STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:50L294
Part Name:SEAL - AIR, HPT 1ST AND 2ND STAGE
Manufacturer Code:0AM53
