V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72452001 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE70-0300 | aa | |
| - | SBE0300-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0236 | ab | |
| - | SBE0236-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0237 | ac | |
| - | SBE0237-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0310 | ad | |
| - | SBE0310-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0365 | ae | |
| - | SBE0365-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0364 | af | |
| - | SBE0364-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0368 | ag | |
| - | SBE0368-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0483 | ah | |
| - | SBE0483-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0522 | ai | |
| - | SBE0522-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0562 | aj | |
| - | SBE0562-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0631 | ak | |
| - | SBE0631-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY, PRE SBE72-0634 | al | |
| - | SBE0634-01 | ENGINE-HP TURBINE CASE AND VANE ASSEMBLY | am | |
| 005 | 2A1703 | • CASE, & VANE ASSY, TURB PRE SBE70-0300 | aa/01 | 1 |
| 005A | 2A1703 | • CASE, & VANE ASSY, TURB POST SBE70-0300 PRE SBE72-0236 | ab/01 | 1 |
| 005B | 2A3215 | • CASE, & VANE ASSY, HPT POST SBE72-0236 PRE SBE72-0237 | ac/01 | 1 |
| 005C | 2A3219 | • CASE, & VANE ASSY, TURB POST SBE72-0237 PRE SBE72-0310 | ad/01 | 1 |
| 005D | 2A3215-001 | • CASE, & VANE ASSY, HPT 77445 POST SBE72-0237 PRE SBE72-0310 PRE SBE72-0483 | aa-ah/01 | 1 |
| 005E | 2A3219 | • CASE, & VANE ASSY, TURB PRE SBE72-0310 PRE SBE72-0483 | aa-ah/02 | 1 |
| 005F | 2A3364 | • CASE, & VANE POST SBE72-0310 PRE SBE72-0365 PRE SBE72-0483 | aa-ah/03 | 1 |
| 005G | 2A3215-002 | • CASE, & VANE ASSY, HPT 77445 POST SBE72-0310 PRE SBE72-0483 | aa-ah/03 | 1 |
| 005H | 2A3469 | • CASE, & VANE ASSY, TURBINE POST SBE72-0365 PRE SBE72-0364 PRE SBE72-0483 | aa-ah/03 | 1 |
| 005I | 2A3416 | • CASE, & VANE ASSY, TURB POST SBE72-0364 PRE SBE72-0368 PRE SBE72-0483 | aa-ah/03 | 1 |
| 005J | 2A3475 | • CASE, & VANE ASSY POST SBE72-0368 PRE SBE72-0483 | ah/03 | 1 |
| 005K | 2A3215-003 | • CASE, & VANE ASSY, TURB 77445 POST SBE72-0365 PRE SBE72-0364 PRE SBE72-0483 | aa-ah/01 | 1 |
| 005L | 2A3215-004 | • CASE, & VANE ASSY, TURB 77445 POST SBE72-0364 PRE SBE72-0483 | ag-ah/01 | 1 |
| 005M | 2A3364-001 | • CASE, & VANE ASSY, TURB 77445 POST SBE72-0364 PRE SBE72-0483 | ag-ah/03 | 1 |
| 005N | 2A3215-005 | • CASE, & VANE ASSY, TURB 77445 POST SBE72-0364 PRE SBE72-0483 | ag-ah/01 | 1 |
| 005O | 2A3916 | • CASE, & VANE ASSY, TURBINE POST SBE72-0483 PRE SBE72-0522 | ai/03 | 1 |
| 005P | 2A3364-005 | • CASE, & VANE ASSY, TURBINE 77445 POST SBE72-0483 PRE SBE72-0522 | ai/03 | 1 |
| 005Q | 2A3364-004 | • CASE, & VANE ASSY, TURBINE 77445 POST SBE72-0483 PRE SBE72-0522 | ai/03 | 1 |
| 005R | 2A3469-002 | • CASE, & VANE ASSY, TURBINE 77445 POST SBE72-0483 PRE SBE72-0522 | ai/03 | 1 |
| 005S | 2A3416-002 | • CASE, & VANE ASSY, TURBINE 77445 POST SBE72-0483 PRE SBE72-0522 | ai/03 | 1 |
| 005T | 2A3215-012 | • CASE, & VANE ASSY, HPT 77445 POST SBE72-0483 PRE SBE72-0522 | ai/03 | 1 |
| 005U | 2A3215-013 | • CASE, & VANE ASSY, TURB 77445 POST SBE72-0483 PRE SBE72-0522 | ai/03 | 1 |
| 005V | 2A3215-014 | • CASE, & VANE ASSY, TURB 77445 POST SBE72-0483 PRE SBE72-0522 | ai/03 | 1 |
| 005W | 2A3215-015 | • CASE, & VANE ASSY, TURB 77445 POST SBE72-0483 PRE SBE72-0522 | ai/03 | 1 |
| 005X | 2A3215-011 | • CASE, & VANE ASSY, HPT 77445 POST SBE72-0483 PRE SBE72-0522 | ai/03 | 1 |
| 005Y | 2A3219-002 | • CASE, & VANE ASSY, TURBINE 77445 POST SBE72-0483 PRE SBE72-0522 | ai/03 | 1 |
| 005Z | 2A3469-003 | • CASE, & VANE ASSY, TURBINE 77445 POST SBE72-0522 PRE SBE72-0562 | aj/03 | 1 |
| 005AA | 2A3475-002 | • CASE, & VANE ASSY, TURBINE 77445 POST SBE72-0522 PRE SBE72-0562 | aj/03 | 1 |
| 005AB | 2A3416-005 | • CASE, & VANE ASSY, TURBINE 77445 POST SBE72-0522 PRE SBE72-0562 | aj/03 | 1 |
| 005AC | 2A3219-003 | • CASE, & VANE ASSY, TURBINE 77445 POST SBE72-0522 PRE SBE72-0562 PRE SBE72-0634 | aj/03 | 1 |
| 005AD | 2A4050 | • CASE, 6 VANE ASSY TURB 77445 POST SBE72-0522 PRE SBE72-0562 PRE SBE72-0634 | aj/03 | 1 |
| 005AE | 2A4087 | • CASE, & VANE ASSY HPT STG 1 POST SBE72-0562 PRE SBE72-0631 | ak/04 | 1 |
| 005AF | 2A4087-001 | • CASE, & VANE ASSY HPT STG 1 POST SBE72-0562 PRE SBE72-0631 | ak/04 | 1 |
| 005AG | 2A3469-004 | • CASE, & VANE ASSY, TURBINE 77445 POST SBE72-0522 PRE SBE72-0562 PRE SBE72-0634 | aj/03 | 1 |
| 005AH | 2A4387 | • CASE, AND VANE ASSY 77445 POST SBE72-0631 PRE SBE72-0634 | al/04 | 1 |
| 005AI | 2A4087-002 | • CASE, AND VANE ASSY 77445 POST SBE72-0631 PRE SBE72-0634 | al/04 | 1 |
| 005AJ | 2A4370 | • CASE, AND VANE ASSY, TURB 77445 POST SBE72-0634 | am/04 | 1 |
| 005AK | 2A4390 | • CASE, AND VANE ASSY, TURB 77445 POST SBE72-0634 | am/03 | 1 |
| 005AL | 2A3469-005 | • CASE, AND VANE ASSY, TURB 77445 POST SBE72-0634 | am/03 | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

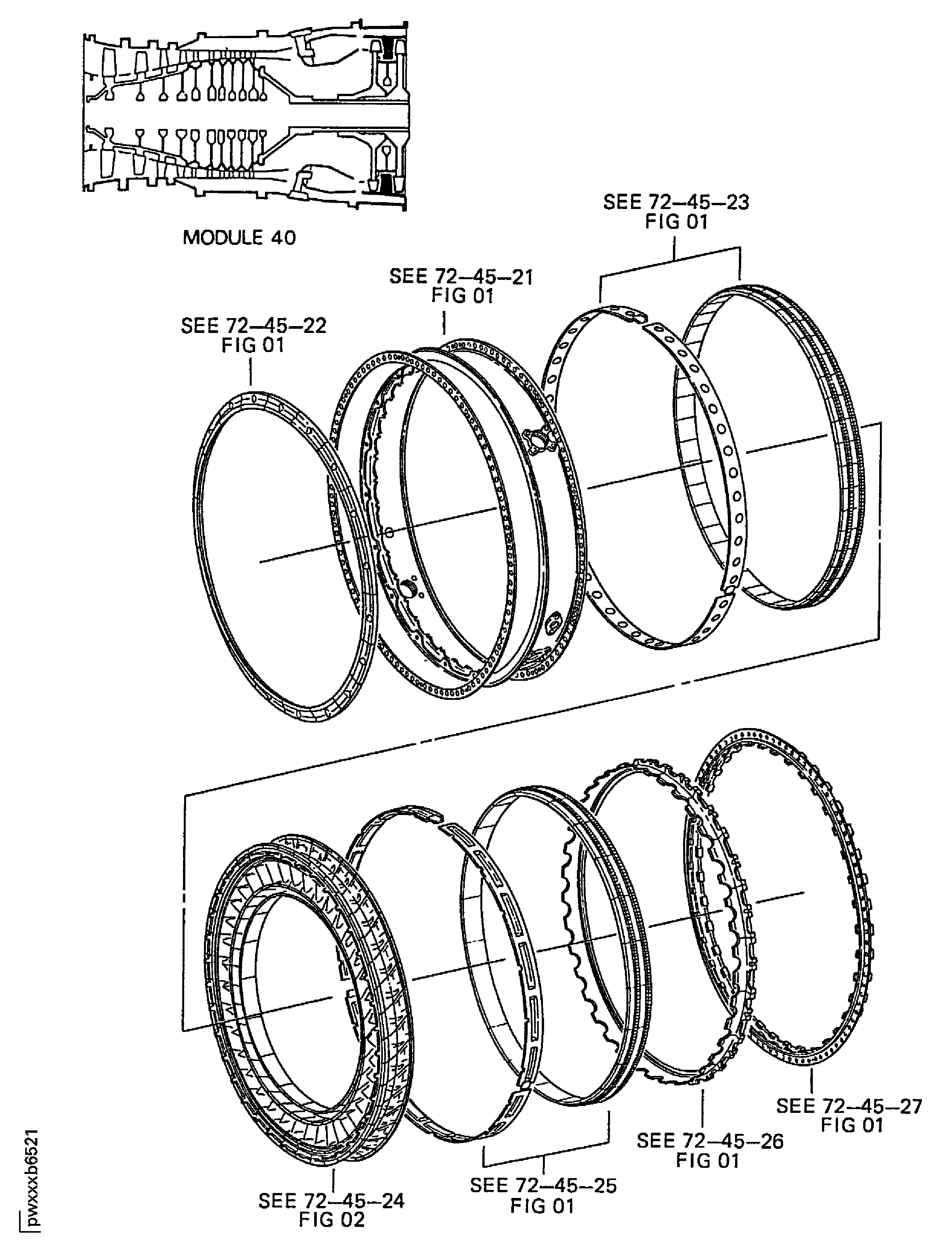

Figure: HPT Case And Vane Assembly
HPT Case And Vane Assembly
