| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| - | B72452201 | ENGINE-STAGE 1 HPT DUCT SUPPORT SET, PRE SBE72-0562 | aa | |
| - | SBE0562-01 | ENGINE-STAGE 1 HPT DUCT SUPPORT SET | ab | |
| 010 | 2A1706 | • SUPPORT, HPT STAGE 1 DUCT, ASSEMBLY PRE SBE72-0562 | aa/06 | 19 |
| 010A | 2A4130 | • SUPPORT, HPT STAGE 1 DUCT, ASSEMBLY POST SBE72-0562 | ab/02 | 19 |
| 060 | 2A1705 | • SEAL, HPT, STAGE 1, DUCT SUPPORT | aa/03 | 19 |
| 060A | 2A4129 | • SEAL, HPT, STAGE 1, DUCT SUPPORT POST SBE72–0562 | ab/04 | 19 |
| 100 | 2A1704 | • BOLT, MACHINE HEAD | aa-ab/05 | 19 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

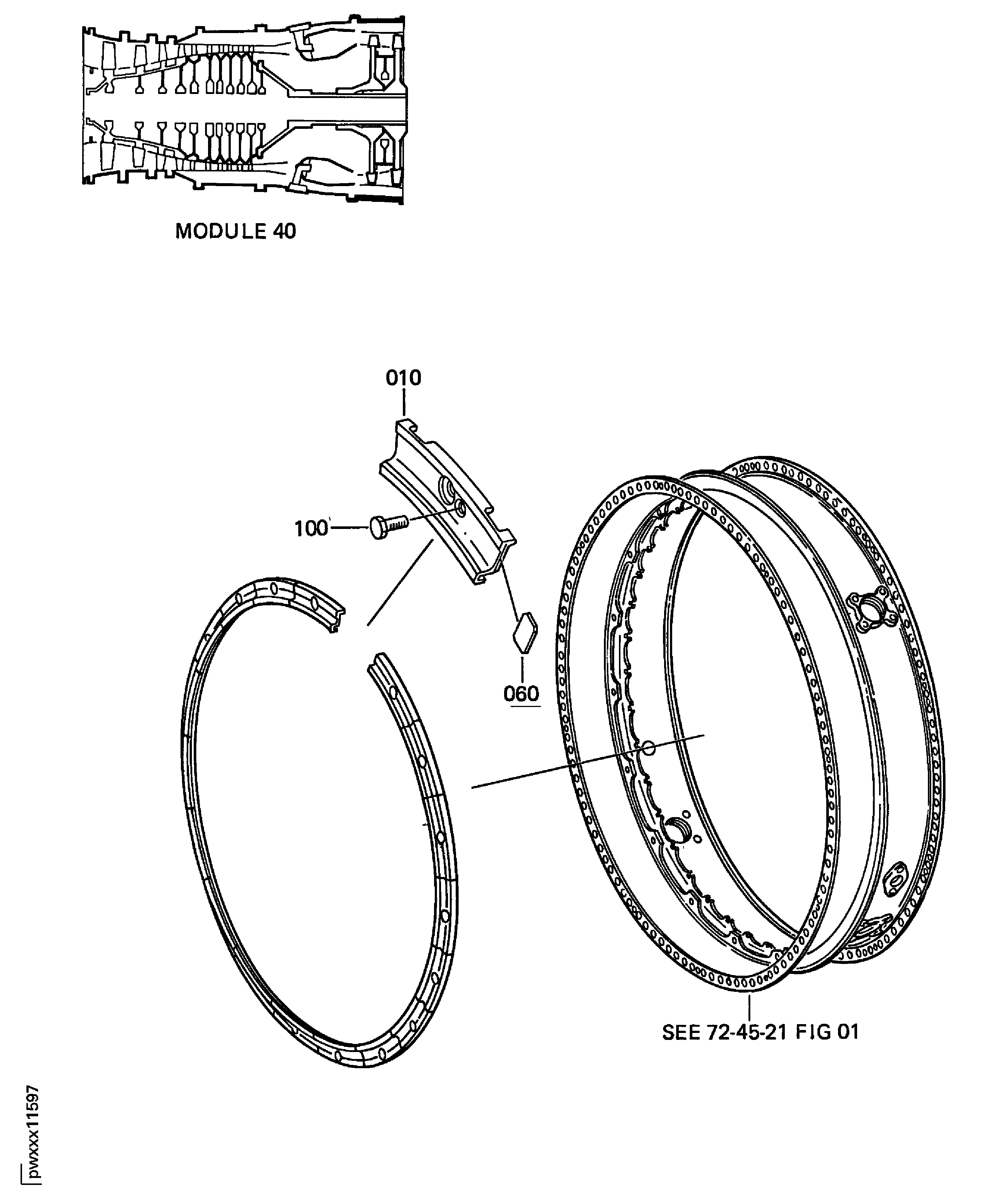

Figure: HPT Stage 1 Duct Support Segment
HPT Stage 1 Duct Support Segment
