DMC:V2500-A5-72-45-23-01A-941A-DIssue No:006.00Issue Date:2020-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA | |
|---|---|---|---|---|---|
| 01 | |||||
| - | B72452301 | ENGINE - STAGE 1 HPT DUCT SEGMENT, PRE SBE70-0300 | aa | ||
| - | SBE0300-01 | ENGINE - STAGE 1 HPT DUCT SEGMENT, PRE SBE70-0478 AND PRE SBE72-0562 | ab | ||
| - | SBE0478-01 | ENGINE - STAGE 1 HPT DUCT SEGMENT, PRE SBE70-0802 | ac | ||
| - | SBE0802-01 | ENGINE - STAGE 1 HPT DUCT SEGMENT, PRE SBE70-0823 | ad | ||
| - | SBE0823-01 | ENGINE - STAGE 1 HPT DUCT SEGMENT, PRE SBE70-0826 | ae | ||
| - | SBE0826-01 | ENGINE - STAGE 1 HPT DUCT SEGMENT, PRE SBE72-0483 | af | ||
| - | SBE0483-01 | ENGINE - STAGE 1 HPT DUCT SEGMENT | ag | ||
| - | SBE0562-01 | ENGINE - STAGE 1 HPT DUCT SEGMENT | ah | ||
| - | SBE0634-01 | ENGINE-STAGE 1 HPT DUCT SEGMENT | ai | ||
| 010 | 2A2371 | • GASKET OPTION ALT 2A2275 PRE SBE70-0478 | aa-ah/03 | 1 | |
| -010A | 2A2275 | • GASKET ALT 2A2108 PRE SBE70-0478 | aa-ah/03 | REF | |
| -010B | 2A2108 | • GASKET ALT 2A0984 PRE SBE70-0478 | aa-ah/03 | REF | |
| -010C | 2A0984 | • GASKET ALT 2A2371 | aa-ah/03 | REF | |
| 010D | X | 2A3155 | • GASKET ALT 2A2275 POST SBE70-0478 PRE SBE72-0562 | ac-ag/03 | 1 |
| -010E | X | 2A2275 | • GASKET ALT 2A3156 POST SBE70-0478 PRE SBE72-0562 | ac-ag/03 | REF |
| -010F | X | 2A3156 | • GASKET ALT 2A2371 POST SBE70-0478 PRE SBE72-0562 | ac-ag/03 | REF |
| 010G | X | 2A3155 | • GASKET ALT 2A2275 PRE SBE72-0562 | aa-ag/04 | 1 |
| -010H | X | 2A2275 | • GASKET ALT 2A3156 PRE SBE72-0562 | aa-ag/04 | REF |
| -010I | X | 2A3156 | • GASKET ALT 2A3155 PRE SBE72-0562 | aa-ah/04 | REF |
| 010J | X | 2A4136 | • GASKET POST SBE72-0562 | ah/07 | 1 |
| 020 | 2A1707 | • BAND SEGMENT - HPT, 1ST STAGE PRE SBE72-0562 | aa-ag/03 | 2 | |
| 020A | 2A1707 | • BAND SEGMENT - HPT, 1ST STAGE PRE SBE72-0562 | aa-ag/04 | 2 | |
| 020B | 2A4131 | • SEGMENT - BAND, HPT, 1ST STAGE POST SBE72-0562 | ah-ai/07 | 2 | |
| 040 | 2A1708 | • BAND SEGMENT - HPT, 1ST STAGE PRE SBE72-0562 | aa-ah/03 | 1 | |
| 040A | 2A1708 | • BAND SEGMENT - HPT, 1ST STAGE PRE SBE72-0562 | aa-ah/04 | 1 | |
| 040B | 2A4133 | • SEGMENT - BAND, HPT, 1ST STAGE POST SBE72-0562 | ah/07 | 1 | |
| 060 | 2A2063-01 | • DUCT SEGMENT - HPT, 1ST STAGE, ASSEMBLY OF PRE SBE70-0300 | aa/03 | 38 | |
| 060A | 2A3061-01 | • DUCT SEGMENT - HPT, 1ST STAGE, ASSEMBLY OF PRE SBE70-0823 | aa-ad/06 | 38 | |
| 060B | 2A3061-01 | • DUCT SEGMENT - HPT, 1ST STAGE, ASSEMBLY OF POST SBE70-0300 PRE SBE70-0823 PRE SBE72-0483 | aa-af/06 | 38 | |
| 060C | 2A3579-01 | • DUCT SEGMENT - HPT, 1ST STAGE, ASSEMBLY OF POST SBE70-0823 PRE SBE72-0483 | ae-af/06 | 38 | |
| 060D | 2A3886-01 | • DUCT SEGMENT - HPT, 1ST STAGE, ASSEMBLY OF POST SBE72-0483 PRE SBE72-0562 | ag/06 | 38 | |
| 060E | 2A4169 | • SEGMENT - DUCT, HPT, 1ST STAGE, ASSEMBLY OF POST SBE72-0562 PRE SBE72-0634 | ah/07 | 38 | |
| 060F | 2A4359 | • DUCT SEGMENT - HPT, 1ST STAGE POST SBE72-0634 | ai/07 | 38 | |
| 062 | 2A3061-02 | • • COVER - HPT DUCT SEGMENT POST SBE70-0802 PRE SBE72-0826 PRE SBE72-0483 | aa-af/06 | 1 | |
| 062A | 2A3561 | • • COVER - HPT DUCT SEGMENT POST SBE70-0826 PRE SBE72-0483 | af/06 | 1 | |
| 062B | X | 2A3888 | • • COVER - HPT DUCT SEGMENT POST SBE72-0483 PRE SBE72-0562 | ag/06 | 1 |
| 066 | 2A2346 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0300 | aa/03 | 1 | |
| 066A | 2A3062 | • • PIN - STRAIGHT, HEADLESS POST SBE70-0300 | ab-ah/03 | 1 | |
| 066B | 2A3062 | • • PIN - STRAIGHT, HEADLESS POST SBE70-0300 PRE SBE70-0823 | ab-ad/04 | 1 | |
| 066C | 2A3062 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0823 | aa-ad/06 | 1 | |
| 066D | X | 2A3062 | • • PIN - STRAIGHT, HEADLESS POST SBE72-0483 | aa-ag/06 | 1 |
| 068 | 2A2346CL1 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0300 | aa/03 | 1 | |
| 068A | 2A3062CL1 | • • PIN - STRAIGHT, HEADLESS POST SBE70-0300 PRE SBE70-0823 | ab-ad/03 | 1 | |
| 068B | 2A3062CL1 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0823 | aa-ad/04 | 1 | |
| 068C | X | 2A3062CL1 | • • PIN - STRAIGHT, HEADLESS POST SBE72-0483 | aa-ag/01 | 1 |
| 070 | 2A2346CL2 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0300 | aa/03 | 1 | |
| 070A | 2A3062CL2 | • • PIN - STRAIGHT, HEADLESS POST SBE70-0300 PRE SBE70-0823 | ab-ad/03 | 1 | |
| 070B | 2A3062CL2 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0823 | aa-ad/04 | 1 | |
| 070C | X | 2A3062CL2 | • • PIN - STRAIGHT, HEADLESS POST SBE72-0483 | aa-ag/01 | 1 |
| 072 | 2A2346CL3 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0300 | aa/03 | 1 | |
| 072A | 2A3062CL3 | • • PIN - STRAIGHT, HEADLESS POST SBE70-0300 PRE SBE70-0823 | ab-ad/03 | 1 | |
| 072B | 2A3062CL3 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0823 | aa-ad/04 | 1 | |
| 072C | X | 2A3062CL3 | • • PIN - STRAIGHT, HEADLESS POST SBE72-0483 | aa-ag/01 | 1 |
| 074 | 2A2346CL4 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0300 | aa/03 | 1 | |
| 074A | 2A3062CL4 | • • PIN - STRAIGHT, HEADLESS POST SBE70-0823 PRE SBE70-0823 | ab-ad/03 | 1 | |
| 074B | 2A3062CL4 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0823 | aa-ad/04 | 1 | |
| 074C | X | 2A3062CL4 | • • PIN - STRAIGHT, HEADLESS POST SBE72-0483 | aa-ag/01 | 1 |
| 076 | 2A2346P3 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0300 | aa/03 | 1 | |
| 076A | 2A3062P3 | • • PIN - STRAIGHT, HEADLESS POST SBE70-0300 PRE SBE70-0823 | ab-ad/03 | 1 | |
| 076B | 2A3062P3 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0823 | aa-ad/04 | 1 | |
| 076C | X | 2A3062P3 | • • PIN - STRAIGHT, HEADLESS POST SBE72-0483 | aa-ag/01 | 1 |
| 078 | 2A2346P5 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0300 | aa/03 | 1 | |
| 078A | 2A3062P5 | • • PIN - STRAIGHT, HEADLESS POST SBE70-0300 PRE SBE70-0823 | ab-ad/03 | 1 | |
| 078B | 2A3062P5 | • • PIN - STRAIGHT, HEADLESS PRE SBE70-0823 | aa-ad/04 | 1 | |
| 078C | X | 2A3062P5 | • • PIN - STRAIGHT, HEADLESS POST SBE72-0483 | aa-ag/01 | 1 |
| 080 | 2A1701 | • SEAL - HPT, 1ST STAGE PRE SBE72-0562 | aa-ag/03 | 38 | |
| 080A | 2A1701 | • SEAL - HPT, 1ST STAGE PRE SBE72-0562 | aa-ah/04 | 38 | |
| 080B | 2A4106 | • SEAL - HPT, 1ST STAGE POST SBE72-0562 | ah/07 | 38 | |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | |||||

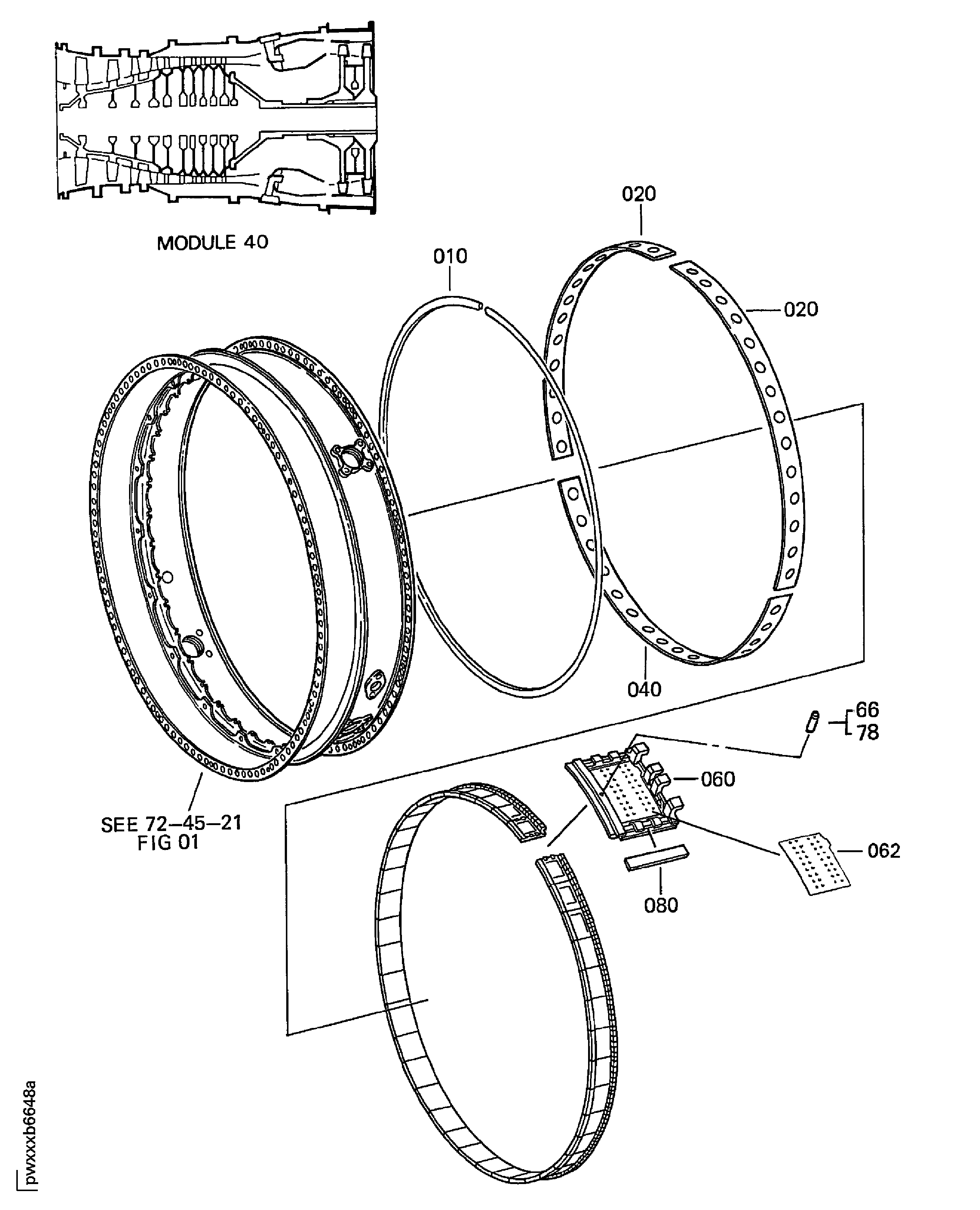

Figure: ENGINE-STAGE 1 HPT DUCT SEGMENT
ENGINE-STAGE 1 HPT DUCT SEGMENT
