DMC:V2500-A5-72-45-25-01A-941A-DIssue No:002.00Issue Date:2015-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A5
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72452501 | ENGINE-STAGE 2 HPT DUCT SEGMENT, PRE SBE72-0310 | aa | ||
| SBE0310-01 | ENGINE-STAGE 2 HPT DUCT SEGMENT, PRE SBE72-0364 | ab | ||
| SBE0364-01 | ENGINE-STAGE 2 HPT DUCT SEGMENT, PRE SBE72-0634 | ac | ||
| SBE0634-01 | ENGINE-STAGE 2 HPT DUCT SEGMENT | ad | ||
| 010 | 2A2374 | • GASKET ALT 2A2276 | aa-ac | 1 |
| -010A | 2A2276 | • GASKET ALT 2A2111 | aa-ac | REF |
| -010B | 2A2111 | • GASKET ALT 2A2374 | aa-ac | REF |
| 020 | 2A1655-01 | • BAND - SEG HPT, STAGE 2-ASSY OF PRE SBE72-0364 | aa-ab | 2 |
| 020A | 2A3412-01 | • BAND - SEG,HPT,2 STG,ASYO POST SBE72-0364 | ac | 2 |
| 040 | 2A1663-01 | • BAND - SEG HPT, STAGE 2-ASSY OF PRE SBE72-0364 | aa-ab | 1 |
| 040A | 2A3414-01 | • BAND - SEG,HPT,2 STG,ASYO POST SBE72-0364 | ac | 1 |
| 060 | 2A1606 | • DUCT - SEG HPT, STAGE 2 PRE SBE72-0310 | aa | 19 |
| 060A | 2A3363 | • DUCT POST SBE72-0310 PRE SBE72-0364 | ab | 19 |
| 060B | 2A3393 | • DUCT - SEG,HPT 2 STG POST SBE72-0364 | ac | 38 |
| 060C | 2A3393 | • DUCT - SEG,HPT 2 STG PRE SBE72-0634 | aa-ac | 38 |
| 060D | 2A4360 | • DUCT - SEG,HPT 2 STG POST SBE72-0634 | ad | 38 |
| 080 | 2A2149 | • SEAL - HPT DUCT STAGE 2 PRE SBE72-0364 | aa-ab | 19 |
| 080A | 2A3447 | • SEAL - 2STG HPT DUCT POST SBE72-0364 | ac | 38 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

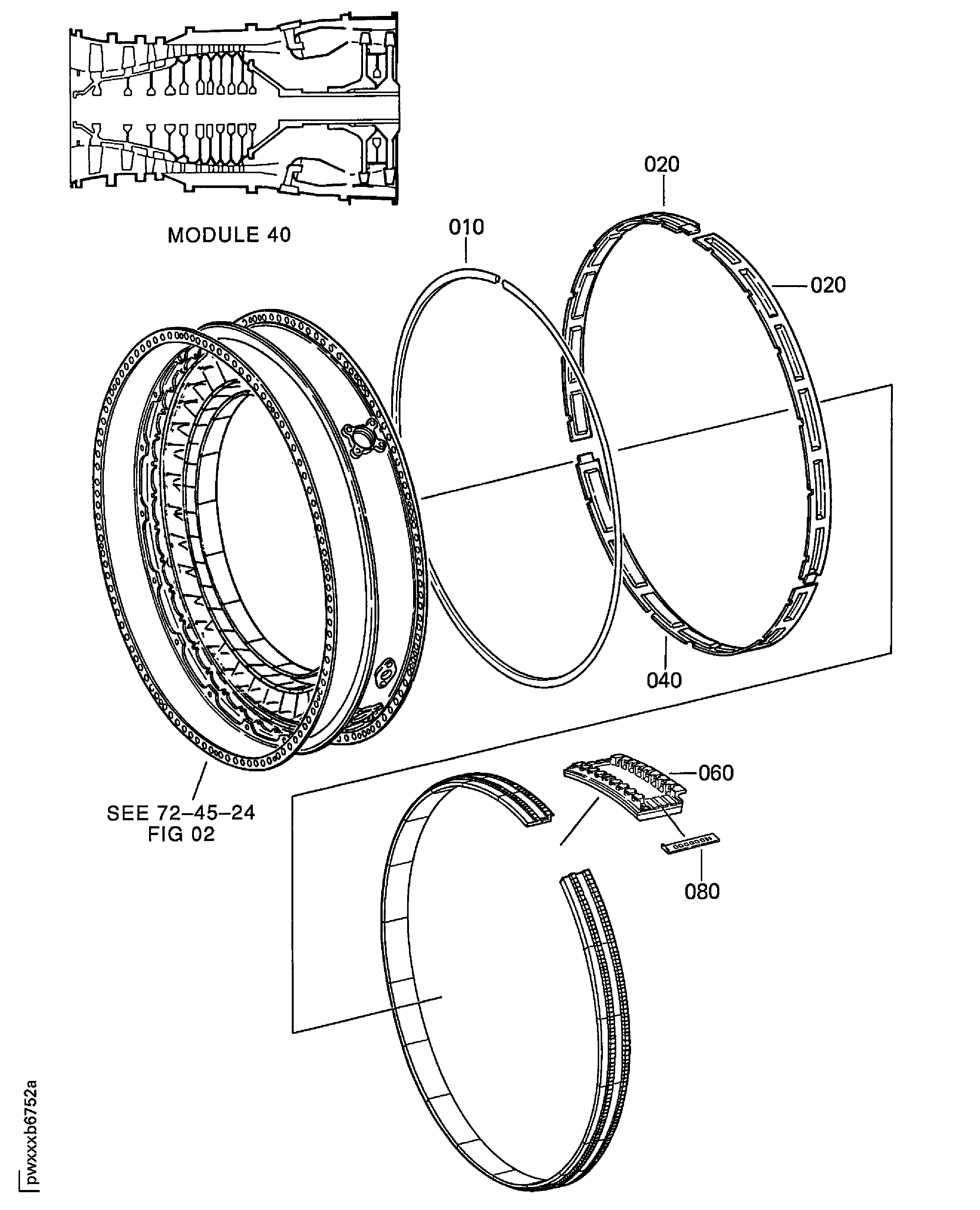

Figure: ENGINE-STAGE 2 HPT DUCT SEGMENT
STAGE 2 HPT DUCT SEGMENT
