| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72452601 | ENGINE-SECOND STAGE HPT DUCT SUPPORT, PRE SBE72-0364 | aa | ||
| SBE0364-01 | ENGINE-SECOND STAGE HPT DUCT SUPPORT | ab | ||
| 010 | 2A2374 | • GASKET ALT 2A2276 | aa-ab | 1 |
| -010A | 2A2276 | • GASKET ALT 2A2111 | aa-ab | REF |
| -010B | 2A2111 | • GASKET ALT 2A2374 | aa-ab | REF |
| 020 | 2A1653 | • SUPPORT - A/O HPT DUCT,STAGE 2 PRE SBE72-0364 | aa | 19 |
| 020A | 2A3408 | • SUPPORT - HPT DUCT,2STG,ASYO POST SBE72-0364 | ab | 19 |
| 042 | 2A1268CL1 | • • PIN - SHOULDER,HEADLESS PRE SBE72-0364 | aa | 1 |
| 042A | 2A1268CL1 | • • PIN POST SBE72-0364 | ab | 2 |
| 044 | 2A1268CL2 | • • PIN - SHOULDER,HEADLESS PRE SBE72-0364 | aa | 1 |
| 044A | 2A1268CL2 | • • PIN POST SBE72-0364 | ab | 2 |
| 046 | 2A1268CL3 | • • PIN - SHOULDER,HEADLESS PRE SBE72-0364 | aa | 1 |
| 046A | 2A1268CL3 | • • PIN POST SBE72-0364 | ab | 2 |
| 048 | 2A1268CL4 | • • PIN - SHOULDER,HEADLESS PRE SBE72-0364 | aa | 1 |
| 048A | 2A1268CL4 | • • PIN POST SBE72-0364 | ab | 2 |
| 050 | 2A1268P3 | • • PIN - SHOULDER HEADLESS 77445 PRE SBE72-0364 | aa | 1 |
| 050A | 2A1268P3 | • • PIN 77445 POST SBE72-0364 | ab | 2 |
| 054 | 2A1268P5 | • • PIN - SHOULDER,HEADLESS 77445 PRE SBE72-0364 | aa | 1 |
| 054A | 2A1268P5 | • • PIN 77445 POST SBE72-0364 | ab | 2 |
| 060 | 2A0319 | • SEAL - HPT DUCT SPRT,STAGE 2 | aa-ab | 19 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

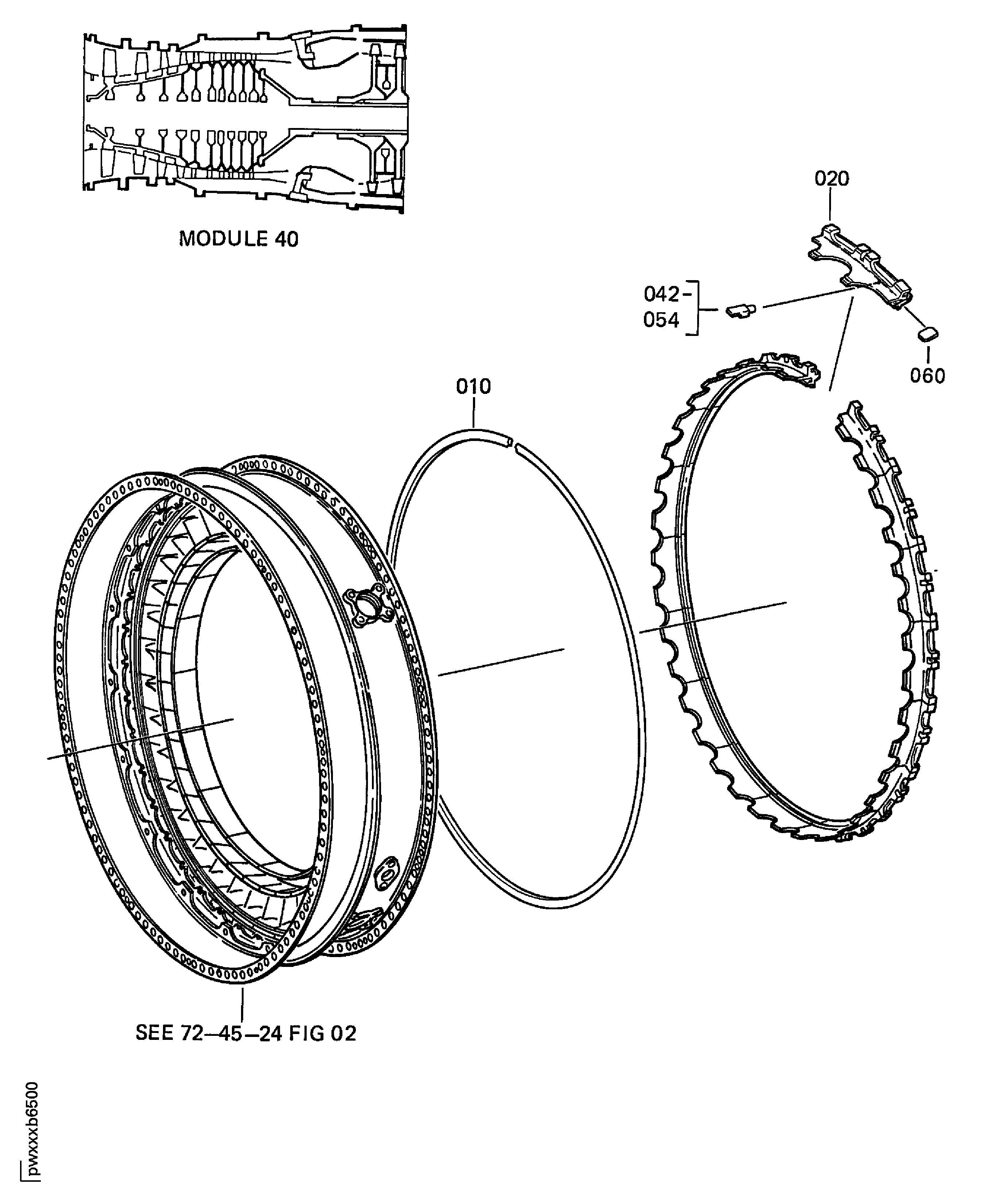

Figure: ENGINE-SECOND STAGE HPT DUCT SUPPORT
STAGE 2 HPT DUCT SUPPORT
